- Page 1 English Operating manual Photo-radiometer HD2302.0 www.deltaohm.com Keep for future reference.
-
Page 2: Table Of Contents
INDEX GENERAL CHARACTERISTICS ................. 3 DESCRIPTION OF THE FUNCTIONS..............6 PROBES AND MEASUREMENTS ............... 8 LP471P-A ................9 OMBINED PROBE LP471A-UV ................ 9 OMBINED PROBE LP471PYRA10 - LP471PYRA02 – LP471PYRA03......... 9 ROBES LP471SILICON-PYRA ................9 ROBE INSTRUMENT SIGNALS AND FAULTS ............10 LOW BATTERY WARNING AND BATTERY REPLACEMENT ...... -
Page 3: General Characteristics

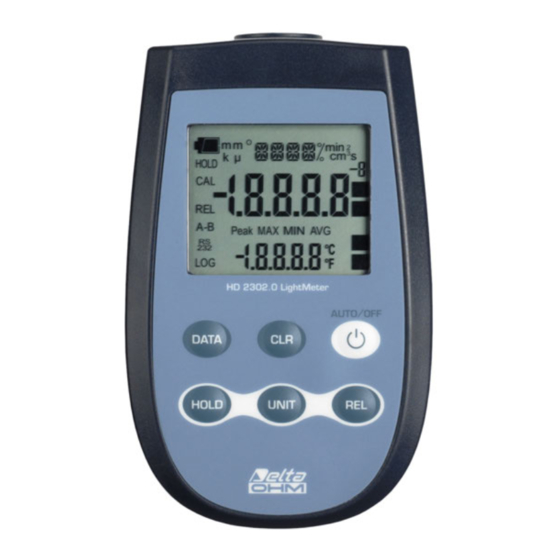

GENERAL CHARACTERISTICS The Photo-Radiometer HD2302.0 is a portable instrument, fitted with a large LCD display for visualization of the measured data. It measures: • illuminance; • luminance; • PAR; • irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or in the measured effective irradiance according to the UV action curve). - Page 4 Photo-Radiometer HD2302.0 HD2302 V1.10...
- Page 5 HD2302.0 1. Input for probes, 8-pole DIN45326 connector. 2. Battery symbol: displays the battery charge level. 3. Function indicators. 4. Secondary display line. 5. DATA key: displays the maximum (MAX), the minimum (MIN) and the average (AVG) of current measurements.
-
Page 6: Description Of The Functions
DESCRIPTION OF THE FUNCTIONS The Photo-Radiometer Model HD2302.0 keyboard is composed of single-function keys, except the ON-OFF/Auto-OFF key that has two functions (see the description of the key below). The pressing of a key is accompanied by a short confirmation "beep": a longer "beep"... - Page 7 CLR key It resets the maximum, average, and minimum value of the captured measurements. DATA key By pressing this key once the maximum (MAX) value of the measurements captured by the probe connected to the instrument is displayed, updating it with the acquisition of new samples.
-
Page 8: Probes And Measurements
PROBES AND MEASUREMENTS The instrument works with probes of the LP471… series: these are photometric and radiometric probes that measure: • illuminance (LP471PHOT), • irradianace (LP471RAD, LP471UVA, LP471UVB, LP471UVC and LP471UVBC), • PAR (LP471PAR and LP471PAR02), • luminance (LP471LUM2), • effective irradiance in the spectral range of blue light (LP471BLUE), •... -
Page 9: Combined Probe Lp471P-A
LP471P-A OMBINED PROBE LP471P-A is a two sensors combined probe with SICRAM module for measuring illuminance (lux) with standard photopic spectral response and irradiance (μW/cm in UVA spectral range (315...400 nm, with peak at 365 nm). The probe also provides the ratio of UVA irradiance and illuminance in µW/lumen (quantity of interest in the museums field). -
Page 10: Instrument Signals And Faults
INSTRUMENT SIGNALS AND FAULTS The following table lists all of the indications displayed by the instrument in different operating and error situations. Display indications Description Indication of insufficient battery charge: it appears when you BATT TOO LOW turn the instrument on. The instrument issues a long beep and CHNG NOW turns off. -
Page 11: Low Battery Warning And Battery Replacement
LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties". When the charge decreases still further it starts blinking. In this case, batteries should be replaced. If you continue to use it, the instrument can no longer ensure correct measurement. -
Page 12: Warnings
WARNINGS 1. Do not bend the probe connectors or force them upward or downward. 2. Do not bend or force the contacts when inserting the probe connector into the instrument. 3. The sensors and filters should not exceed the temperature limits established with consequent irreparable degradation of their characteristics. -
Page 13: Safety Instructions
SAFETY INSTRUCTIONS Authorized use The technical specifications as given in chapter TECHNICAL SPECIFICATIONS must be observed. Only the operation and running of the measuring instrument according to the instructions given in this operating manual is authorized. Any other use is considered unauthorized. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS ECHNICAL SPECIFICATIONS OF THE HOTO ADIOMETER Instrument Dimensions (length x width x height) 140 x 88 x 38 mm Weight 160 g (complete with batteries) Material Display 2x4½ digits plus symbols Visible area: 52 x 42 mm Operating conditions Operating temperature -5…+50 °C Warehouse temperature... -
Page 15: Technical Specifications Of Probes In Line With The Instrument
ECHNICAL SPECIFICATIONS OF PROBES IN LINE WITH THE INSTRUMENT For the spectral response curves of the LP471… probes, see the probes datasheet available on the Delta OHM website. LP471PHOT - Illuminance probe, with SICRAM module. Measurement range (lux) 0.10…199.99 …1999.9 …19999 …199.99x10 Resolution (lux) - Page 16 LP471RAD - Irradiance probe, with SICRAM module. Measurement range (W/m 1x10 …999.9x10 1.000…19.999 20.00…199.99 200.0…1999.9 Resolution (W/m 0.1x10 0.001 0.01 Spectral range 400 nm…1050 nm Calibration uncertainty <5% (response according to the <6% cosine law) (linearity) <1% (instrument reading error) ±1digit (fatigue) <0.5%...
- Page 17 LP471UVBC - UVBC Irradiance probe, with SICRAM module. Measurement range(W/m 1x10 …999.9x10 1.000…19.999 20.00…199.99 200.0…1999.9 Resolution (W/m 0.1x10 0.001 0.01 Spectral range 210 nm…355 nm (Peak 265 nm) Calibration uncertainty <7% (Calibration @ 254 nm) (linearity) <2% (instrument reading error) ±1digit (fatigue) <0,5%...
- Page 18 LP471SILICON-PYRA - Probe for the measurement of global solar irradiance, with SICRAM module. Measurement range (W/m 0…999.9x10 1.000…19.999 20.00…199.99 200.0…1999.9 Resolution (W/m 0.1x10 0.001 0.01 Spectral range 400 nm…1100 nm Calibration uncertainty <3% (response according to the <3% cosine law) (linearity) <1% (instrument reading error)
-
Page 19: Probes And Accessories Ordering Codes
PROBES AND ACCESSORIES ORDERING CODES LP471PHOT Photometric probe for the measurement of illuminance, with SICRAM module, spectral response according to standard photopic vision, diffuser for cosine correction. Measuring range: 0.1…200x10 lux. Cable length 1.5 m. LP471RAD Radiometric probe for the measurement of irradiance in the spectral range 400…1050 nm, with SICRAM module, diffuser for cosine correction. - Page 20 the ratio between UV irradiance and illuminance in µW/lumen. With SICRAM module and 1.5 m cable. LP471A-UVeff Combined probe for the measurement of effective total irradiance according to UV action curve (250…400 nm). Diffuser for cosine correction. The probe provides the effective total irradiance (E ), the effective irradiance in the UV-CB band and UV irradiance.
- Page 21 Notes HD2302 V1.10...
- Page 22 Notes HD2302 V1.10...
- Page 24 In case of discrepancies and/or inconsistencies, please write to sales@deltaohm.com. Delta OHM reserves the right to change technical specifications and dimensions to fit the product requirements without prior notice.
