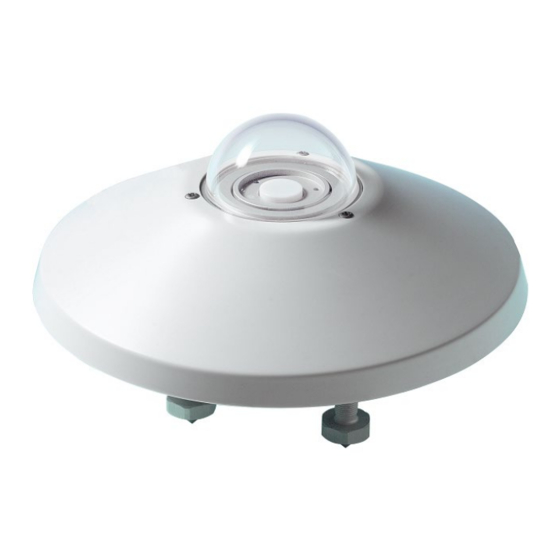

- Page 1 English Operating manual UVB Radiometer LPUVB02 www.deltaohm.com Keep for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................3 WORKING PRINCIPLE ................... 4 INSTALLATION ..................... 5 ELECTRICAL CONNECTIONS .................. 8 MEASUREMENT ..................... 9 MAINTENANCE ....................10 TECHNICAL SPECIFICATIONS ................11 SAFETY INSTRUCTIONS ..................12 ACCESSORIES ORDERING CODES ............... 13 LPUVB02 V2.0... -
Page 3: Introduction
INTRODUCTION The LPUVB02 radiometer measures the global irradiance in the UVB spectral range on a flat surface (W/m ). In particular, the instrument spectral sensitivity is centred at 304 nm with a 5 nm bandwidth (FWHM - Full Width at Half Maximum). -
Page 4: Working Principle
Fig. 2.1 Fig. 2.2 The LPUVB02 is provided with a 50 mm external diameter dome in order to supply a suitable protection of the sensor to the weather agents. Quartz was chosen due to its optimum transmission in the UV range. -
Page 5: Installation
10. The radiometer is ready for use. The following picture shows the operations necessary to fill the cartridge with the sili- ca-gel crystals. Silica-gel cartridge Sealed sachet of sili- ca-gel crystals Perforated cap Filling Closing the cartridge Fig. 3.1: filling the silica-gel cartridge LPUVB02 V2.0... - Page 6 • It is preferably to thermally insulate the radiometer from its mounting bracket en- suring, at the same time, a good electrical contact to ground. Fixing holes ∅ 6 mm Levelling device Fig. 3.2: fixing holes and levelling device LPUVB02 V2.0...
- Page 7 Fig. 3.3: fixing accessories LPUVB02 V2.0...
-
Page 8: Electrical Connections
4 ELECTRICAL CONNECTIONS LPUVB02 has a 8-pole connector and uses the CPM12AA8U... optional cables. The metallic housing of the radiometer should preferably be grounded ( ) locally. In this case, do not connect the wire of the cable corresponding to the housing to prevent ground loops. -
Page 9: Measurement
"Source of Error in UV Radiation Measurements", T. C. Larason, C. L. Cromer issued in the "Journal of Research of the National Institute of Standards and Technol- ogy" Vol. 106, Num. 4, 2001 (The article is available free of charge on the NIST web site at the following address: https://nvlpubs.nist.gov/nistpubs/jres/106/4/j64lar.pdf). LPUVB02 V2.0... -
Page 10: Maintenance
Read instructions at chapter 3 about how to replace the silica-gel crystals. Silica-gel typical lifetime goes from 2 to 6 months depending on the environment where the radiometer works. To exploit all the radiometer features, it is highly recommended that the calibration be checked annually. LPUVB02 V2.0... -
Page 11: Technical Specifications
<±3 % Non linearity <1 % Response according to temperature < 0.01%/°C TEMPERATURE MEASUREMENT Measurement range -40 °C…+60 °C Accuracy ±0.2 °C Min. load impedance 10 KΩ POWER SUPPLY 7…30 Vdc Typical consumption 3 mA Weight 0.90 Kg LPUVB02 V2.0... -
Page 12: Safety Instructions
• User obligations The instrument operator shall follow the directives and regulations below that refer to the treatment of dangerous materials: EEC directives on workplace safety. • National law regulations on workplace safety. • Accident prevention regulations. • LPUVB02 V2.0... -
Page 13: Accessories Ordering Codes
ACCESSORIES ORDERING CODES LPUVB02 Amplified radiometric probe for outdoor use for measuring IRRA- DIANCE in the UVB spectral range. Supplied with shade disk, syli- ca-gel cartridge, 2 spare sachets, bubble level, 8-pole M12 con- nector and Calibration Report. Accessories CPM12AA8U…... - Page 14 LPUVB02 V2.0...
- Page 16 In case of discrepancies and/or inconsistencies, please write to sales@deltaohm.com. Delta OHM reserves the right to change technical specifications and dimensions to fit the product requirements without prior notice.
