Summary of Contents for DeltaOHM HD2124.1
-
Page 1: Operating Manual
English Operating manual Manometers / thermometers HD2124.1 – HD2124.2 Companies / Brands of GHM www.deltaohm.com Keep for future reference. -
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................3 INPUTS CONFIGURATION AND DISPLAY ......................8 KEYBOARD AND MENU DESCRIPTION ......................9 THE PROBES ................................15 PP471 ......................15 MODULE FOR PRESSURE MEASUREMENT Pt100 ...........................16 TEMPERATURE PROBE How to measure ..............................16 Instructions to connect the TP47 connector for 4-wire Pt100 ................16 Direct connection of 4-wire Pt100 sensors ......................17 WARNINGS AND OPERATING INSTRUCTIONS ....................18 INSTRUMENT SIGNALS AND FAULTS ......................19... -
Page 3: Introduction

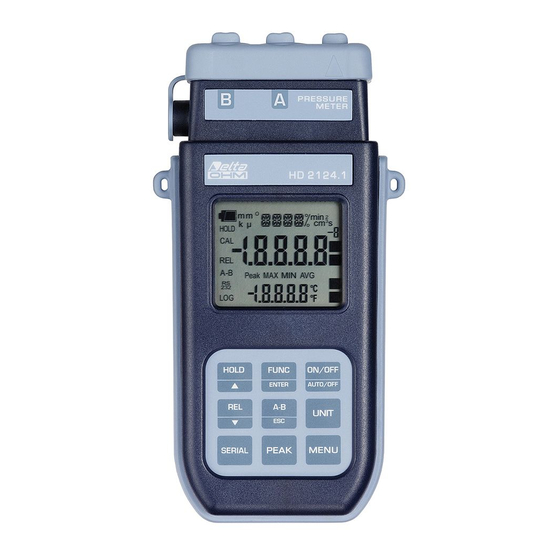

The HD2124.1 and HD2124.2 models are fitted with an RS232C serial port and can transfer the acquired measurements in real time to a PC or to a portable printer. - Page 4 Manometer - Thermometer HD2124.1 - 4 - HD2124 V2.5...
- Page 5 HD2124.1 1. Input A, 8-pole DIN45326 connector. It is possible to connect: the PP471 extension cable for TP704 and TP705 pressure probes or a Pt100 temperature probe fitted with SICRAM module or 4-wire Pt100 probe. 2. Input B, 8-pole DIN45326 connector. It is possible to connect: the PP471 extension cable for TP704 and TP705 pressure probes or a Pt100 temperature probe fitted with SICRAM module or 4-wire Pt100 probe.
- Page 6 Manometer - Thermometer HD2124.2 - 6 - HD2124 V2.5...
- Page 7 HD2124.2 1. Input A, 8-pole DIN45326 connector. It is possible to connect: the PP471 extension cable for TP704 and TP705 pressure probes or a Pt100 temperature probe fitted with SICRAM module or 4-wire Pt100 probe. 2. Input B, 8-pole DIN45326 connector. It is possible to connect: the PP471 extension cable for TP704 and TP705 pressure probes or a Pt100 temperature probe fitted with SICRAM module or 4-wire Pt100 probe.
-
Page 8: Inputs Configuration And Display
INPUTS CONFIGURATION AND DISPLAY The HD2124.1 and HD2124.2 are instruments with two pressure and temperature inputs. To measure pressure, the PP471 SICRAM module is used with one of the Delta Ohm TP704 or TP705 probes. The temperature is measured using Pt100 probes fitted with SICRAM module or 4-wire Pt100 probes. -
Page 9: Keyboard And Menu Description
KEYBOARD AND MENU DESCRIPTION Foreword The instrument keyboard is composed of single-function keys, like the UNIT key, and double- function keys such as the ON-OFF/Auto-OFF key. In the double-keys, the function in the upper part is the “main function”, while the one in the bottom part is the “secondary function”. - Page 10 disabled by holding the HOLD key pressed down when turning the instrument on: the battery symbol will blink to remind the user that the instrument can only be turned off by pressing the <ON/OFF> key. The automatic turning off function is disabled when external power is used. On the other hand, it cannot be disabled when the batteries are discharged.
- Page 11 When used in the menu, it decreases the current variable value. MENU key - only HD2124.1 PEAK/MENU key - only HD2124.2 The first menu item is accessed by initially pressing on the MENU key (FUNC/ENTER + PEAK/MENU in the HD2124.2 model);...
- Page 12 • In the absolute pressure probes, apply the vacuum by using a suitable pressure calibrator. The "PRES_REL_TO_ZERO ENTR_TO_MENU" message appears: press REL to zero the pressure or press ENTER to access other menu items. Press A/B – ESC to toggle from one channel to the other: the zero is still applied to both A and B channels.
- Page 13 PEAK key - only HD2124.1 PEAK/MENU key - only HD2124.2 The PEAK (HD2124.1) or PEAK/MENU (HD2124.2) keys enable the pressure peak measurement circuit. When two probes are present, use the A/B key to move from one channel to the other.
- Page 14 “>>>_LOG_DUMP_or_ERAS” item, and then press on the LOG/DumpLOG key. Please see the paragraph dedicated to data transfer on page 25. SERIAL key - only HD2124.1 SERIAL/EraseLOG key - only HD2124.2 In measurement mode, this function starts and stops the data transfer to the RS232C serial output.
-
Page 15: The Probes
THE PROBES The instrument measures absolute, relative and differential pressure using the PP471 SICRAM module and the TP704 and TP705 series probes. It also measures the temperature with a Pt100 sensor fitted with SICRAM module or 4-wire Pt100 probes. The SICRAM module acts as an interface between the sensor on the probe and the instrument. There is a microprocessor circuit with a permanent memory inside the module that enables the datalogger to recognize the type of probe connected and to read its calibration information. -
Page 16: Pt100 Temperature Probe
(do not use water or solvents). This method also improves the response time. Instructions to connect the TP47 connector for 4-wire Pt100 All probes produced by Delta Ohm are provided with a connector. The HD2124.1 and HD2124.2 instruments also work with 4-wire direct Pt100 probes manufactured by other producers: for the instrument connection is prescribed the TP47 connector to which the probe's wires should be welded. -
Page 17: Direct Connection Of 4-Wire Pt100 Sensors
Open the two module shells: the printed circuit to which the probe must be connected is housed inside. On the left there are the 1…4 points on which the sensor wires must be welded. The JP1…JP4 jumpers are in the center of the board. For the 4-wire Pt100 sensor the jumpers must be left open. -
Page 18: Warnings And Operating Instructions
WARNINGS AND OPERATING INSTRUCTIONS 1. Do not expose the probes to gases or liquids that could corrode the material of the sensor or the probe itself. Clean the probe carefully after each measurement. Some pressure probe models are suitable for measurement of non corrosive gases or air and dry and not liquid only: check the membrane compatibility with the plant fluid. -
Page 19: Instrument Signals And Faults
INSTRUMENT SIGNALS AND FAULTS The following table lists all error indications and information displayed by the instrument and supplied to the user in different operating situations. Display indications Explanation This appears if the SICRAM module connected to input A, has CH_A COMM LOST already been detected by the instrument, but is disconnected. - Page 20 The following table reports the indications provided by the instrument as they appear on the display, together with their description. Display indications Explanation ### BAR ABS probe ###bar absolute ### BAR DIFF probe ###bar differential probe ###bar relative ### BAR GAUG probe ###bar relative compared to 1 bar ### BAR SG ### mBAR ABS...
-
Page 21: Low Battery Warning And Battery Replacement
LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol on the display constantly shows the battery charge status. To the extent that batteries have discharged, the symbol "empties". When the charge decreases still further it starts blinking… In this case, batteries should be replaced as soon as possible. If you continue to use it, the instrument can no longer ensure correct measurement. -
Page 22: Instrument Storage
ALFUNCTIONING UPON TURNING ON AFTER BATTERY REPLACEMENT After replacing the batteries, the instrument may not restart correctly; in this case, repeat the operation. After disconnecting the batteries, wait a few minutes in order to allow circuit condensers to discharge completely; then reinsert the batteries. ARNING ABOUT BATTERY USE •... -
Page 23: Serial Interface And Usb
SERIAL INTERFACE AND USB The HD2124.1 and HD2124.2 instruments are fitted with an electrically isolated RS-232C serial interface; the HD2124.2 also has an USB 2.0 interface. The following serial cables can be used: • HD2110CSNM: serial connection cable with 8-pole MiniDin connector on one end and 9-pole Sub D connector on the other end;... - Page 24 Command Response Description M=PRESSURE Model description SN=12345678 Instrument serial number Firm.Ver.=01-00 Firmware version Firm.Date=2004/06/15 Firmware date cal 0000/00/00 00:00:00 Calibration date and time Probe=Sicram Pressure Type of probe connected to input 1 Probe SN=11119999 Probe 1 serial number Probe cal.=2004/01/12 Probe 1 calibration date User ID=0000000000000000 User code (set with T2xxxxxxxxxxxxxxxx)
-
Page 25: Storing And Transferring Data To A Personal Computer
STORING AND TRANSFERRING DATA TO A PERSONAL COMPUTER The HD2124.1 and HD2124.2 instruments can be connected to a personal computer via an RS232C serial port or USB 2.0 port, and exchange data and information through the DeltaLog9 software running in a Windows operating environment. Both models can send in real time input measured values directly to a PC, through the PRINT function;... -
Page 26: The Print Function
• The same is true for the Max-Min-Avg function. • If the logging is started when the display is in REL mode, the relative values are logged. • If the logging is started when the display is in Peak mode, the peak values are logged, provided that the logging interval is equal to 1 second. -
Page 27: Connection To A Pc
CONNECTION TO A PC HD2124.1 Connection to the PC with the cable: • HD2110CSNM: 8-pole MiniDin connector on one end and 9-pole Sub D connector on the other end; • C.206: 8-pole MiniDin connector on one end and USB type A connector on the other end. -
Page 28: Notes About Working And Operative Safety
NOTES ABOUT WORKING AND OPERATIVE SAFETY Authorized use The technical specifications as given in chapter "TECHNICAL CHARACTERISTICS" must be observed. Only the operation and running of the measuring instrument according to the instructions given in this operating manual is authorized. Any other use is considered unauthorized. General safety instructions This measuring system is constructed and tested in compliance with the EN 61010-1:2010 safety regulations for electronic measuring instruments. -
Page 29: Instrument Technical Characteristics
INSTRUMENT TECHNICAL CHARACTERISTICS Instrument Dimensions (Length x Width x Height) 185x90x40mm Weight 470g (complete with batteries) Materials ABS, rubber Display 2x4½ characters plus symbols Visible area: 52x42mm Operating conditions Operating temperature -5…50°C Warehouse temperature -25…65°C Working relative humidity 0…90%RH without condensation Protection degree IP66 Power Supply... - Page 30 USB interface - model HD2124.2 Type 1.1 - 2.0 electrically isolated Connections Input module for the probes 2 8-pole male DIN45326 connectors RS232 serial interface 8-pole MiniDin connector USB interface (only HD2124.2) Mini-USB type B connector Mains adapter (cod. SWD10) 2-pole connector (positive at centre) Temperature measurement Pt100 measurement range...
-
Page 31: Technical Data Of Probes And Modules In Line With The Instrument
ECHNICAL DATA OF PROBES AND MODULES IN LINE WITH THE INSTRUMENT PP471 EASUREMENT OF PRESSURE BY MODULE All TP704 and TP705 series Delta Ohm probes can be connected to the PP471 module. For the technical characteristics of the single probes, see the table below. Technical characteristics Precision ±0.05% of bottom scale... -
Page 32: Temperature Probes Pt100 Using Sicram Module
Pt100 SICRAM EMPERATURE PROBES USING MODULE Model Type Application range Accuracy ±0.25°C (-196°C…+300°C) Immersion -196°C…+500°C TP472I ±0.5°C (+300°C…+500°C) TP472I.0 Immersion -50°C…+300°C ±0.25°C 1/3 DIN – Thin Film ±0.25°C (-50°C…+300°C) TP473P.I Penetration -50°C…+400°C ±0.5°C (+300°C…+400°C) TP473P.0 Penetration -50°C…+300°C ±0.25°C 1/3 DIN - Thin Film TP474C.0 Contact -50°C…+300°C... -
Page 33: Order Codes
ORDER CODES HD2124.1 Kit including the instrument HD2124.1, 4 x 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. The probes, the SICRAM interface module PP471 and the cables must be ordered separately. HD2124.2 Kit including the instrument HD2124.2 datalogger, 4 x 1.5V alkaline batteries, operating manual, case and DeltaLog9 software. - Page 34 TP472I.10 Immersion probe, sensor Pt100. Stem Ø 6 mm, length 1000 mm. Cable length 2 metres. TP49A.I Immersion probe, sensor Pt100. Stem Ø 2.7 mm, length 150 mm. Cable length 2 metres. Aluminium handle. TP49AC.I Contact probe, sensor Pt100. Stem Ø 4 mm, length 150 mm. Cable length 2 metres.
-
Page 36: Serial Number
This guarantee must be sent together with the instrument to our service centre. IMPORTANT: Guarantee is valid only if coupon has been correctly filled in all details. HD2124.1 HD2124.2 Instrument Code:... - Page 37 Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com The quality level of our instruments is the result of the constant development of the product. This may produce some differences between the information written in this manual and the instrument you have purchased.
- Page 38 GHM GROUP – Delta OHM | Delta Ohm S.r.l. a socio unico Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com V2.5 28/08/2017...
