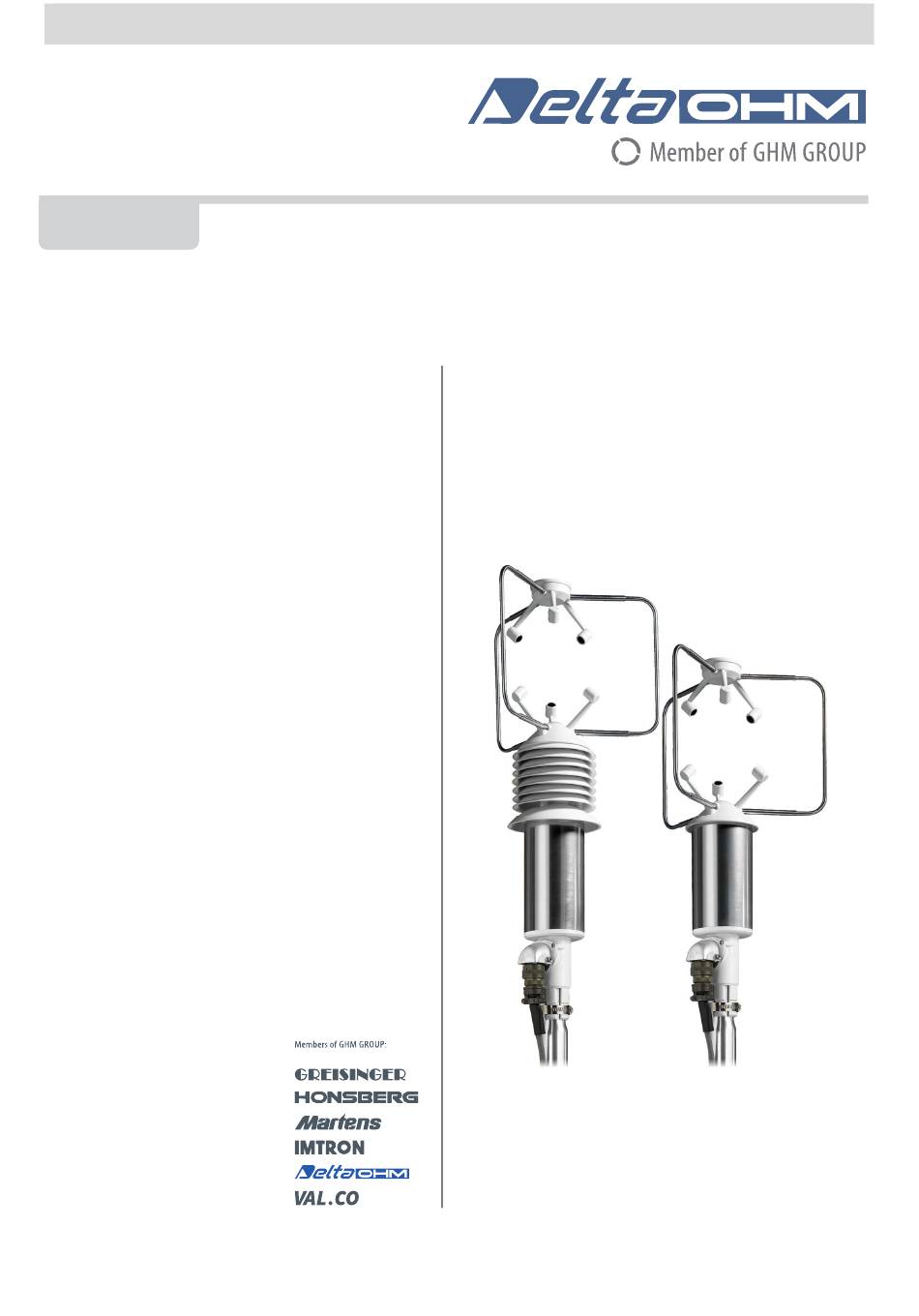

  • Page 1      English Operating manual 3-axis ultrasonic anemometers HD2003 – HD2003.1 Companies / Brands of GHM www.deltaohm.com Keep for future reference.
  • Page 2: Table Of Contents

    1.2.1. Heaters Option 1.2.2. RS422 Option 1.3. Features 1.4. Operating Modes 1.5. Specifications 1.6. (HD2003 Model) Pressure - Temperature – Relative Humidity Sensors 2. Installation and Maintenance 2.1. Packaging 2.2. Mounting and Positioning 2.3. Alignment 2.4. Electrical Connections 2.4.1. Power Supply and Earthing 2.4.2.
  • Page 3: Introduction

    The angle is calculated from 0° to 360° clockwise along the Horizontal Plane. The origin 0° is the direction of Geographical North. The HD2003 built-in integrated compass measures the magnetic azimuth, with reference to Magnetic North.
  • Page 4: Models

    The code HD2003 mentioned in this manual refers to both models: HD2003 HD2003.1 They represent the same kind of Anemometer, except for the fact that the HD2003 has the following built-in sensors: Pressure, Temperature, Relative Humidity, in order to measure these additional output quantities.
  • Page 5: Rs422 Option

    Determination of anemometric quantities with different units of measurement: wind speed and direction, U-V-W Cartesian components, wind gust, sonic speed and temperature. ♦ (HD2003 Model) Additional quantities measured: pressure, temperature, relative humidity. ♦ 5 analog outputs in current or voltage, with different ranges.
  • Page 6 A network with ModBus RTU protocol over the RS485 line can be established, with a Master (typically the PC or PLC) and one or more HD2003 anemometers together with other sensors, all operating as Slave unit. Or a RS485 Multidrop network can be established between a Host Computer and several HD2003 or HD52.3D anemometers (up to 32).
  • Page 7: Specifications

    PECIFICATIONS Output quantities Anemometric Wind speed and direction, U-V-W components, wind gust, sound speed, sonic temperature Meteorological (HD2003 Model) Pressure, Temperature, Relative Humidity Heading Compass with magnetic azimuth Wind Speed Unit m/s, cm/s, km/h, knots, mph Range 0 ÷ 70 m/s (252 km/h) Resolution 0.01 m/s...
  • Page 8 – R (HD2003 M RESSURE EMPERATURE ELATIVE UMIDITY ENSORS ODEL Pressure. Piezoresistive Sensor Analog Output: 0-20mA, 4-20mA, 0÷1V, 0÷5V, 0÷10V, 1÷5V Analog Output Extended (AoXnd): 0-20mA, 4-20mA, 0÷5V, 0÷10V Range: 600 ÷ 1100 mbar Resolution: 0.1 mbar Accuracy: ± 0.4 mbar @ 20 °C Temperature Effects: ±...
  • Page 9: Installation And Maintenance

    10 times the relevant height. LIGNMENT DWG1HD2003 RAWING PAGE RIENTATION If the HD2003 is rotated on its vertical axis, it can be fixed in any other angular position. The HD2003 built-in magnetoresistive sensor allows automatically...
  • Page 10 The earth connection is fundamental to protect against electromagnetic disturbances. The HD2003 is installed on a metallic pole fixed to the ground that must be earthed. Connect the metallic structure of the pole to the earthing screw provided near the HD2003 connector (see Drawing DWG1HD2003 page 41) with a φ1.5 mm²...
  • Page 11 / OUTmA2 a / OUTmA3 N / OUTmA4 C / OUTmA5 Analog ground of current H / PWR− The maximum loading resistance of the current circuit is 500Ω at 12Vdc of power supply of the HD2003 - 11 HD2003 V4.1...
  • Page 12 With ICP DAS I-7024® module On request when placing the order This mode can be selected via software (Chap. 3.2.3.9). Realize a connection, with shielded twisted pair, between the HD2003 and the module ICP DAS I-7024 ®. The cable length between the most extreme points of the RS485 line, can be at max.
  • Page 13 Connect power supply and RS232 or RS422 as shown in Chapters 2.4.1, 2.4.2 and 2.4.3. After the power supply of the instrument has been switched on, the HD2003 will enter the auto ranging mode for a few seconds and then it will work in Measuring mode and automatically supply the Output Data which can be displayed on Hyper Terminal ®.
  • Page 14 3.2.2.1 RS232 S ERIAL XAMPLES - 14 HD2003 V4.1...
  • Page 15: Analog Output Mode

    When opening a Menu that allows the selection between different values/options, or a Menu that allows to set up a numeric value, the value/option correctly stored by the HD2003 and preceeded by a “=” sign, is always highlighted. Each single change of a parameter operated by the user determines a permanent storage of the new parameter value, still valid even after the power supply of the HD2003 has been switched off.
  • Page 16 When baud rate changes, the Hyper Terminal® Port Configuration is to be modified by inserting the new baud rate in the Bit per second item. It remains active in the HD2003 even when passing to ModBus RTU or Multidrop RS485 mode or AoXnd.
  • Page 17 RS232, RS422, RS485 or AoXnd as well as those chosen as Analog Outputs, are supplied by the HD2003 with values that represent the average calculated on the last time interval. The magnetic azimuth provided by the compass is excluded from moving averages.
  • Page 18 Analog Output and the meters per seconds of U component: - 45 m/s → 1Vdc +45 m/s → 5Vdc Under Analog Output and AoXnd mode, the only unit of measure possible is m/s for wind speed. - 18 HD2003 V4.1...
  • Page 19 The string of desired output quantities is established by typing in the desired order, the corresponding alphanumeric characters which appear on Menu (= 78012tce HD2003 Factory Default, also for ModBus Registers) (= 78tce HD2003.1 Factory Default, also for ModBus Registers). The string may consist of 12 alphanumeric characters at most that correspond, with the selection of 5.
  • Page 20: Parameter Setup

    For instance: (HD2003 Model). If the string of the output quantities is set to 78012tc, that is to say with seven quantities, it means it is necessary to use two ICP DAS I-7024 ® modules, the first one with address 00 e and the second one with address 01.
  • Page 21 (On request) Additional output quantities (see figure Chap. 3.2.2.1): (HD2003 Model). When you place your order, you can combine the two optional quantities q3 and q4, with two 0-1V external sensors connectable to the Anemometer. Thus, two additional measurements are added to the output quantities already available in the HD2003.
  • Page 22 The one referring to tens, identifies the sonic transducers with possible anomaly. Sonic transducers are grouped in pairs of facing elements. For the first pair, the upper transducer is next to the HD2003 metallic support which indicates the North direction. The other pairs follow anti-clockwise.
  • Page 23 ONIC RANSDUCER EATING This function is provided on request, and refers just to HD2003.R and HD2003.1.R models supplied with sonic transducer heating circuit. The climatic conditions which make it necessary to use the Heaters Option are indicated in Chapter 1.2.1.
  • Page 24: Baud Rate

    The ModBus baud rate remains the one set in Chapter 3.2.3.1; the set of ModBus registers is the one defined in Chapter 3.2.3.6 and the HD2003 ModBus address is the one set in Chapter 3.2.3.10. The ModBus RTU communication will be active from the next HD2003 power on and permanently stored until the next configuration.
  • Page 25 3.2.3.10 DENTICODE Typed Character: (ID) How to set the HD2003 address for RS485 ModBus RTU or Multidrop mode. Screen page: Sel: I Identicode Type any alphanumeric character, (0,1,2…9,a,b,…z,A,B,…Z) which will identify univocally the Anemometer (=1 Factory Default). The identicode is used in RS485 Multidrop communication mode in order to address the HD2003 Anemometers used in a two-wired Multidrop network.
  • Page 26 Here are summarized the values set by the factory calibration, as well as the current configuration of the main parameters that can be managed by the user in Setup. Press any key to go back to the Main Menu. - 26 HD2003 V4.1...
  • Page 27 RS232 Serial Communication mode, (see Chapters 2.4.1 and 2.4.2 for electrical connections). The baud rate, the same for all the HD2003 units in the network, is selected following the Chapter 3.2.3.1 instructions. The identicode must be different for each HD2003 unit in the network, and it’s selected following the Chapter 3.2.3.10 instructions.
  • Page 28 RS485 communication program, that already responds to the requirements of the HD2003 Communications Protocol. 3.3.2 HD2003 C OMMUNICATION ROTOCOL The HD2003 can receive four types of commands from the RS485 communication program of the Computer Host or of the DeltaOHM HD32MT.1 datalogger: ♦ Output Data Command ♦ Setup Command ♦...
  • Page 29 The RS485 communication program after sending the command: S<ID><x><x> according to the modes illustrated in Chapter 3.3.2, sets the queried HD2003 unit in Setup, and receives the Main Menu page from it (see Chapter 3.2.3). In substance, the RS485 communication program can manage the “Setup” of the HD2003 queried unit on the RS485 Multidrop line, in the same modes shown for the RS232 Serial Communication.
  • Page 30: Average Interval

    ♦ The Output Data received, will correspond to the last measurement carried out by the HD2003 unit, concerning the set average interval in the Setup (see Chapter 3.2.3.4). They represent the measurement quantities selected on the HD2003 unit, through number and type as shown in Chapter 3.2.3.6.
  • Page 31 The RS485 communication program after sending the command: H<ID><x><x> according to the modes illustrated in Chapter 3.3.2, sets the addressed HD2003 unit in the Digital High Frequency mode. In substance, the RS485 serial communication program, can subsequently query the HD2003...
  • Page 32: Output Quantities

    The function of the ModBus protocol that can be requested by the PC to the HD2003, with the corresponding code, is shown in the following table:...
  • Page 33: Unit Of Measurement

    For the quantities with configurable unit of measurement, the measurement value is expressed in the unit of measurement set in the HD2003, taking into account the number of decimals expected for that quantity, which affects the integer value in the register (see Par. 3.2.3.6).
  • Page 34: Analog Output Mode

    / OUTV4 / OUTV5 or OUTmA1 / OUTmA2 / OUTmA3 / OUTmA4 / OUTmA5) are available on Analog Outputs terminals. For the HD2003 Model, analog conversion for Temperature – Relative Humidity – Pressure, is also possible. The Analog Output mode is always active together with Serial RS232, RS422, RS485 Multidrop and AoXnd communication mode.
  • Page 35 UTPUT XTENDED By using the CP DAS I-7024 ® module (On request) with the HD2003 under Extended Analog Output mode, at the output terminals of the module, are available 4 additional analog outputs, voltage or current, related to the measure quantities desired. Up to 3 ICP DAS I-7024 ®...
  • Page 36 Chapter 3.2.3.6. It is possible to change the HD2003 settings from the Host computer also on the RS485 line, by using an RS232/RS485 converter such as ICP DAS I-7520® (supplied On Request), between the RS232 serial port of the Host computer and the ICP DAS I-7024®...
  • Page 37 In practice, the serial communication program can handle the Setup of the queried HD2003 unit on the RS485 line, in the same way as for the RS232 and RS422 Serial Communications. After exiting the Setup, the HD2003 unit returns to Master in Measure.
  • Page 38 HD2003 C ONNECTOR - 38 HD2003 V4.1...
  • Page 39 Analog Out current 5 Violet Reserved Reserved Reserved Reserved Reserved SHIELD Shielding Shield The columns Symbol and Description indicate, in brackets, the significance of the four PIN used in RS422 4-wire full duplex mode (On Request). - 39 HD2003 V4.1...
  • Page 40: How To Order

    ♦ HD2003 and HD2003.1 Model: the integrated circuit for RS422 4-wire full duplex communication. ♦ HD2003 Model: to extend the output quantities by using external sensors, with analog output signal 0-1V to be connected to the anemometer as input sensors. Specify how many sensors are used (up to a maximum of two) and their range so for linearization of the scale 0-1V.
  • Page 41 - 41 HD2003 V4.1...
  • Page 42 - 42 HD2003 V4.1...
  • Page 43 Direction (Azimuth) OUTV3 Pressure OUTV4 Temperature OUTV5 Relative Humidity The NEGATIVE pole –V is available at the pole D (REF) of the HD2003 connector (Chap. 2.4.5) ♦ 5 Analog Outputs in current, 0-20mA, 4-20mA Analog Out Measurement Quantities OUTmA1 Speed of Wind...
  • Page 44 Direction (Azimuth) OUTV3 Sonic Temperature OUTV4 Compass OUTV5 -Free- The NEGATIVE pole –V is available at pole D (REF) of the HD2003 connector (Chap. 2.4.5) ♦ 5 Analog Outputs in current, 0-20mA, 4-20mA Analog Out Measurement Quantities OUTmA1 Speed of Wind...
  • Page 45 CCESSORIES NEMOMETERS - 45 HD2003 V4.1...
  • Page 46 NOTES...
  • Page 47 HD2003 V4.1...
  • Page 48 This guarantee must be sent together with the instrument to our service centre. IMPORTANT: Guarantee is valid only if coupon has been correctly filled in all details. HD2003 HD2003R Instrument Code: HD2003.1...
  • Page 49 Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com The quality level of our instruments is the result of the constant development of the product. This may produce some differences between the information written in this manual and the instrument you have purchased.
  • Page 50 GHM GROUP – Delta OHM | Delta Ohm S.r.l. a socio unico Via Marconi 5 | 35030 Caselle di Selvazzano | Padova | ITALY Phone +39 049 8977150 | Fax +39 049 635596 www.deltaohm.com | info@deltaohm.com V4.1 08/03/2019...
