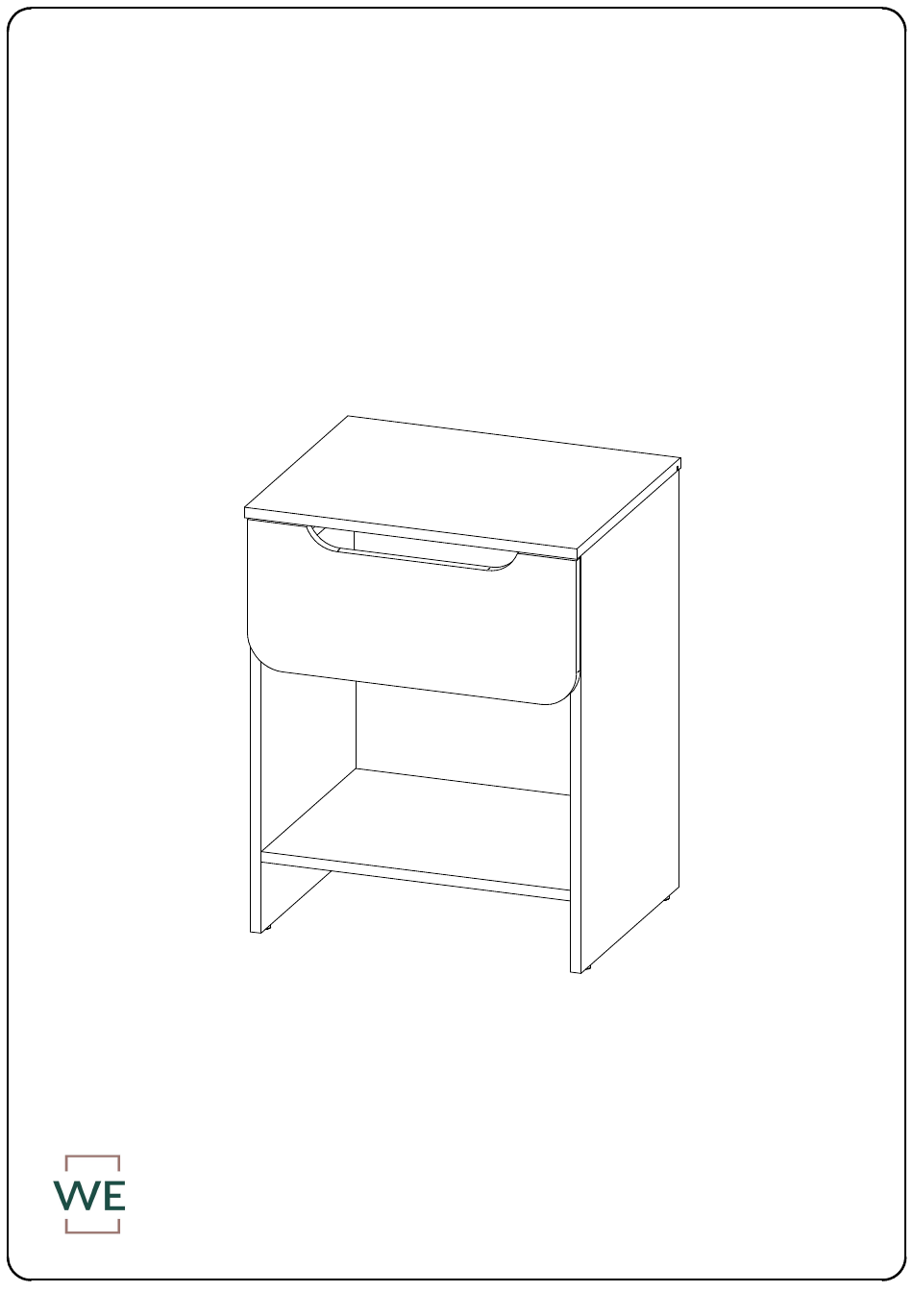

- Page 1 Item: DOMB4C Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 07/2022 - V1 Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
IV. The two main types of hardware used to assemble this product are: wood dowels and screws. V. A Phillips head screwdriver is required for the assembly of this product (not included) Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 3: Parts List
Top Panel Right Side Panel Left Side Panel Bottom Panel Drawer Front Right Drawer Side Left Drawer Side Drawer Back Smaller Back Panel Larger Back Panel Drawer Bottom Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Hammer recommended for assembly (not included) for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Step 1 Ø8x30 Insert wooden dowel (A) to parts (2,3,4) and insert cam bolt (B) to parts (1,2,3). Ø6x31mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 2º Hole Ø3,5x14mm Ø14x4mm 300mm Attach slides (L1,R1) to parts (2,3) with screw (D) and attach plasctic foot (J) to parts (2,3) with screw (D). 300mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 Secure part (4) to part (3) using cam lock Ø15x10mm (C) as per diagram. Step 4 Secure parts (3,4) to part (2) using cam lock (C) as per diagram. Ø15x10mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 8 Step 5 Slide back panels (9,10) and part (G) into 447mm side panel (2,3). Step 6 Secure part (1) to parts (2,3) using cam lock (C). Ø15x10mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 9 Secure back panels (9,10) using screw (E) 14x14mm and support (H). Step 8 Ø8x30 Insert wooden dowel (A) to parts (6,7,8) and insert cam bolt (B) to part (5). Ø6x31mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 Secure part (5) to parts (6,7) using cam lock (G). Step 10 Ø3,5x14mm Ø 19mm 300mm Attach slides (L2,R2) to parts (6,7) with screw (D). Place sticker (I) over holes as per diagram. 300mm Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
- Page 11 Step 11 Step 12 Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.11...
