- Page 1 INSTALLATION GUIDE Isodrive 950 Under our policy of continuous product development, product specifications may change without notice. Please refer to the online version of the manual for the www.schweigen.com.au latest updates and specifications.
-
Page 2: Welcome
Welcome Thank you for purchasing your new Schweigen Isodrive system. To get the maximum output from this unit, please read through this guide before use and installation. This guide contains important information on the correct use and maintenance of the unit, as well as important safety notes. -
Page 3: Table Of Contents
Safety Duct ____________________________________________________ 13 ™ Shallow Roof Space _______________________________________________________________ 14 Important Note __________________________________________________________________ 14 Securing SteelFlex Safety Duct ______________________________________________________ 15 ™ 6. Maintenance Roof Restoration or Cleaning ________________________________________________________ 16 7. Measurements Measurements for Isodrive 950 ______________________________________________________ 17 8. Warranty/Disclaimer ________________________________________________________________________ 18 Page 3... -
Page 4: Your Safety
Children should be supervised to ensure that they do not play with the appliance, it is not a toy. Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your warranty will be voided. -
Page 5: Motor Features
This will void your warranty. NOTE: Fan module and Steelflex duct are acoustically matched. Use of semi-rigid or rigid ducting will result ™ in increased noise and may void warranty. See installation instruction notes ‘Why Schweigen SteelFlex ™ Safety Duct’ . Recommended Installation Distance Isodrive 950 motor, recommended 4 metres of SteelFlex ducting and with at least two gentle bends. -
Page 6: Minimum Mounting Height
Any installation problem must be reported ™ to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer. Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty. -
Page 7: Description

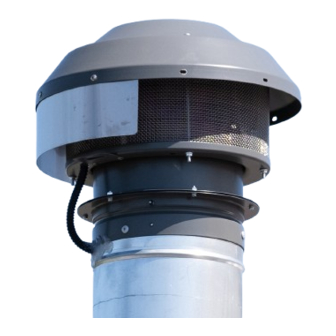

12. ™ Isodrive Motor Included in the box: 1. Isodrive 950 motor (350W x 295H mm approx.) Approx. 3 metre, 10amp cable and standard plug (backdraft shutter and weather shield included) 2. Fire resistant 200mm metal pipe 3. -
Page 8: Installation
Isodrive motor in an appropriate position. For more information on environmental noise limit and conditions please contact your local Council. For installation, we have a list of experienced installers available on the Schweigen website. Do not install the SteelFlex in a straight line and a minimum of two gentle bends in the ducts is required. - Page 9 4. Installation 950 motor Weather shield attachment Weather shield Backdraft shutter Power Cord 50mm 200mm metal Pipe Dektite (not supplied) Fix fan module using side locking screw Locking screws to secure Fit side supports to locate pipe Clamps/Straps to supports NOTE: Prevent any cord bunching by pulling cord through from plug top end Connect to...
-
Page 10: Wall Installation
Wall Power cord to 220-240V supply Wall cover plate (optional)** * With through wall installations flap shaft will be close to vertical. ** Optional parts are available from Schweigen, please contact 1300 881 693. Figure 2: Wall installation Page 10... - Page 11 Fix motor module using side locking screws NOTE: Due to the weight and to create stability for the Isodrive 950 motor, it is require to use a wall hanging bracket. Warranty will be void if a hanging bracket is not used.
-
Page 12: Steelflex ™ Safety Duct
Incorrect installation may reduce airflow or increase noise levels. Call outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen will take no responsibility for problems caused by faulty installation. A list of experienced installers can be obtained from the Schweigen website www.schweigen.com.au. -
Page 13: Assembling Steelflex Safety Duct
5. SteelFlex Safety Duct ™ Assembling SteelFlex Safety Duct ™ Parts required: SteelFlex safety ducting ™ Steel ring clamps 200mm metal pipe 12mm self-drilling button head screws Slide the steel ring clamp over the end of Secure duct to the pipe at regular intervals the duct then insert the 200mm metal with supplied 20mm button head screws pipe into the duct end... -
Page 14: Shallow Roof Space
5. SteelFlex Safety Duct ™ Shallow Roof Space In shallow roof spaces, do not crush or kink SteelFlex ducting, as it will reduce air flow severely. 90 degree ™ curve made of PVC or galvanise can be used as a substitute for the bend. Use 90 degree curve to prevent crushing Figure 6: Shallow roof space... -
Page 15: Securing Steelflex Safety Duct
5. SteelFlex Safety Duct ™ Securing SteelFlex Safety Duct ™ SteelFlex safety duct must be installed with supports at maximum intervals of 1.5 metres. SteelFlex safety ™ ™ ductwork can be supported by using good quality gaffer or aluminium foil tape. Provided that it does not restrict the internal diameter of the ducting. -
Page 16: Maintenance
6. Maintenance Roof Restoration or Cleaning Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all chemical contact. IMPORTANT Any damages caused by the use of chemical products are not covered by warranty. Figure 9: Avoid chemical contact to motor system Page 16... -
Page 17: Measurements
7. Measurements Measurements for Isodrive 950 (Not to Scale) 350mm 160mm 295mm 190mm 85mm 275mm 50mm 430mm Dektite 200mm Figure 10: Measurements for Isodrive 950 Page 17... -
Page 18: Warranty/Disclaimer
All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for illustrative purposes only. - Page 19 Notes Page 19...
- Page 20 Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz Revision V2 22/06/23...
