RANGEHOOD & INSTALLATION GUIDE
NAUM-6
Revision V1.2
www.schweigen.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAUM-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schweigen NAUM-6

  • Page 1 RANGEHOOD & INSTALLATION GUIDE NAUM-6 Revision V1.2 www.schweigen.com.au...
  • Page 2: Table Of Contents

    Installation Example ______________________________________________________________ 14 Ducting ________________________________________________________________________ 15 Back Draft Fins __________________________________________________________________ 15 Installation Advice ________________________________________________________________ 16 Roof Cowls/Roof Seal Kit ___________________________________________________________ 18 8. Maintenance Condensation Information __________________________________________________________ 19 Troubleshooting _______________________________________________________________________________ 20 9. Specifications NAUM-6 ______________________________________________________________________________________ 21 10. Technical Support ___________________________________________________________________________ 22 Page 2...
  • Page 3: Welcome

    This will ensure your personal safety and the lasting value of your professional rangehood. We trust that you will enjoy your new Schweigen rangehood. Please always retain your proof of purchase to aid in any warranty queries. This unit comes with a 2 Year Warranty.
  • Page 4: Your Safety

    2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    2. Your Safety Before Installation We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. Please see our website www.schweigen.com.au for recommended installers. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty.
  • Page 6: Product Use

    2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. (Flambé) Maintenance and Service The rangehood surface should be cleaned with soft cloth and non-corrosive detergent.
  • Page 7: Tips And Suggestions

    3. Tips & Suggestions The rangehood has one mode of operation: Air extraction: The air is drawn in and cleaned by the grease filters and directed outside. Please check the cleaning and maintenance section for the filters’ cleaning periods. For Users 1.
  • Page 8: Description

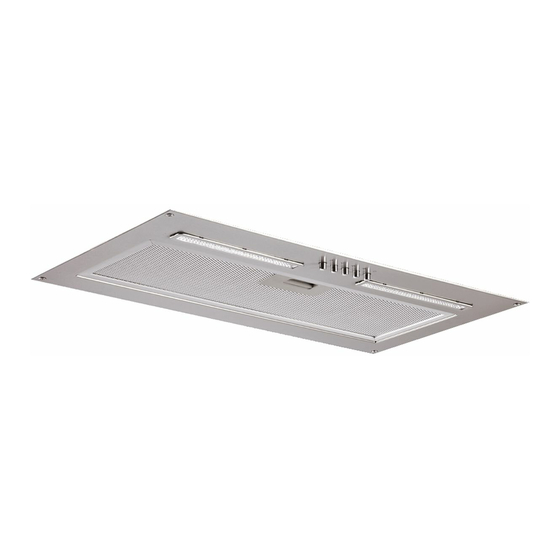

    4. Description Main Rangehood Male Plug (Main Power 240V) Single Outlet 150mm Filter Lamp (LED Strip) NOTE: Filter and light quantity may vary from model to model. Speed Control This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions: •...
  • Page 9: Operation

    5. Operation Push Button Control Panel Turn off the rangehood Low speed setting Medium speed setting High speed setting Turn on/off the lamp Page 9...
  • Page 10: Cleaning And Maintenance

    6. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Surfaces Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any part of this appliance, Always make sure to dry the appliance after cleaning and never leave wet, as this will cause irreparable damage.
  • Page 11: Cleaning The Interior

    6. Cleaning & Maintenance WARNING • If the grease filters are very dirty, the motor will extract only a small quantity of air, which reduces its efficiency; • The grease deposits that build up on the filter are highly flammable and COULD EASILY CATCH FIRE.
  • Page 12: Installation

    650mm 750mm 800mm Induction 700mm 750mm* 800mm Schweigen’s recommended height (Recommended will help avoid condensation, peculiar height) to cooking with an Induction Cooktop. Refer to additional notes on page 19. • The location of the installation must have permanent openings for ventilation.
  • Page 13: Mounting Points

    7. Installation WARNING If the user decides to install the rangehood at a distance of less than minimum height above the cooking surface, the Measurements are from company declines responsibility the top of the trivets to for damages suffered by the the lowest part of the rangehood due to excess heat rangehood, including the...
  • Page 14: Installation Example

    7. Installation Installation Example WARNING Please remove filters before installations. Failure to do so may damage the clips. Back Draft Base Step 1 Please make sure the cut out size is correct before installing the rangehood. Install the back draft base to the rangehood. Cabinet Step 2 Secure the undermount into cavity using...
  • Page 15: Ducting

    7. Installation Ducting Please do not crush or kink ducting, as it will reduce air flow and may cause noise to occur through the system. Ducting needs to be kept taut at all times. Back Draft Fins Should your Back Draft Fins get stuck, this is not a warranty issue. When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base, which are attached to the top of the motor outlet before installation.
  • Page 16: Installation Advice

    7. Installation Installation Advice • Never reduce flue diameter right next to the rangehood outlet fitting, refer to figure 1. • Never fit reductions next to curves or bends in the installations. They must always be in straight sections and as far as possible from the rangehood, refer to figure 2. •...
  • Page 17 7. Installation Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Page 17...
  • Page 18: Roof Cowls/Roof Seal Kit

    7. Installation Roof Cowls / Roof Seal Kit WARNING All electrical wiring should be kept inside the roof space. Roof Cowls* Flexi Ducting must be pulled taut. DO NOT crush or kink the ducting. Connect flexi ducting to the outlet on rangehood using duct tape or cable tie.
  • Page 19: Maintenance

    • Distance from cooktop to the rangehood • Speed of food & liquid heating • Angle of ducting – Schweigen ‘S’ bend preferred • Filter size - larger canopy preferred • Quality of pots or cookware you are using – high quality recommended How to reduce the possibility of condensation forming: •...
  • Page 20: Troubleshooting

    8. Maintenance Troubleshooting If the product does not work: Before you contact the technical service department, make sure that the product is plugged in, the electric fuse (on selected models) is in correctly and electric wiring is connected. (Fuses can be purchased from your local electrical dealer or hardware store).
  • Page 21: Specifications

    8. Specifications Technical Specifications Model NAUM-6 Feeding Voltage 240V 50Hz Lamp Power — LED Strip (W) 2 x 2.5W (supplied) Front 150mm 71mm Page 21...
  • Page 22: Technical Support

    It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it’s established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the appliance where the appliance resides —...
  • Page 23 Notes Page 23...
  • Page 24 8/3-4 Anzed Court, Distributed by: Mulgrave 3170 Victoria. 1300 881 693 (EST) www.schweigen.com.au...
