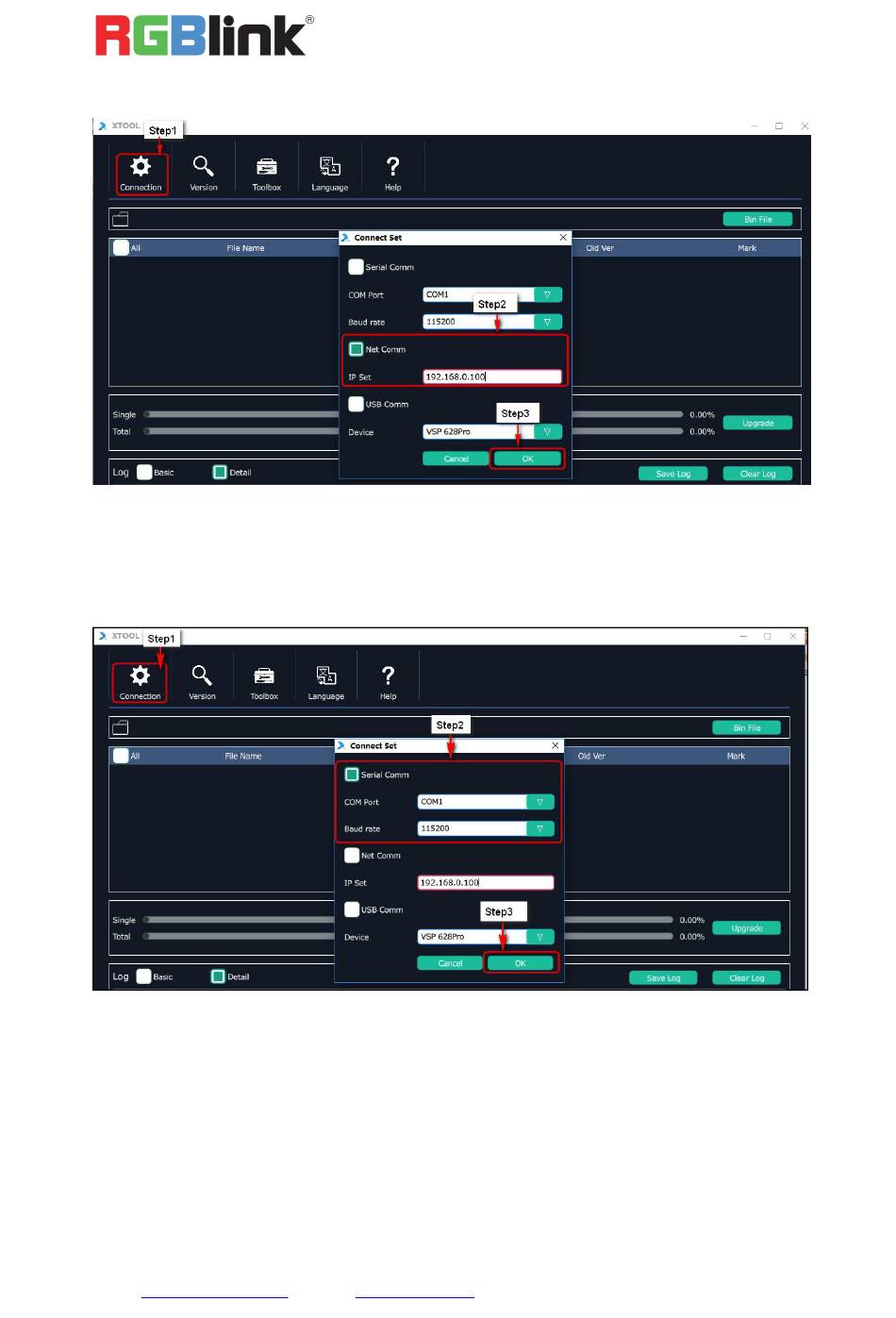

address with the device ( device IP address default: 192.168.0.100 ). Click [OK] .If it is
success, it will pop up the dialog box as the figure shown [Set IP address success!].
Connect by serial cable：Click [Connection], the dialog box will pop up , select [Serial
comm] , find the right COM port and set the baud rate to 115200, click OK. If it is
success, it will pop up the dialog box as the figure shown[Set serial port success!]
1.3.3. If connection succeed, the light( on the left corner) will turn blue. Users can
check the device type and SN on right corner .

1.4. Select Upgrade File and Upgrade

1.4.1. Select the .bin file in the "Upgrade File".
1.4.2. Click"all" XTOOL will tick the different subroutine firmware automatically.
1.4.3. Click "upgrade" and it will pop-up "whether to upgrade firmware" dialog box,
click "OK" to upgrade.
