Summary of Contents for Retevis RT628S

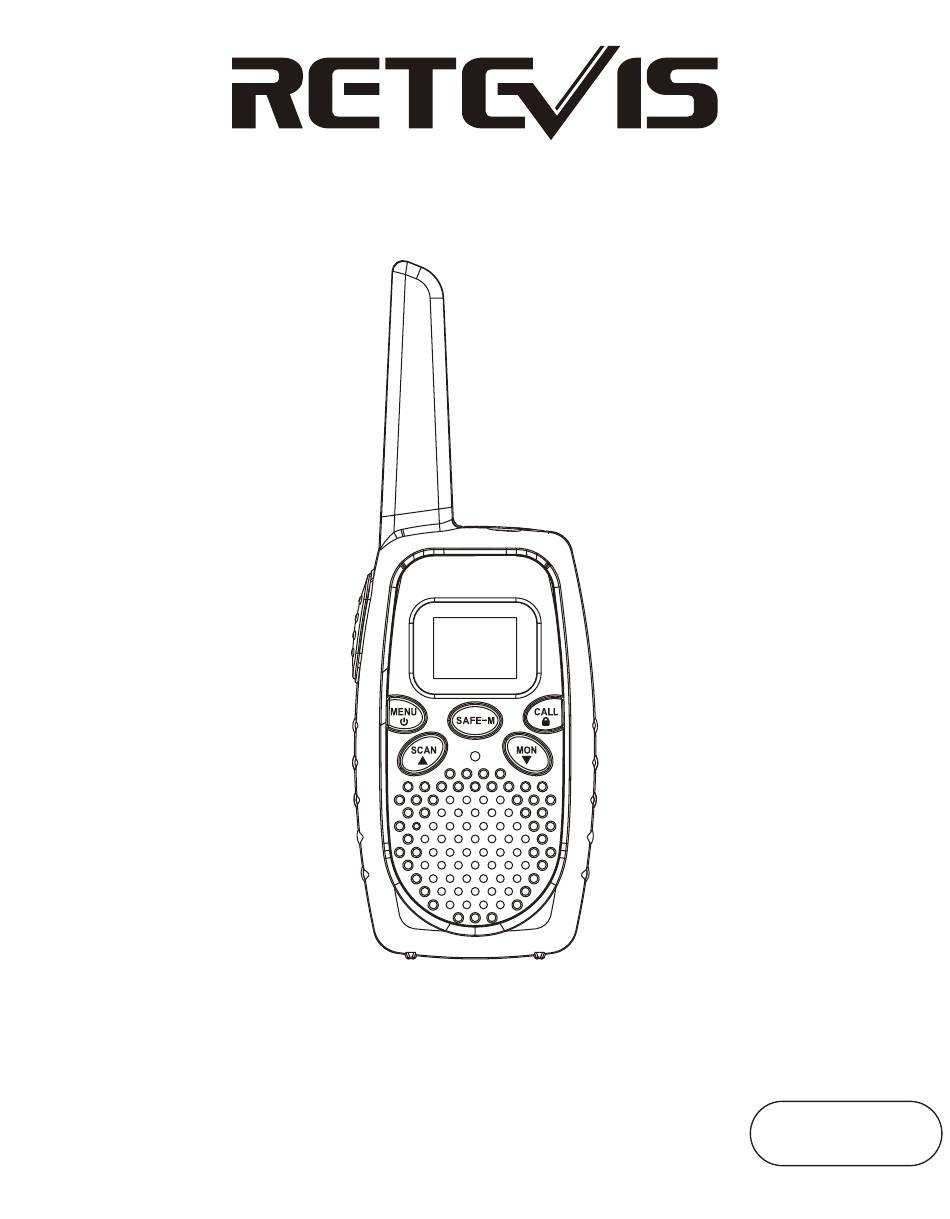

  • Page 1 Wireless Radio RT628S EN(01~12) User Manual...
  • Page 2: Key Functions

    Key Functions 1. PTT 2.Menu/Power Key 3.SCAN/UP Key 4.Speaker 5.Accessories/Charging Jack 6.LCD Display 7.Safe Mode Key 8.Call Tone/Key Lock 9.Monitor/DOWN Key 10.Microphone 11.Antenna Display Icon Instructions Channel Number Call Tone CTCSS/DCS Code Power Battery Indicate Transmitting/Receiving Key Lock Roger Beep Scan...
  • Page 3 Battery Installation and Function Your device uses 3 x AA alkaline batteries. 1.Place the back of the device to you, there is a hidden buckle to turn on/off the battery cover. 2.Install 3 x AA alkaline batteries as shown inside of the battery case. 3.Reinstall the battery cover and lock it down, the batteries can be replaced with NI-MH battery.
  • Page 4: Featured Function

    Battery Power Measurement The battery capacity is full, the battery power is high . When the battery displays 1 grid, the device is in low battery mode and makes a low battery warning in the form of the prompt. Note: Take out the battery from the radio to save it.
  • Page 5 tone and monitor channel. But other functions are locked. To unlock the device, press the CALL/Key Lock for 3s or until the key lock icon is not displayed. Scan Channel Use scan to monitor the reeving of the channel or find the people who accidentally change the channel in your group.
  • Page 6: Frequency List

    Set Transmitting Power 1.Press the MENU key until the PR icon appears. The current setting power level flashes (HI or LO). 2.Press the UP key or DOWN key to choose high/low power. 3.Press the PTT key to save the new setting of the transmitting power and the correspond power icon displays. Set Safe Mode Press the SAFE-M key for 3s until the SF icon appears, the device enters the safe mode.
  • Page 7 CTCSS 38 Code Code Code Code...
  • Page 8 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
  • Page 9 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
  • Page 10 When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
  • Page 11 Hand-held Mode(if applicable) • Hold the radio in a vertical position with the microphone (and other parts of the radio including the antenna) at least 2.5 cm (one inch) away from the nose or lips. The antenna should be kept away from the eyes.
  • Page 12 •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. •For a list of Retevis-approved accessories for your radio model, visit the following website: http://www.Retevis.com WARNING...
  • Page 13 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy.
  • Page 14 Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:kam@retevis.com Facebook:facebook.com/retevis MADE IN CHINA...
