Summary of Contents for Retevis RT602

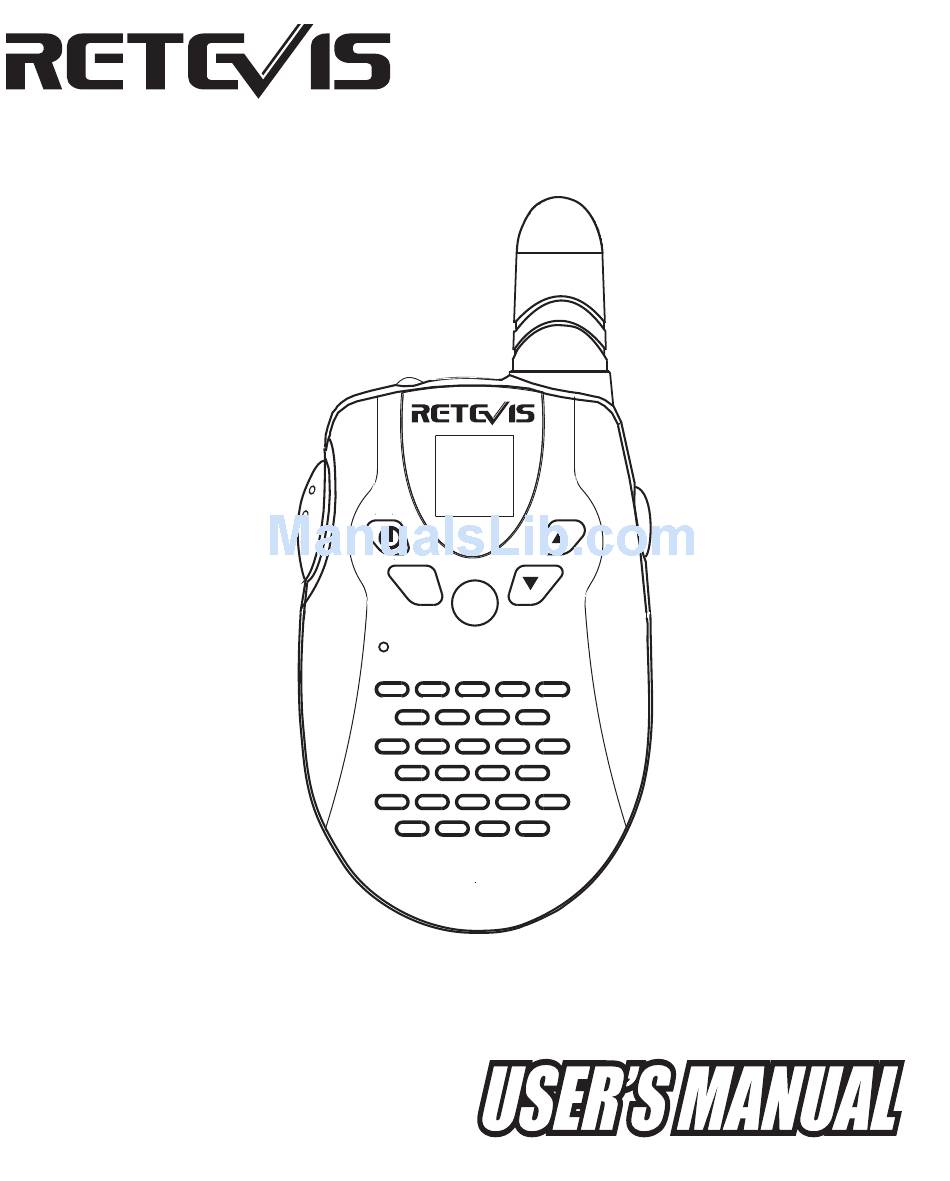

- Page 1 RT602 RT602...
- Page 2 PIC 01 1.Antenna 19.Lamp 18.Lock 2.Battery Level 17.Vox 3.CTCSS / Menu option 16.Scanning 15.Channel/Menu item SCAN 4.TX/RX Icon TX RX 5.Volume 14.PTT Button 6. Lamp Button 7.Up Button 13.Power Button 8.Down Button 12.MENU/ Keypad 9.Call/Scan Button Lock Button 11.Microphone 10.Speaker...
- Page 3 PIC 02...
- Page 4 EN~ Instructions for use This set includes 2 walkie-talkie units: these are communication devices which operate on mobile radio frequencies. They come with 22 channels as well as a back-lit LCD screen, enabling you to communicate over several kilometres free-of-charge. Please read these user instructions carefully before using NOTE: the equipment and retain for future consultation!
- Page 5 ITEM DESCRIPTION (Pic 01,02) 1. Antenna 2. Battery level indicator 3. CTCSS / Menu option -value 4. RX icon -Displayed when receiving TX icon -Displayed when transmitting 5. Volume level indicator Lamp Button ▲ 7. Adjustor button Up ( 8. Adjustor button Down (▼) 9.
- Page 6 BEFORE USE (Pic 02) To insert batteries into the devices, first remove the belt attach- ment: lift the attachment clip (20) and press the belt attachment upwards. Release the Battery compartment cover latch (21) lo- cated on the rear side of the unit. Open the battery compartment (23) and insert 3 AAA batteries or NI-MH rechargeable batteries (22)(not supplied), ensuring that the poles are correctly aligned.
- Page 7 4. Receiving/transmitting communications: The devices are in 'Reception' mode when lit up, i.e. they are ready to receive a call or sound transmitted on the activated frequency. ● When you press the Call tone button (9), the device switches to 'Transmission' mode.
- Page 8 6.CTCSS (Continious Tone Coded Squelch System) License free radio's operating on the 462.5625~467.7250 Mhz frequency band, like the kids walkie talkie , have 22 available channels channels. If there are many walkie talkie users in your neighborhood, there is a chance that some of these users are operating on the same channel.
- Page 9 8. VOX Selection The walkie talkie has VOX function. In VOX mode, the walkie talkie will transmit a signal when it is activated by your voice or other sound around you without pressing PTT button. VOX operation is not recommended if you plan to use your walkie talkie in a noisy or windy environment.
- Page 10 10. Call Tones A call tone alerts others that you want to start talking. 1. Setting the Call Tone The Walkie talkie has 10 different call tones. ● Press the MENU- button(12) four times, “CA” is displayed and the current call tone is flashing. ●...
- Page 11 To set the Roger Beep. ● Press the MENU- button(12) six times. “rO” will be displayed. ● Press ▲ to enable (ON) or ▼ disable the Roger Beep (OF). ● Press the PTT - button(14) to confirm your selection and return to the standby mode.
- Page 12 16.BUILT-IN FLASH LIGHT As an added feature,your walkie talkie has a built-in flashlight that can be used in sending light signals or for your lighting needs with a button on the right side of the device. 17 Charge The PMR(PIC 02) In the event you wish to use the unit with rechargeable battery.
- Page 13 EU Channel Frequency Channel Frequency 446.00625 446.01875 446.03125 446.04375 Channel Frequency 446.05625 446.06875 446.08125 446.09375 USA Channel Frequency Channel Frequency 462.5625 462.5875 462.6125 462.6375 Channel Frequency 462.6625 462.6875 462.7125 467.5625 Channel Frequency 467.5875 467.6125 467.6375 467.6625 Channel Frequency 467.6875 467.7125 462.5500 462.5750 Channel...
