Initial setup
secuENTRY home
ENTRY 5000 CYL
Setup with app
BURGsmart
BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
www.burg.biz
Further languages at:
www.burg.biz
Dear Customer,
Thank you very much for deciding on the secuENTRY cylinder
ENTRY home 5000 CYL.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.

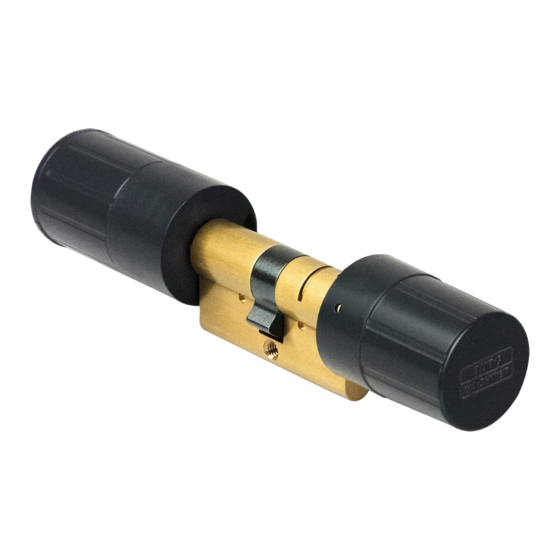

The ENTRY home 5000 CYL electronic cylinder can be easily
installed in any door with a mortise lock, up to a door thick-
ness of 118 mm (59/59 mm, measured in the centre of the
forend screw). No drilling or laying of cables is required and
it is ideally suited for both new installations and retrofitting.
The ENTRY home 5000 CYL can be fitted to house and
interior doors.
The ENTRY home 5000 CYL is setup and operated using the
free smartphone app BURGsmart
the cylinder and keypad both use the modern Bluetooth 5.2
standard.
*
Alternatively, the cylinder can also be operated via keypad ENTRY 7711 PIN and
the radio key ENTRY sE-Key 7713 (available separately). The BURGsmart app is
however always required for the setup.
Video instructions
Simple instructions on the
setup and operation of your
secuENTRY components.
Follow the QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
. The transmission is wireless,
*
Important:
Please read the entire operating instructions
before you start the installation.
We hope you enjoy your new locking system!
2
Advertisement
Related Manuals for Burg Wächter secuENTRY home ENTRY 5000 CYL
Summary of Contents for Burg Wächter secuENTRY home ENTRY 5000 CYL
- Page 1 Contents index English Further languages at: www.burg.biz Initial setup secuENTRY home ENTRY 5000 CYL Foreword Dear Customer, Thank you very much for deciding on the secuENTRY cylinder ENTRY home 5000 CYL. The system was developed in Germany according to the most Setup with app modern technical capabilities and fulfils the latest high safety BURGsmart...
- Page 2 Set contents Technical details - ENTRY 5000 home CYL Cylinder Cylinder ENTRY home 5000 CYL Cylinder unit power supply 2x Mignon LR6 AA alkaline Forend screw Permitted ambient conditions -15 °C/+50 °C / up to 95 % relative air humidity (non-condensing) Screwdriver Tx8 Radio standard Bluetooth 5.2 LE...
- Page 3 ENTRY home 5000 CYL activation I - User Tap on the menu item "I - User" (Fig. 1). First of all, download the BURGsmart app in order to be able to set up your BURGsmart A list of the users that have already new locking system.
- Page 4 The capture window of the camera III - Locking plan opens. Scan the QR code. A message appears containing data Use this menu to define the locking regarding your cylinder; confirm this plan, namely which user is allowed to with "OK" at the bottom right (Fig. 5). open which lock.
- Page 5 Here you will be asked to verify yourself Using the cylinder and keypad with your administrator code. Enter the code and confirm with “OK” (Fig. 5). To use the cylinder (Fig. 1) remove the battery protection strip. Note: The factory administrator code can be found on the QR code sticker of the cylinder under “ADM”...
- Page 6 From inner side the door, push the secuENTRY 5000 CYL installation cylinder into the mortise lock (Fig. 4). The installation of the secuENTRY 5000 CYL is explained below. Prior to installation, please read the assembly instructions carefully. Remove the existing door lock cylinder by loosening the forend screw in the door and pulling out the cylinder with Fig. 4...
- Page 7 Battery status display and replacing the batteries Compatibility with other secuENTRY products Whether for one front door, several doors or a complete locking system: Simply configure your Cylinder ENTRY home 5000 CYL individual unit with the secuENTRY modular system. The battery status is shown on the Your ENTRY home 5000 CYL locking system can be extended with the following components: display each time a secuENTRY cylinder is activated via the BURGsmart app...
-
Page 8: Warranty
Warranty Notes In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation. When returning goods due to your right of withdrawal, all parts of the appliance must also be in their factory settings. - Page 9 secuENTRY Set ENTRY Home 5000 CYL BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
