BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
Initial setup
secuENTRY easy
ENTRY 7600 CYL
Setup with app
BURGsmart
www.burg.biz
Further languages at:
www.burg.biz
Dear Customer,
Thank you very much for deciding on the secuENTRY cylinder
ENTRY 7600 CYL.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.

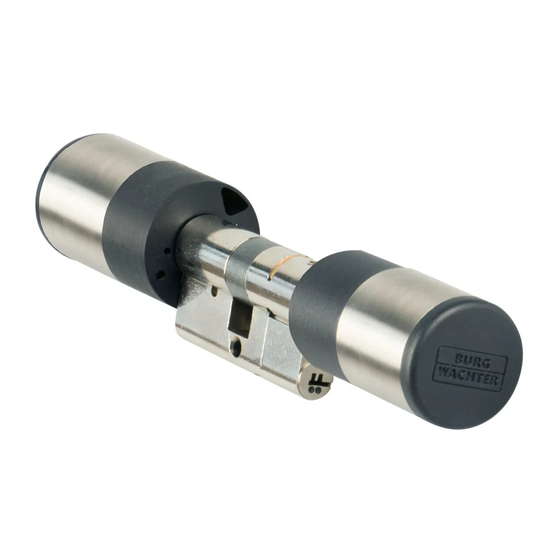

The ENTRY 7600 CYL electronic cylinder can be easily installed
in any door with a mortise lock, up to a door thickness of
118 mm (59/59 mm, measured in the centre of the forend
screw). No drilling or laying of cables is required and it is
ideally suited for both new installations and retrofitting. The
ENTRY 7600 CYL can be fitted to house and interior doors.
The ENTRY 7600 CYL is setup and operated using the free
smartphone app BURGsmart
cylinder uses the modern Bluetooth 5.2 standard.
*
Alternatively, the cylinder can also be operated by keypad (e.g. ENTRY 7712
Keypad FP), the radio key ENTRY sE-Key 7713, as well as other add-on products
(all items available separately. For a complete list of all compatible products,
please refer to page 10 of these instructions). The BURGsmart app is however
always required for the setup.
Video instructions
Simple instructions on the
setup and operation of your
secuENTRY components.
Follow the QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
*
. The transmission is wireless, the
Important:
Please read the entire operating instructions
before you start the installation.
We hope you enjoy your new locking system!
2
Advertisement
Related Manuals for Burg Wächter secuENTRY easy ENTRY 7600 CYL
Summary of Contents for Burg Wächter secuENTRY easy ENTRY 7600 CYL
- Page 1 Contents index English Further languages at: www.burg.biz Initial setup secuENTRY easy ENTRY 7600 CYL Foreword Dear Customer, Thank you very much for deciding on the secuENTRY cylinder ENTRY 7600 CYL. The system was developed in Germany according to the most Setup with app modern technical capabilities and fulfils the latest high safety BURGsmart...
- Page 2 Set contents Technical data - ENTRY 7600 CYL Cylinder ENTRY easy 7600 CYL Cylinder Cylinder unit power supply 2x Mignon LR6 AA Alkaline Permitted ambient conditions -15 °C/+50 °C / up to 95 % Adapter 1 incl. 2x M2x10 screws relative humidity (non-condensing) Adapter 2 incl.
- Page 3 ENTRY easy 7600 CYL activation I - User Tap on the menu item "I - User" (Fig. 1). First of all, download the BURGsmart app in order to be able to set up your BURGsmart A list of the users that have already new locking system.
- Page 4 Access data | Enter RFID tag Note: If you wish to enter opening media for other users, go back one An RFID transponder ENTRY 7710 RFID menu and select the respective user (optionally available) can be entered (Fig. 7). Repeat the steps in this chapter at this point.
- Page 5 The capture window of the camera II - secuENTRY units opens. Scan the QR code. Tap on the second menu item A message appears containing data regarding your cylinder; confirm this "II - secuENTRY units" (Fig. 1). with "OK" at the bottom right (Fig. 4). The app displays a list of the cylinders In the following window, you will be that have already been registered.
- Page 6 Here you will be asked to verify yourself III - Locking plan with your administrator code. Enter the code and confirm with “OK” (Fig. 5). Use this menu to define the locking plan, namely which user is allowed to Note: The factory administrator code open which lock.
- Page 7 Using the cylinder and keypad Opening the secuENTRY lock with the emergency lock To use the cylinder (Fig. 1), remove the Should the batteries in the locking battery protection strip. cylinder be completely discharged, the lock can still be opened mechanically. The emergency lock is located on the outer side, below the knob attachment.
- Page 8 Adapters may be required depending on Assembly of the ENTRY easy 7600 CYL Door outer side Door inner side the door thickness. The installation of the ENTRY easy If the distance between the forend screw Forend screw 7600 CYL is explained below. Prior to and the outer side of the door (Fig. 4) is...
- Page 9 Screw the cylinder into the door and Battery status display and replacing the batteries push the inside and outside knobs up to the door (Fig. 9). ENTRY 7600 CYL cylinder The battery status is shown on the display each time a secuENTRY cylinder is activated via the BURGsmart app (Fig. 1).
- Page 10 secuENTRY Add-on Compatibility with other secuENTRY products Article number: ENTRY 7174 RFID-Extender 4003482501740 Whether for one front door, several doors or a complete locking system: Simply configure your Further information RFID transponder reader. Can be used individual unit with the secuENTRY modular system. can be found on for cylinders or, in conjunction with our website:...
-
Page 11: Warranty
Warranty Notes In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation. When returning goods due to your right of withdrawal, all parts of the appliance must also be in their factory settings. - Page 12 secuENTRY easy ENTRY 7600 CYL BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
