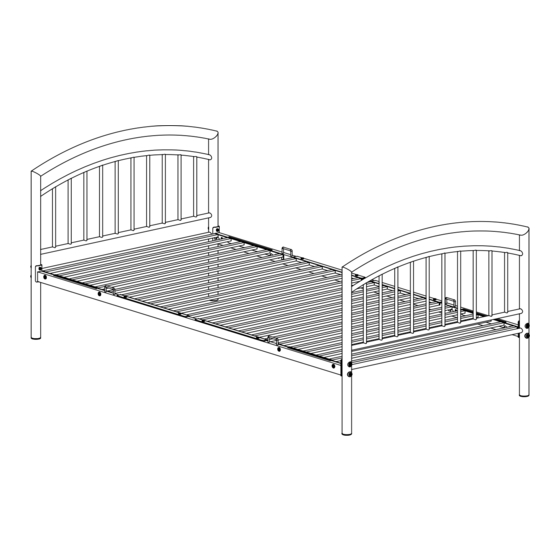

Archie Bed

Dimensions

Length - 199cm

Width - 97cm

Height - 78cm

– Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800

– Please keep for future reference

608/ 9616

Issue 1 - 10/11/16

Table of Contents

Do you have a question about the Archie 608/ 9616 and is the answer not in the manual?

Page 1 Archie Bed Assembly Instructions 608/ 9616 – Please keep for future reference Dimensions Length - 199cm Width - 97cm Height - 78cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1 - 10/11/16...
Page 3 Components - Parts Please check you have all the parts listed below Headboard / footboard panel x 2 (96.8 x 78cm) Side rail x 2 (192 x 6.7cm) Slat frame (ends) x 2 (43 x 92.2cm) (Fixing holes on sides) Slat frame (centre) x 2 (43 x 94.5cm) (Fixing holes on top)
Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 0345 6400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 Assembly Instructions Step 1 Assembling side rails Assemble side rails in between the headboard and footboard using fixings Note: Ensure the mattress retainers are on the top. Note: Leave fixings loose at this stage. Step 2 Assembling end slat frames Carefully locate end slat frames in between...
Page 6 Assembly Instructions Step 3 Assembling centre slat frames Locate centre slat frames into position and secure using fixings Important: Once the assembly is complete, ensure all fixings on the whole frame are fully tightened. Periodically check that all fixings remain fully tightened.
