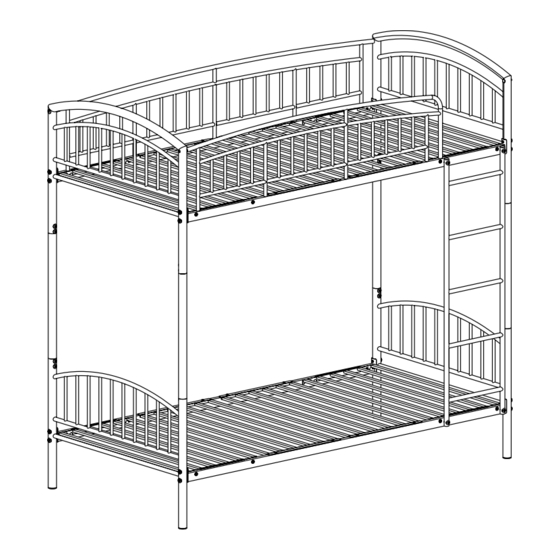

Archie Bunk Bed
Assembly Instructions -
Please keep for future reference
614/7802
Dimensions
Length - 200cm
Width - 97.5cm
Height - 190cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue1 -10/11/16
Advertisement
Related Manuals for Justwise Archie 614/7802
Summary of Contents for Justwise Archie 614/7802
- Page 1 Archie Bunk Bed Assembly Instructions - Please keep for future reference 614/7802 Dimensions Length - 200cm Width - 97.5cm Height - 190cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue1 -10/11/16...
- Page 2 IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE Important - Please read these instructions fully before starting assembly • Place the product on flat and • Check you have all the • Assemble the item as close steady surface during use. components and tools listed on to its final position (in the same pages 2 and 3.
-
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below End panel (Upper) x 2 End panel (Lower) x 2 (96.8 x 69cm) (96.8 x 62cm) Front guard (191 x 39cm) Rear guard (191 x 39cm) Lower side rail (front) (191 x 7.3cm) - Page 4 Components - Parts Please check you have all the parts listed below Extra brackets Lower side rail (rear) (191 x 7.3cm) Slat frame (ends) x 4 ( □ 43 x 3 x 92.2cm) (Fixing holes on sides) Slat frame (centre) x 4 (43 x 2 x 94.6cm) (Fixing holes on top) Ladder...
- Page 5 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 6 Assembly Instructions Step 1 Assembling end frames Assemble corner posts in between upper end panel and lower end panel using fixings as shown. Note: Do nut fully tighten the fixings as this stage. Repeat for both end prames.
- Page 7 Assembly Instructions Step 2 Assembling rear guard and lower side rail Two people are needed here. With help, stand both end frames upright. Assemble the rear guard in between the end frames as shown. Secure at the top using fixings shown.
- Page 8 Assembly Instructions Step 3 Assembling front guard and lower side rail At this stage, choose if you want the ladder on the right hand side or left hand side. According to which side you want the ladder, assemble the front guard in between the end frames as shown.
- Page 9 Assembly Instructions Step 4 Assembling end slat frames Carefully locate the end slat frames in between the front and rear guards at each end of the frame. Secure using fixings , but do not fully tighten. Repeat for both bunks as shown.
- Page 10 Assembly Instructions Step 6 Attaching ladder Assemble ladder front guard and lower side rail using fixings Fixings are located inside the frame as shown. Plastic plugs can be used to cover the un-used holes in the corner post as shown. Important Once assembly is complete, ensure all...
