NUTRICHEF PYLE PKAIRFR42 - Air Fryer Manual

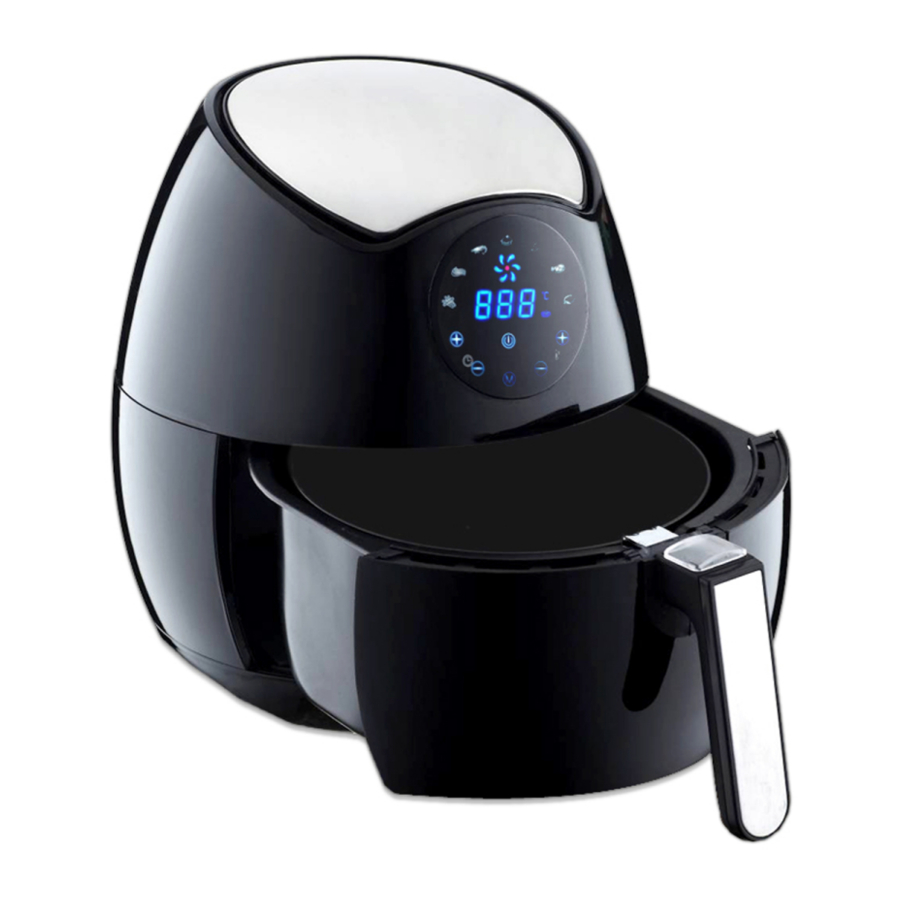

General description

1. Pan
2. Basket
3. Basket release button
4. Basket handle
5. Power-on knob/Pause knob
6. LCD with Touch screen (Liquid Crystal Display)
7. Cancel knob on LCD display
8. Timer control (0-30min.)
9. Temperature control (80-200℃)
10. Menu for cooking system (touch "M" to change and choose cooking system)
11. Air inlet
12. Air outlet openings
13. Mains cord

Significance

Please read this manual carefully before any using of the appliance as dangers may occur under in correct operations.

• Do not immersing the housing in water or rinsing under the tap due to the electrical and heating components.
• Avoid any liquid enter the appliance to prevent from electric shock or short-circuit.
• Keep all ingredients in the basket to prevent any contact from heating elements.
• Do not cover the air inlet and the air outlet when the appliance is working.
•
  Fill the pan with oil may cause a fire hazard.
• Do not touch the inside of the appliance while it is operating.

• Check if the voltage indicated on the appliance fits the local mains voltage.
• Do not use the appliance if there is any damage on plug, main cord or other parts.
• Do not go to any unauthorized person to replace or fix damaged main cord.
• Keep the appliance and its mains cord out of the reach of children
• Keep the mains cord away from hot surfaces.
• Do not plug the appliance or operate on the control panel with wet hands.
• Make sure that the appliance be plugged to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• Do not connect appliance to an external timer switch.
• Do not place the appliance on or near combustible materials such as a tablecloth or curtain.
• Do not place the appliance against a wall or against other appliance. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.
• Do not place anything on top of the appliance.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and form the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance. Any accessible surfaces may become hot during use.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

• Ensure that appliance in placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments.
• The guarantee is invalid if the appliance is used for professional or semi-professional Purposes, or it is not used according to instructions.
  (Never use the appliance when the plug is damaged.)
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Automatic switch-off

The appliance has a build in timer, it will automatically shut down the appliance when count down to zero. You can manually switch off the appliance by knobbing down the cancel knob, it will automatically shut down the appliance in 25 seconds.

Electromagnetic fields (EMF)

The appliance complies with all standards regarding Electro-Magnetic fields(EMF).
Under proper handling there is no harm for human body based on available scientific evidence.

Before first use

1. Remove all packaging materials and stickers or labels.
2. Clean the basket and pan with hot water, with some washing liquid and a non-abrasive sponge. These parts are safe to be cleaned in dishwasher.
3. Wipe insede and outside of the appliance with a clear cloth. And there is no need to fill the pan with oil and frying fat as the appliance works on hot air.

Using the appliance

1. Place the appliance on a stable, horizontal and even surface.
   Do not place the appliance on non-heat-resistant surface.
2. Put the basket in the pan. (fig3)
   Do not fill the pan with oil or any other liquid.

3. Preheat the appliance for 3 minutes when it is cold. Press the WARM-UP knob first, and then press the START knob to start the appliance to warm up gradually. After the warming-up, carefully pull the pan out of the air fryer. (fig.4)


   The appliance will stop heating after the pan is pulled out, the air blower will stop in 5 seconds.
4. Place the ingredients in the basket, and then pull the basket into the appliance.(fig.5)

5. Select proper function and temperature for the ingredients. See section 'settings' in this chapter to determine the right temperature. (fig6)

   Notes:7 functions are provided: CHIP,CHICKEN,STEAK,SHRIMP,MEAT,CAKE,FISH. Press the function knob to select the proper function according to the ingredients. More flexible time setting and temperature were needed, adjustment can be made directly by pressing corresponding knobs. There are two knobs(TIME '+' & '-') in the control panel which can adjust time setting - Increase/Decrease 1 minute per a press or increase/decrease rapidly in the unit of 1 minute by long pressing. There are two knobs(TEMP '+' &'—') in the control panel which can adjust temperature setting - Increase/Decrease 5 degrees per a press or increase/decrease rapidly in the unit of 5 degrees by long pressing.
   5. Select proper function and temperature for the ingredients. 7 functions are provided: CHIP,CHICKEN,STEAK,SHRIMP,MEAT,CAKE,FISH. Press the function knob to select the proper function according to the ingredients and then press Start knob, the appliance will run and heating the ingredient. Repeat Finger touch "M" to change and choose the cooking function.
   6. Notes:7: More flexible time setting and temperature were needed, adjustment can be made directly by pressing corresponding knobs. There are two knobs(TIME '+' & '-') in the control panel which can adjust time setting - Increase/Decrease 1 minute per a press or increase/decrease rapidly in the unit of 1 minute by long pressing. There are two knobs(TEMP '+' &'—') in the control panel which can adjust temperature setting - Increase/Decrease 5 degrees per a press or increase/decrease rapidly in the unit of 5 degrees by long pressing.
6. The heating-up icon and blower icon will be blinking during the running of the applicant.(Fig. 7)


   During the hot air frying process, the heating-up icon blinks and goes out from time to time. This indicates that the heating element is switched on (temperature reaches the setting) and off (temperature drops below the setting) to maintain the set temperature.
7. To switch on the appliance, turn the timer knob to the required preparation time. The timer begins to run.
8. Oil from the ingredients will gather in the bottom of the pan.
9. Some ingredients require to shake halfway during the prrparation time (see section 'settings' in this chapter). By this way, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer. (Fig.8)


Do not press the button of the handle during shaking (fig.9)

Tip: You can remove the basket from the pan and shake the basket only to reduce the weight. Do like this, pull the pan out of the appliance, place it on the heat-resistant holder and press the button of the handle. (Fig.10)

10. When you hear the timer rings for 5 times, the set preparation time has elapsed. Pull the pan out of the appliance and place it on the heat-resistant holder. Note: After the timer rings for 5 times, the air blower will stop in 20 seconds.
11. Check if the ingredients are ready.
    Note: If the ingredients are not ready yet, simply slide the pan back into the appliance and adjust the settings of TIME&TEMP.
    If the ingredients are not ready yet, simply slide the pan back into the appliance. Press the temperature control knob to adjust Temperature setting, and press the Timer control knob to adjust time setting. And then press the Start knob to run the appliance.
12. To remove ingredients, press the basket release button and lift the basket out of the pan (fig. 11)


Note: Do not turn the pan over, the oil collected on the bottom of the pan will leak onto the ingredients.

12. Empty the basket into a bowl or onto a plate.
    Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs.
13. When a batch of ingredients is ready, the magic fryer is instantly ready for preparing another batch.

Settings

This table below will help you to select the basic settings for the ingredients.
Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best setting for your ingredients. Because the Rapid Air technology reheats the air inside the appliance instantly, pull the pan briefly out of the appliance during hot air frying barely disturbs the process.

Tips

• Small ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes and fry your ingredients for another few minutes then for a crispy result.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Snacks can be prepared in an oven can also be prepared in the air fryer.
• The optimal amount for prepare crispy fries is 500 grams.
• Use pre-made dough to get snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• Please a baking tin or oven dish in the fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the air fryer to heat ingredients. To heat ingredients, set the temperature to 150℃ for up to 10 minutes.

Making home-made fries

To make home-made fries, follow the steps below:

1. Make the potatoes peel and slice.
2. Wash the potato sticks thoroughly and dry them with kitchen paper.
3. Pour 1/2 tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks are coated with oil.
4. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the sticks in the basket.
5. Fry the potato sticks according to the instructions in this chapter.

Cleaning

Clean the appliance after every use.
Do not clean the pan, basket and the inside of the appliance by metal kitchen utensils or abrasive cleaning materials, as this may damage the non-stick coating of them.

1. Remove the mains plug from the wall socket to make the appliance cool down.
   Note: Remove the pan to let the fryer cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth.
3. Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge.
   You can remove any remaining dirt by degreasing liquid.
   Note: The pan and basket are dishwasher-proof.
   Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes.
4. Clean the inside of the appliance with hot water and non-abrasive sponge.
5. Clean the heating element with a cleaning brush to remove any food residues.

Storage

1. Unplug the appliance and let it cool down thoroughly.
2. Make sure all parts are clean and dry.

Environment

Do not throw away the appliance with the normal household waste when it is exhausted, but hand it in at official collection point for recycling. By doing this, you do contribution to environmental protection.

Troubleshooting
