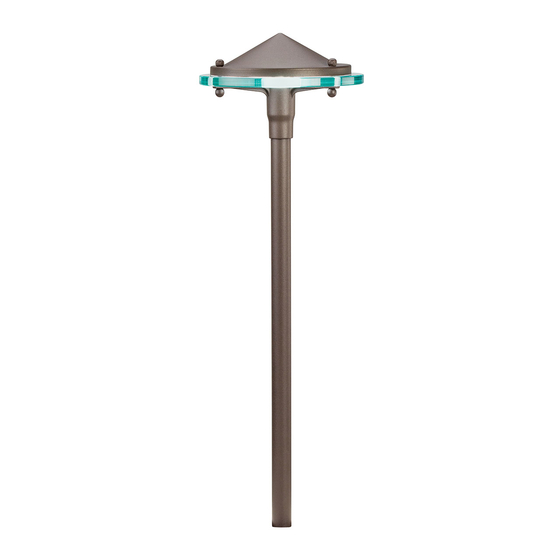

Kichler Lighting 15317AZT Quick Start Manual

SAFETY INSTRUCTIONS

READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National
Electric Code (NEC) and Local code specifications. Failure to adhere to
these codes and instructions may result in serious injury and/or property
damage and will void the warranty.
1) WARNING: This fixture is not to be installed within 10 feet (3M) of a pool,
spa or fountain.
2) This fixture is to be used only with a power unit (transformer) rated a maximum
of 300 W (25 AMPS) 15 volts.
3) The #18 ga. fixture wire is not intended for direct burial.
4) Direct burial rated wire is to be buried a minimum of 6" (152mm) beneath
the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact your local
Kichler landscape distributor.
®
• 8 GA wire can be purchased in length of 250' (76 M), 15503-BK.
• 10 GA wire can be purchased in length of 250' (76 M), 15504-BK.
• 12 GA wire can be purchased in lengths of 100' (30 M), 15501-BK; 250'
(76 M), 15502-BK; 500' (152M), 15505-BK; and 1000' (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the fixture is marked
for use with such lamps.
6) Wiring connections must be made with approved/listed wire connection
device(s) suitable for the application. Do not exceed manufacturers' wiring
combination specifications for size and quantity of conductors.

ASSEMBLY AND INSTALLATION

1) Determine desired location for mounting fixture.

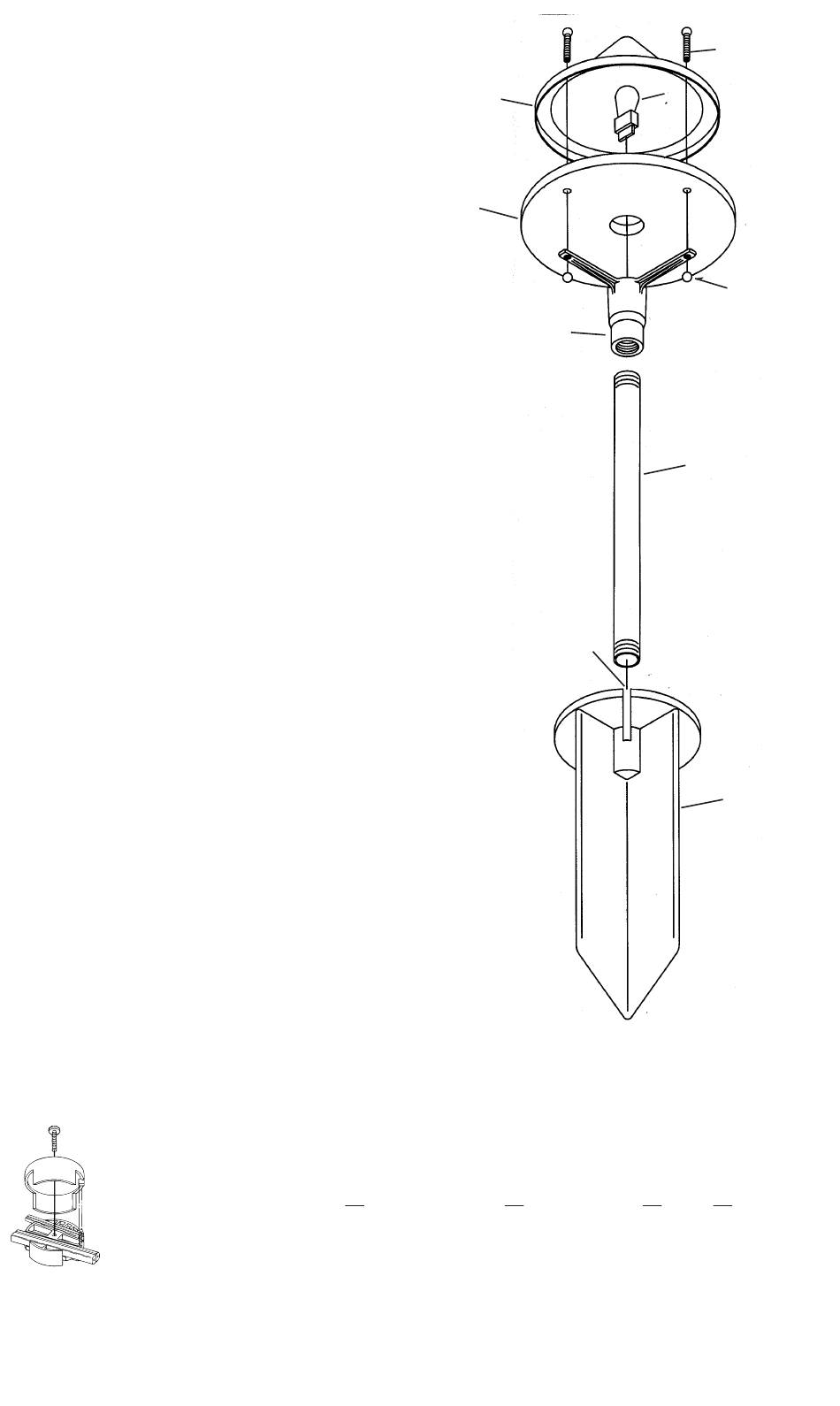

2) At desired location, hammer stake (A) into ground. To avoid damage to
stake, place a board on top of stake while hammering. If ground is hard
and stake is difficult to install, make a crosscut in ground using a flat
shovel.
3) Clear away area in ground at wireway slot (B) in top of stake (A).
4) Run 12V cable from fixture body (D) through stem (C).
5) Screw stem (C) into fixture body (D).
6) Lay 12V cable into wireway slot (B) and screw stem (C) into stake (A). If
assembly does not look straight, adjust by pushing or pulling on stake only.
7) Install provided lamp (E) to socket inside fixture body (D)
8) Slip glass (F) over lamp (E) and align holes in glass with holes in legs on
fixture body (D).
9) Lay roof (G) over glass (F) aligning holes in roof with holes in glass and
legs.
10) Slip ball screws (H) through holes in roof (G), glass (F) and legs then
secure together using ball knobs (J). (NOTE: Slip in all three ball screws
before threading on ball knobs. DO NOT OVER TIGHTEN, finger tight is
sufficient.)
11) TURN OFF POWER.
12) Make wire connections using supplied Quic Disc
below, or using other approved wiring connection method (not supplied.)
Turn off power.
The full length of the 18 GA fixture wire may be used to connect with the 10 GA or 12 GA cable provided the following conditions are met:
• Wiring is to be protected by routing close to the fixture or accessory or secured to a building structure such as house or deck.
• 18 GA fixture wiring is to be cut off so that it is attached to the connector within 6 inches of the fixture or building structure.
• If it is necessary to make the connections underground, then no more than 6 inches of the 18 GA fixture wire is to be buried.
The Quic Disc
Place the 10 gauge supply wire across the area marked 10 GA on Quic Disc
on Quic Disc
Place the 18 gauge fixture wire across the area marked 18 GA on the Quic Disc
to the base with supplied screw, making sure that the wires remain flat in the bottom portion of the Quic Disc™, and the screw is tightened all
the way down.
The copper contacts will automatically pierce the wires' insulation. Excess 18 GA fixture wire that sticks out the end of the Quic Disc
Make no other wiring connections to the 18 GA fixture wire.
Date Issued: 12/2/11
following instructions
™
connector is designed to install one fixture and accommodates one 18 GA fixture wire and one 10 GA or one 12 GA supply wire.
™
.
™
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page
G
F
QUIC DISC WIRING INSTRUCTIONS
™
or place the 12 gauge supply wire across the area marked 12 GA
™
. After the wires are in place, connect the top of the Quic Disc
™
E
D
C
B
is to be cut off.
™
H
J
A
™
IS-15317-US
