- Page 1 2mm Drill bit...

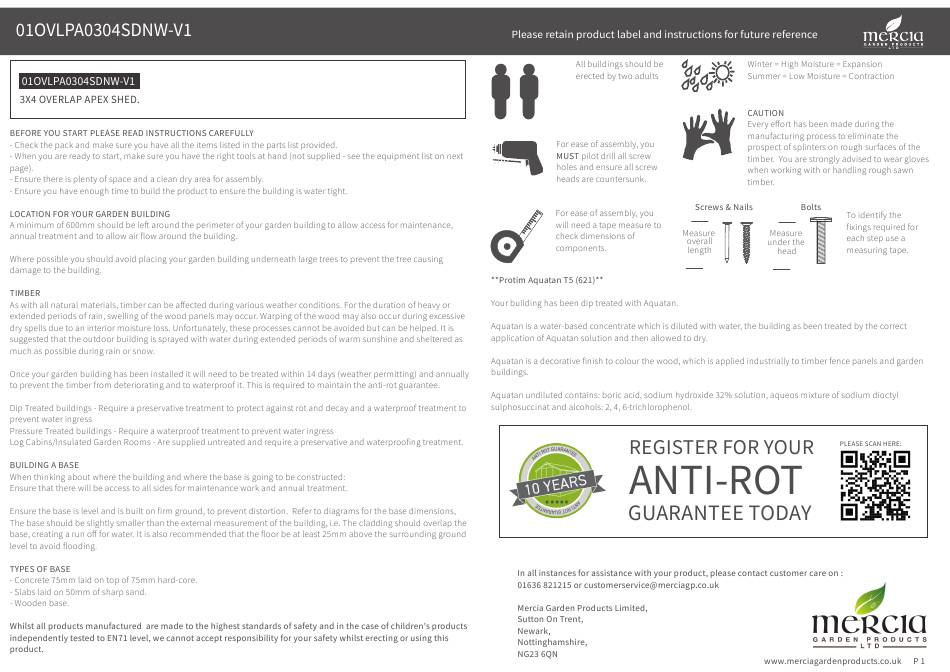

- Page 3 Before assembly Ridge Bar - 28x28x744mm QTY 1 please make sure you have a F2828-744mm suitable base ready to erect your building Eave Frame - 28x28x835mm QTY 2 F2828-835mm Fascia - 12x60x694mm QTY 4 S1260-694mm MADE IN GREAT BRITAIN Door Strip - 12x28x1530mm QTY 2 S1228-1530mm Overall Dimensions: Base Dimensions:...
- Page 4 IMPORTANT: Pre-drill before xing screws. Pre Assembly Step 2 Parts Needed - No. 4 QTY 1 Before assembling remove the transportation blocks from the bottom of each panel. Place the oor (No. 4) onto a rm and level base. Ensure your base has Take care removing the blocks as to not damage suitable drainage and is free from the panels.
- Page 5 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed - No. 5 QTY 2 No. 2 QTY 1 No. 8 QTY 2 Rest the assembled door gable Attach an eave frame (No.
- Page 6 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 QTY 1 Parts Needed - No. 11 QTY 4 Cut the felt into 8 sheets measuring 940mm (L) Fix the cover trims (No. 11) to the x 300mm (W) and lay onto the roof as shown in corners of the building, securing each the diagram, allowing approximately 50mm of...
- Page 7 Step 11 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 10 QTY 2 Secure the door strips (No. 10) to the inside of the door gable, xing each strip into place with 4x30mm screws. 8x30mm Screws 30mm Pre drill screw hole It is ESSENTIAL that you apply wood...
