Summary of Contents for Datalogic Magellan CSS4400

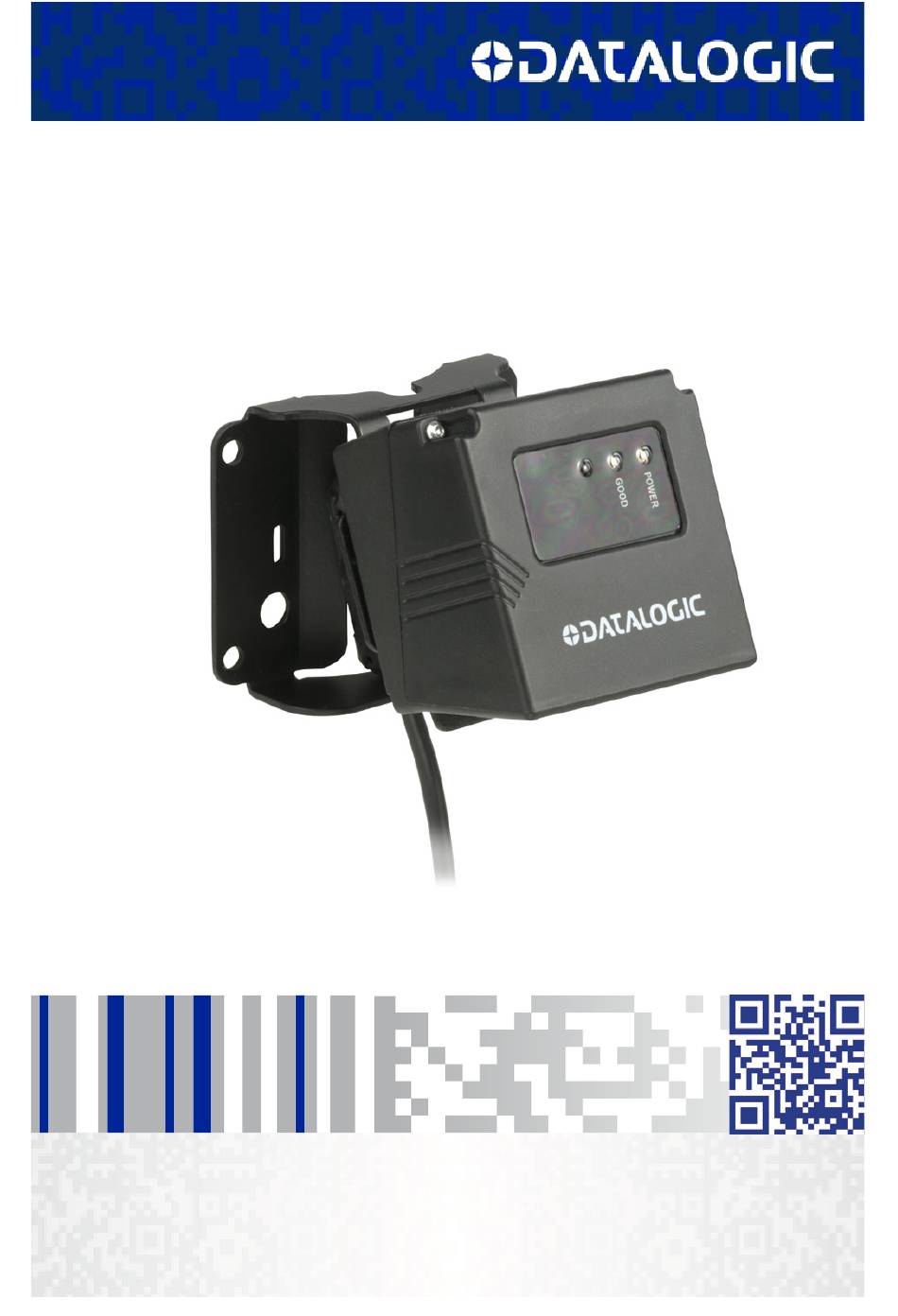

- Page 1 Magellan CSS4400 Customer Service Scanner Quick Reference Guide...
- Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. All other brand and prod- uct names may be trademarks of Datalogic S.p.A. or of Datalogic Group com- panies, registered in many countries, including the U.S. and the E.U.
-
Page 3: Table Of Contents
Table of Contents Features......................2 Connection..................... 3 Mounting Bracket ..................4 Standard Mounting Bracket ............... 4 Wall Mount.................. 4 Under Shelf Mount ..............5 Pole Mount .................. 5 Mast Mounts..................6 Side Mast Mount ................ 6 Back Mast Mount ............... 6 Programming .................... - Page 4 Datalogic USA, Inc. Limited Factory Warranty ........20 Warranty Coverage ..............20 Warranty Claims Process ............21 Warranty Exclusions ..............21 No Assignment ................. 22 Risk of Loss................22 Services and Support ................. 23 Customer Service Scanner...

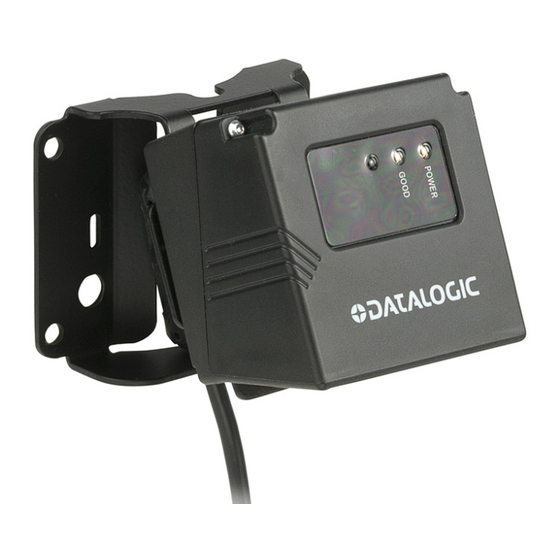

- Page 5 Customer Service Scanner (CSS) For the purposes of this manual, the Customer Service Scanner can alternatively be termed as the ”scanner,” or the ”CSS.” The CSS is a standard range 2D bar code scanning module which can be optionally teamed with an in-counter Magellan 9300i or 9400i scanner to provide a convenient means for customers to scan their own coupons or input other images to the system.
-
Page 6: Features
Features Features CSS features offer ease of use and maintenance: The illuminated area beneath the CSS is where the bar code label should be placed to be read. For accurate scanning, align the bar code with the Green Spot in its center. In addition, visual feedback for good read is indicated by the Green Spot turning off, then back on. -
Page 7: Connection
Connection Connection The CSS connects directly to either of the two stacked USB ports on the connection bulkhead of the Magellan 9300i or 9400i scan- ner (see Figure 3), and is powered via this connection. No addi- tional power supply is required. Figure 3. -
Page 8: Mounting Bracket
Mounting Bracket Mounting Bracket Your scanner kit typically includes a mounting bracket which was pre-selected for its suitability to your installation. Generally, you should mount the face of the CSS 6 cm to 18 cm above the surface to be scanned. Standard Mounting Bracket The Standard Mounting Bracket offers several different options for mounting the CSS, as well as routing features for its cable. -
Page 9: Under Shelf Mount
Mounting Bracket Under Shelf Mount If the CSS is to be mounted beneath a shelf, counter, or other hor- izontal surface; the mounting plate can be carefully bent to the necessary angle as shown in Figure Figure 5. Mounting Under a Shelf Pole Mount The Standard Mount will also permit the CSS to be secured to a pole or post as demonstrated in... -
Page 10: Mast Mounts
Mounting Bracket Mast Mounts Two types of Mast Mounts are available that allow convenient in- stallation of the CSS in a position adjacent to the scanner’s bon- net. When installing a Mast Mount, remove the plug from the desired mount location. Retain the plug for re-installation in case the mount is ever removed. -
Page 11: Programming
Programming can also be performed using the Datalogic Alad- din™ Configuration application, which is downloadable from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates with the device via its USB cable and can also create configuration bar codes to print. -
Page 12: Resetting Product Defaults
Aladdin™ Configuration Utility on page Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This provides our cus- tomers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed... -
Page 13: Reading Parameters
Reading Parameters Reading Parameters Place the bar code to be read beneath the CSS, then center it at an appropriate distance and within the illuminated area (see Figure 8) to capture and decode the image. The illumination will remain on. Aiming System Position the bar code with the Green Spot at its center. -
Page 14: Technical Features
Technical Features Technical Features Item Description Physical Characteristics Color Black Height 1.54" / 39mm Dimensions Length 2.24" / 57mm Width 2.28" / 58 mm Weight (with cable, Approximately 6.3 ounces/170 g without bracket) Electrical Characteristics 5 VDC ± 5% Input Voltage Overvoltage tolerant to 14VDC Current &... - Page 15 Technical Features Item Description Performance Characteristics Nominal Frame Rate 53 frames/second Light Source Dual Red LEDs Roll (Tilt) Tolerance Up to ± 180° Pitch Tolerance ± 40° Skew (Yaw) Tolerance ± 40° Print Contrast Minimum 25% minimum reflectance Field of View 40°...
- Page 16 Code 128; Code 128 ISBT; Interleaved 2 of 5 ; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chinese 2 of 5); IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar;...
- Page 17 Technical Features Item Description User Environment Operating Temperature -4° to 122° F (-20° to 50° C) Storage Temperature -4° to 158° F (-20° to 70° C) Operating: 5% to 90% relative humidity, non condens- Humidity Drop specifications 5 drops from 30 inches (0.76 mt.) to concrete Ambient Light immunity Up to 100,000 Lux Contaminants...
-
Page 18: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications LED Status The CSS provides two indicator LEDs: ON = Power ON POWER (Yellow LED) OFF = Power OFF POWER ON = Good Read GOOD GOOD Blinks = USB enumeration or (Green LED) interface inactive or waiting for change of configuration Indicators... - Page 19 Indicators Indicator Description Beeper The default setting The CSS is in the is for the CSS to be Power-up process of power- silent upon ing-up. power-up. The default setting The Magellan is that the green 93/9400 scanner A label has been indicator LED will will force the CSS Good Read...
-
Page 20: Programming Mode Indications
Programming Mode Indications Programming Mode Indications The following indications ONLY occur when the CSS is in Program- ming Mode Indicator Description Beeper A valid programming The CSS sounds Label Program- LED blinks con- label has been four low fre- tinuously ming Mode Entry scanned. -
Page 21: Error Mode
Error Mode Error Mode Upon attaching the USB cable at startup, the CSS powers up. If the CSS fails its automatic Selftest, it will enter an Error Mode which is indicated four to five seconds after startup: • The beeper will sound an error tone for approximately one second. - Page 22 Error Mode Figure 9. CSS Dimensions Scan Window Side Side View 57.1 mm Read Line 39.04 mm 19.8 mm 58 mm 50.97 mm Back Side M3 Inserts (X4) 7.8 mm 15.44 mm 25.5 mm 45 mm 3.56 mm 11.2 mm Customer Service Scanner...
-
Page 23: Ergonomic Recommendations
Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury, follow the recommendations below. Consult with your local Health & Safety Man- ager to ensure that you are adhering to your com- CAUTION pany’s safety programs to prevent customer or employee injury. -
Page 24: Datalogic Usa, Inc. Limited Factory Warranty
Customer shall be responsible for packaging and shipping the product to the designated Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located. -
Page 25: Warranty Claims Process
Datalogic service center, with shipping charges prepaid. Dat- alogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. -
Page 26: No Assignment
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Data- logic. Datalogic shall assume risk of loss or damage for product in Datalog- ic’s possession. In the absence of specific written instructions for the... -
Page 27: Services And Support
Services and Support Services and Support Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the links indicated for further information. Products Search through the links to arrive at your product page where you can download specific Manuals and Software &... - Page 28 Services and Support NOTES Customer Service Scanner...
- Page 29 Services and Support NOTES Quick Reference Guide...
- Page 30 Services and Support NOTES Customer Service Scanner...
- Page 32 © 2014-2017 Datalogic S.p.A. and its Group companies • All rights reserved. • Protected to the fullest extent under U.S. and international laws. • Copying or altering of this document is prohibited without express written consent from Datalogic S.p.A. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.
