AXIS Camera Station S22 Appliance Series
AXIS Camera Station S2208 Appliance
AXIS Camera Station S2212 Appliance
AXIS Camera Station S2216 Appliance
AXIS Camera Station S2224 Appliance
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S22 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis S22 Series

Summary of Contents for Axis S22 Series

  • Page 1 AXIS Camera Station S22 Appliance Series AXIS Camera Station S2208 Appliance AXIS Camera Station S2212 Appliance AXIS Camera Station S2216 Appliance AXIS Camera Station S2224 Appliance User manual...
  • Page 2 AXIS Camera Station video management software including licenses plus all necessary system software. AXIS Camera Station offers an intuitive user interface that allows users to take full advantage of Axis wide range of video surveillance cameras and other IP products. With the operating system stored on a solid-state drive (SSD) and 5-year hardware warranty, the appliance series provides a reliable surveillance solution.
  • Page 3 The built-in switch’s DHCP server is enabled by default. As soon as you plug the cameras into the PoE ports, the cameras will power on and obtain an IP address and be accessible via AXIS Camera Station.
  • Page 4 Note When you use an additional recorder, for example, the AXIS S30 Recorders, the appliance does not route network data from the surveillance network to the server network for recording. Make sure that the AXIS S30 Recorders are connected to...
  • Page 5 IP: 192.168.0.xxx IP: xxx.xxx.xxx.xxx IP: 192.168.0.xxx Difficulty level Advanced Benefits Ability to use an AXIS Camera Station client to connect to S22 series over the network. Network segregation Limitations May require you to follow corporate network polices Actions needed Change the default password for the built-in switch...
  • Page 6 AXIS Camera Station S22 Appliance Series Setup examples Audio line out (front side)
  • Page 7 5. Configure AXIS Camera Station 6. Register you AXIS Camera Station licenses. License a system online on page 22 License a system offline on page 23 7. Connect your system to the AXIS Camera Station mobile viewing app. See Configure AXIS Secure Remote Access...
  • Page 8 AXIS Camera Station S22 Appliance Series Install your device Install your device...
  • Page 9 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 10 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 11 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 12 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 13 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 14 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 15 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 16 AXIS Camera Station S22 Appliance Series Install your device...
  • Page 17 AXIS Camera Station S22 Appliance Series Install your device...

  • Page 18: First-Time Configuration

    Log in to AXIS Camera Station server Using the AXIS Camera Station client, you can connect to multiple servers or a single server installed on the local computer or somewhere else on the network. You can connect to AXIS Camera Station servers in different ways: Last used servers - Connect to the servers used in the previous session.
  • Page 19 To import a server list file exported from AXIS Camera Station, click Import server list and browse to an .msl file. To delete saved usernames and passwords all connected servers, click Delete saved passwords.
  • Page 20 Start AXIS Camera Station Double-click the AXIS Camera Station client icon to start the client. When you start the client for the first time, it attempts to log in to the AXIS Camera Station server installed on the same computer as the client.

  • Page 21: Export Recordings

    Network configuration When AXIS Camera Station client, AXIS Camera Station server, and the connected network devices are installed on different networks, you might need to configure proxy or firewall settings before using AXIS Camera Station. Client proxy settings When the client and the server are separated by a proxy server, configure the client proxy settings.

  • Page 22: Server Port Configuration

    When the client and the server are separated by a NAT, firewall or similar, configure the NAT or firewall to ensure that the HTTP port, TCP port, and streaming port specified in AXIS Camera Station Service Control are allowed to pass through the firewall and/or NAT.
  • Page 23 1. In the AXIS Camera Station client, export the system file. 1.1 Go to Configuration > Licenses > Management. 1.2 If AXIS Camera Station is online, turn off Manage licenses online and click Export system file. 1.3 If AXIS Camera Station is offline, click Export system file.
  • Page 24 AXIS Camera Station S22 Appliance Series Manage Windows® user accounts Manage Windows® user accounts Create a user account To help keep your personal data and information more secure, we recommend that you add a password for each local account. Important Once you create a password for a local account, don't forget it.
  • Page 25 AXIS Camera Station S22 Appliance Series Manage Windows® user accounts 1. Go to Settings > Accounts > Other people. 2. Go to the account you want to remove and click Remove. Change a user account's password 1. Log in with an administrator account.
  • Page 26 Manage AXIS Camera Station user accounts Manage AXIS Camera Station user accounts Configure user permissions Go to Configuration > Security > User permissions to view a list of the users and groups that have been added to AXIS Camera Station. Note Administrators of the computer on which the AXIS Camera Station server is installed are automatically given administrator privileges to AXIS Camera Station.
  • Page 27 4. Select Users or Groups to search for only users or groups. 5. The list of users or groups is displayed. Users and groups that have already been added to AXIS Camera Station are not listed. If there are too many users or groups, the search result is not displayed. Use the Type to search field to refine the search and find a specific user or group.
  • Page 28 The following access privileges are available for users or groups with the Operator or Viewer role. You can select multiple views and set the access privileges. • Access: Allow access to the views in AXIS Camera Station. • Edit: Allow to edit the views in AXIS Camera Station.
  • Page 29 AXIS Camera Station S22 Appliance Series Manage your device Manage your device Update Windows® Windows® 10 periodically checks for updates. When an update is available, your device automatically downloads the update but you've to install it manually. Note Recording will be interrupted during a scheduled system restart.
  • Page 30 AXIS Camera Station S22 Appliance Series Manage your device 3.1 Enabled 3.2 Click OK. Reset your server You can use the server reset button to reset your server. It will take more than one hour to reset your server. 1. Power off your device.
  • Page 31 Manage the built-in switch About the built-in switch The AXIS Camera Station S22 Appliance Series comes with an integrated Power over Ethernet (PoE) switch. You can configure and manage the built-in switch. The purpose of the switch is to segregate traffic on the network so that security cameras and related traffic managed by the switch (PoE ports and U1 network uplinks) are not shared with other networks.
  • Page 32 AXIS Camera Station S22 Appliance Series Manage the built-in switch Category Item Description Ports summary Active ports The number of ports that are in use. Ports using PoE The number of ports with PoE enabled that are in use. Locked ports The number of ports that are locked.

  • Page 33: Power Management

    AXIS Camera Station S22 Appliance Series Manage the built-in switch Note You can also turn on and turn off PoE in the Power management page. Lock and unlock ports You can lock a MAC address to a port so that only traffic coming from that MAC address will pass. This improves security and prevents unauthorized users from connecting a laptop or other devices to the security network.
  • Page 34 AXIS Camera Station S22 Appliance Series Manage the built-in switch The power in watts requested by the device connected to the port. Power requested (W) Only available when you select Reserved power as the power allocation method. Manually adjust the power allocated to the port.
  • Page 35 AXIS Camera Station S22 Appliance Series Manage the built-in switch • Each port reserves the amount of power according to the device’s PoE class. • The switch can power 4 PoE class 4 devices and 2 PoE class 2 devices.

  • Page 36: Configure Network Settings

    AXIS Camera Station S22 Appliance Series Manage the built-in switch • The actual power consumed is (5 x 15) + (3 x 5) = 90 W. • In this way, all connected devices are guaranteed enough power and the priority is less important.

  • Page 37: Configure Dhcp Server

    Important If the switch’s DHCP server is enabled and your AXIS Camera Station S22 Appliance is connected to an external network with its own DHCP server, you will have IP address conflicts. This might result in the corporate network not working.

  • Page 38: Maintenance

    AXIS Camera Station S22 Appliance Series Manage the built-in switch Maintenance Update firmware 1. In the switch’s management page, go to Maintenance > Update firmware. 2. Drag and drop the firmware file or click Browse and navigate to the firmware file.

  • Page 39: Change Password

    You can change the switch's default password to a password you choose yourself. Important Ensure you select a password you remember. If you have forgotten the new password, contact Axis support. 1. In the switch’s management page, go to Maintenance > Change password.

  • Page 40: Front Side

    AXIS Camera Station S22 Appliance Series Product overview Product overview Front side Audio in Audio out System power LED Disk activity LED Status LEDs of PoE ports USB 3.0...

  • Page 41: Rear Side

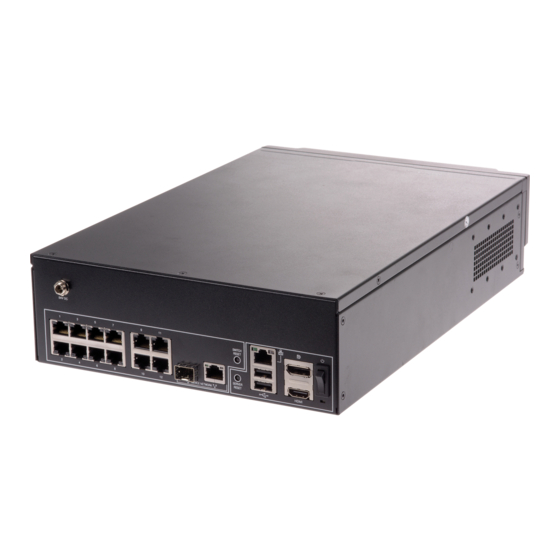

    AXIS Camera Station S22 Appliance Series Product overview Rear side Power connector PoE ports SFP switch uplink (U1) RJ45 switch uplink (U1) Switch reset button Server reset button USB 2.0 x2 RJ45 server uplink (U2) HDMI port 10 Displayport 11 Power button...

  • Page 42: Specifications

    AXIS Camera Station S22 Appliance Series Product overview Specifications Front LEDs LED indicator Color Indication Power Green Server on Network ports Green Link state Hard drive Blinks amber Hard drive activity Blinks red Possible hard drive failure Rear LEDs Network speed and activity...
  • Page 43 6. When you see the AXIS splash screen, press F12. 7. Click UEFI: USB Drive. 8. Navigate to your USB drive and press ENTER. The system boots into the AXIS Recovery Kit. 9. Click Reinstall Operating System. The recovery takes roughly 10 to 15 min to complete. You find detailed instructions in the download for the recovery kit.

  • Page 44: Useful Links

    AXIS Camera Station S22 Appliance Series Need more help? Need more help? Useful links • AXIS Camera Station user manual • Configure Axis Secure Remote Access • What to include in an Antivirus allowlist for AXIS Camera Station Contact support Contact support at axis.com/support.
  • Page 45 User manual Ver. M9.2 AXIS Camera Station S22 Appliance Series Date: October 2021 © Axis Communications AB, 2018 - 2021 Part no. T10134965...

This manual is also suitable for:

S2208S2212S2216S2224
