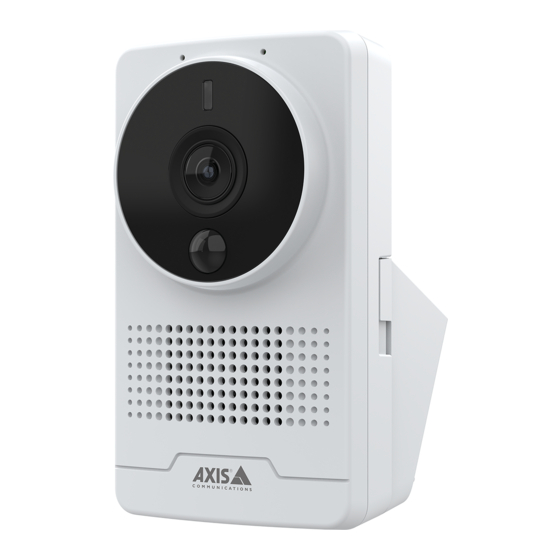

AXIS M1075-L Box Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1075-L and is the answer not in the manual?

Questions and answers

Related Manuals for Axis M1075-L

Summary of Contents for Axis M1075-L

  • Page 1 AXIS M1075-L Box Camera User Manual...

  • Page 2: Table Of Contents

    AXIS M1075-L Box Camera Table of Contents Get started ..........

  • Page 3: Get Started

    AXIS M1075-L Box Camera Get started Get started Connect the camera to a wireless network Before you start: • Find out more about the camera’s buttons and connectors. See Product overview on page 53. • Connect the wireless adapter to the camera’s USB connector.

  • Page 4: Find The Device On The Network

    5. Disconnect the network cable from the camera. Connect the power injector. Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Secure Passwords

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 56.

  • Page 6: Configure Your Device

    AXIS M1075-L Box Camera Configure your device Configure your device Basic settings Set the power line frequency 1. Go to Video > Installation > Power line frequency. 2. Select a power line frequency and click Save and restart. Set the orientation 1.
  • Page 7 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 8 AXIS M1075-L Box Camera Configure your device 1. Go to Video > Image and click 2. Click for Pixel counter. 3. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect faces to appear.

  • Page 9: View And Record Video

    AXIS M1075-L Box Camera Configure your device 7. Select the image and a position. You can also drag the overlay image in the live view to change the position. Show a text overlay You can add a text field as an overlay in the video stream. This is useful for example when you want to display the date, time or a company name in the video stream.
  • Page 10 With signed video, you can make sure that no one has tampered with the video recorded by the camera. 1. Go to Video > Stream > General and turn on Signed video. 2. Use AXIS Camera Station (5.46 or later) or another compatible video management software to record video. For instructions, see the AXIS Camera Station user manual.

  • Page 11: Set Up Rules For Events

    This example explains how to set up the camera to start recording to the SD card five seconds before it detects an object and to stop one minute after. Make sure that AXIS Object Analytics is running: 1. Go to Apps > AXIS Object Analytics.

  • Page 12: Audio

    AXIS M1075-L Box Camera Configure your device Create a rule: 1. Go to System > Events and add a rule. 2. Enter a name for the rule. 3. In the list of conditions, select Device status > PIR sensor. 4. Click + to add a second condition.

  • Page 13: The Device Interface

    AXIS M1075-L Box Camera The device interface The device interface To reach the device interface, enter the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. Show or hide the main menu.

  • Page 14: Video

    AXIS M1075-L Box Camera The device interface Video Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 15 AXIS M1075-L Box Camera The device interface • Refresh: Click to refresh the still image in the live view. Click to show the live view at full resolution. If the full resolution is larger than your screen size, use the smaller image to navigate in the image.
  • Page 16 AXIS M1075-L Box Camera The device interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 17 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 18 AXIS M1075-L Box Camera The device interface Synchronize illumination: Turn on to automatically synchronize the illumination with the surrounding light. The synchronization between day and night only works if the IR-cut filter is set to Auto or Off. Automatic illumination angle : Turn on to use the automatic illumination angle.
  • Page 19 AXIS M1075-L Box Camera The device interface Note The exposure zones are related to the original image (un-rotated), and the names of the zones apply to the original image. This means, for example, that if the video stream is rotated 90°, then the Upper zone becomes the Right zone in the stream, and Left becomes Lower.
  • Page 20 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 21 AXIS M1075-L Box Camera The device interface • Average: Select to automatically adjust the bitrate over a longer time period and provide the best possible image quality based on the available storage. Click to calculate the target bitrate based on available storage, retention time, and bitrate limit.

  • Page 22: Audio

    AXIS M1075-L Box Camera The device interface • Streaming indicator : Select to show an animation superimposed over the video stream. The animation indicates that the video stream is live, even if the scene doesn’t contain any motion. Appearance: Select the animation color and background color, for example, red animation on a transparent background (default).

  • Page 23: Recordings

    AXIS M1075-L Box Camera The device interface Output : Shows the type of output. Gain: Use the slider to change the gain. Click the speaker icon to mute or unmute. Stream Encoding: Select the encoding to use for the input source streaming. You can only choose encoding if audio input is turned on. If audio input is tuned off, click Enable audio input to turn it on.
  • Page 24 AXIS M1075-L Box Camera The device interface Ongoing recordings: Show all ongoing recordings on the cameras. Select to start a recording on the camera. Choose which storage device to save to. Select to stop a recording on the camera. Triggered recordings will end both when manually stopped and when the camera is shut down.
  • Page 25 AXIS M1075-L Box Camera The device interface Click to stop the recording.
  • Page 26 AXIS M1075-L Box Camera The device interface Click to show more information and options about the recording. Set export range: If you only want to export part of the recording, enter from when to when. Click to delete the recording.

  • Page 27: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.
  • Page 28 AXIS M1075-L Box Camera The device interface WLAN With a wireless USB adapter the device can connect to a wireless network. Add network: Click to add a wireless network that doesn’t broadcast its SSID (name). Enter the SSID and all the required settings for the network.
  • Page 29 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 30 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 31 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 32 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 33 AXIS M1075-L Box Camera The device interface A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 34 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 35 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 36 AXIS M1075-L Box Camera The device interface Connect: Turn on or off the MQTT client. Status: Shows the current status of the MQTT client. Broker Host: Enter the hostname or IP address of the MQTT server. Protocol: Select which protocol to use.
  • Page 37 AXIS M1075-L Box Camera The device interface QoS: Change the QoS layer for the packet flow. MQTT publication Use default topic prefix: Select to use the default topic prefix, that is defined in the device topic prefix in the MQTT client tab.
  • Page 38 AXIS M1075-L Box Camera The device interface • TLS port: The network port used for encrypted SIP communication. The signaling traffic through this port is encrypted with Transport Layer Security (TLS). The default port number is 5061. Enter a different port number if required.
  • Page 39 AXIS M1075-L Box Camera The device interface All current SIP accounts are listed under SIP accounts. For registered accounts, the colored circle lets you know the status. The account is successfully registered with the SIP server. There is a problem with the account. Possible reasons can be authorization failure, that the account credentials are wrong, or that the SIP server can’t find the account.
  • Page 40 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 41 AXIS M1075-L Box Camera The device interface Tools • Check: Check for errors on the SD card. This only works for the ext4 file system. • Repair: Repair errors in the ext4 file system. To repair an SD card with the VFAT file system, eject the SD card, insert it in a computer and perform a disk repair.
  • Page 42 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 43 AXIS M1075-L Box Camera The device interface Video out HDMI You can connect an external monitor to the device through an HDMI cable. Single source A stream from a single camera is displayed on the external monitor. • Source: Select only one camera.
  • Page 44 AXIS M1075-L Box Camera The device interface Indicators Indicators Tally LED: Use the tally LED to indicate when someone looks at the video stream. On: The LED is always on, even if no one streams video from the device. Off: The LED is always off, even if someone streams video from the device.
  • Page 45 Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page.

  • Page 46: Maintenance

    Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 47: Learn More

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 48 AXIS M1075-L Box Camera Learn more Variable bitrate (VBR) Variable bitrate allows the bandwidth consumption to vary depending on the level of activity in the scene. The more activity, the more bandwidth you need. With variable bitrate you are guaranteed constant image quality, but you need to make sure you have storage margins.

  • Page 49: Applications

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see the user manual.
  • Page 50 Certification Authority. The network authenticates the client using an identity and a password. To gain access to the protected network, the Axis product presents its identity and password to the network access point. If these credentials are approved, the access point allows access on a preconfigured port.

  • Page 51: Security

    Axis device ID Axis device ID works like a digital passport, unique for each device unit. It is securely and permanently stored in Edge Vault as a certificate signed by Axis root certificate. Axis device ID is designed to prove the origin of the device, enabling a new level of device trust through the life cycle of the product.
  • Page 52 Signed video hence makes it possible to trace the video back to the origin camera and verify that the video has not been tampered after it left the camera. To learn more about cybersecurity features in Axis devices, go to axis.com/learning/white-papers and search for cybersecurity.

  • Page 53: Specifications

    AXIS M1075-L Box Camera Specifications Specifications Product overview Microphone Status LED PIR sensor Speaker USB connector IR LED SD card slot MicroHDMI connector type D Control button 10 WLAN setup button 11 I/O connector 12 Network connector LED indicators Status LED...

  • Page 54: Buttons

    Specifications This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

  • Page 55: Cleaning Recommendations

    AXIS M1075-L Box Camera Cleaning recommendations Cleaning recommendations NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. 1. Use a can of compressed air to remove any dust or loose dirt from the device. 2. If necessary, clean the lens with a soft cloth dampened with lukewarm water.

  • Page 56: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 57: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 58: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 59: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 60 User Manual Ver. M1.18 AXIS M1075-L Box Camera Date: December 2022 © Axis Communications AB, 2022 Part No. T10180154...
