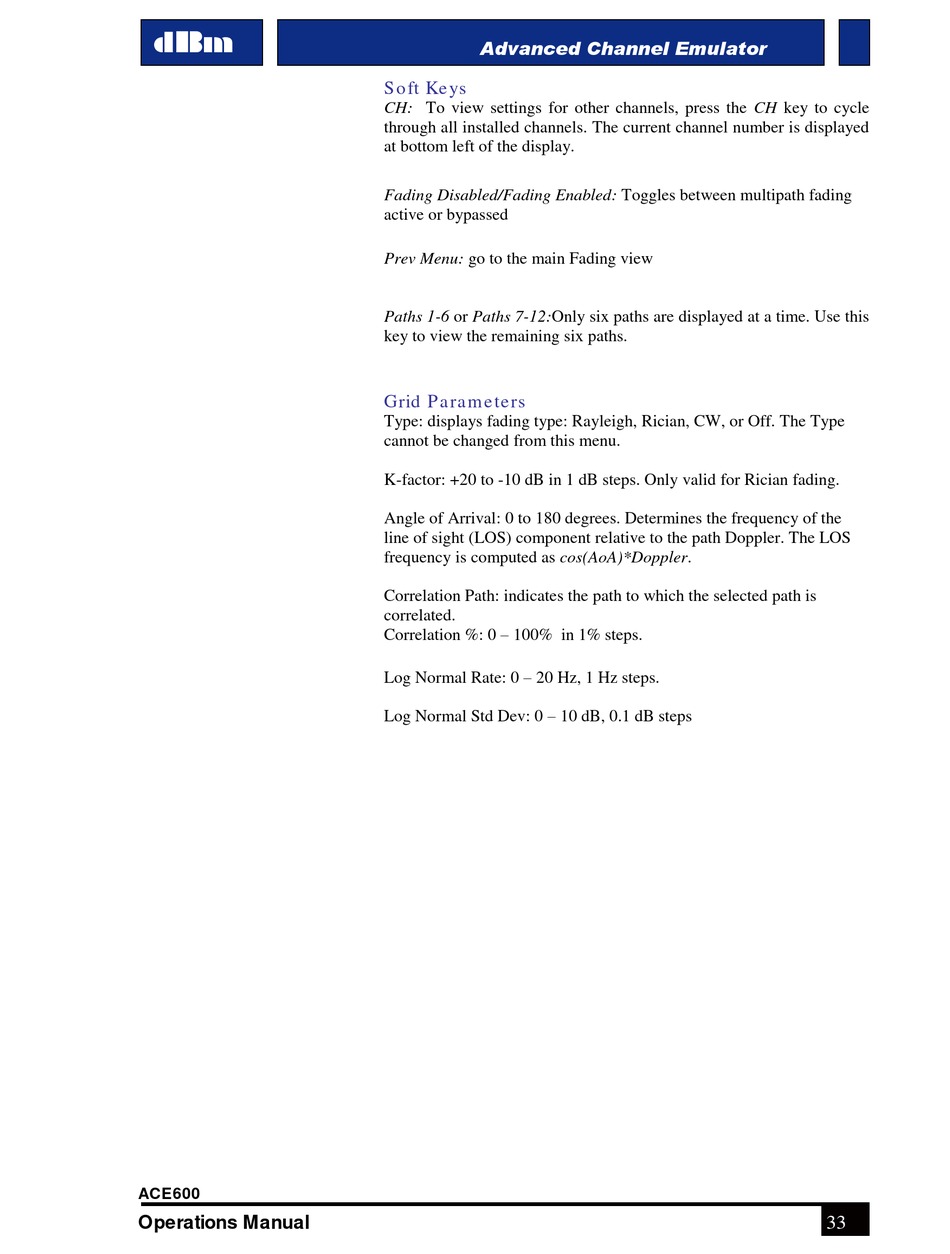

S o ft Ke ys
CH: To view settings for other channels, press the CH key to cycle
through all installed channels. The current channel number is displayed
at bottom left of the display.
Fading Disabled/Fading Enabled: Toggles between multipath fading
active or bypassed
Prev Menu: go to the main Fading view
Paths 1-6 or Paths 7-12:Only six paths are displayed at a time. Use this
key to view the remaining six paths.
Grid P a ra m e ters
Type: displays fading type: Rayleigh, Rician, CW, or Off. The Type
cannot be changed from this menu.
K-factor: +20 to -10 dB in 1 dB steps. Only valid for Rician fading.
Angle of Arrival: 0 to 180 degrees. Determines the frequency of the
line of sight (LOS) component relative to the path Doppler. The LOS
frequency is computed as cos(AoA)*Doppler.
Correlation Path: indicates the path to which the selected path is
correlated.
Correlation %: 0 – 100% in 1% steps.
Log Normal Rate: 0 – 20 Hz, 1 Hz steps.
Log Normal Std Dev: 0 – 10 dB, 0.1 dB steps
