Delay: 0 – 9.996 usec in 1 nsec steps.
Mu ltip ath S u bm e n u View
The multipath fading submenu is an extension of the fading main menu
to provide the additional controls for Rician K-factor, Angle of Arrival,
path correlation and Log Normal controls.
Any path can be correlated to any other path by a percentage ranging
from 0%(totally uncorrelated) to 100% (fully correlated).

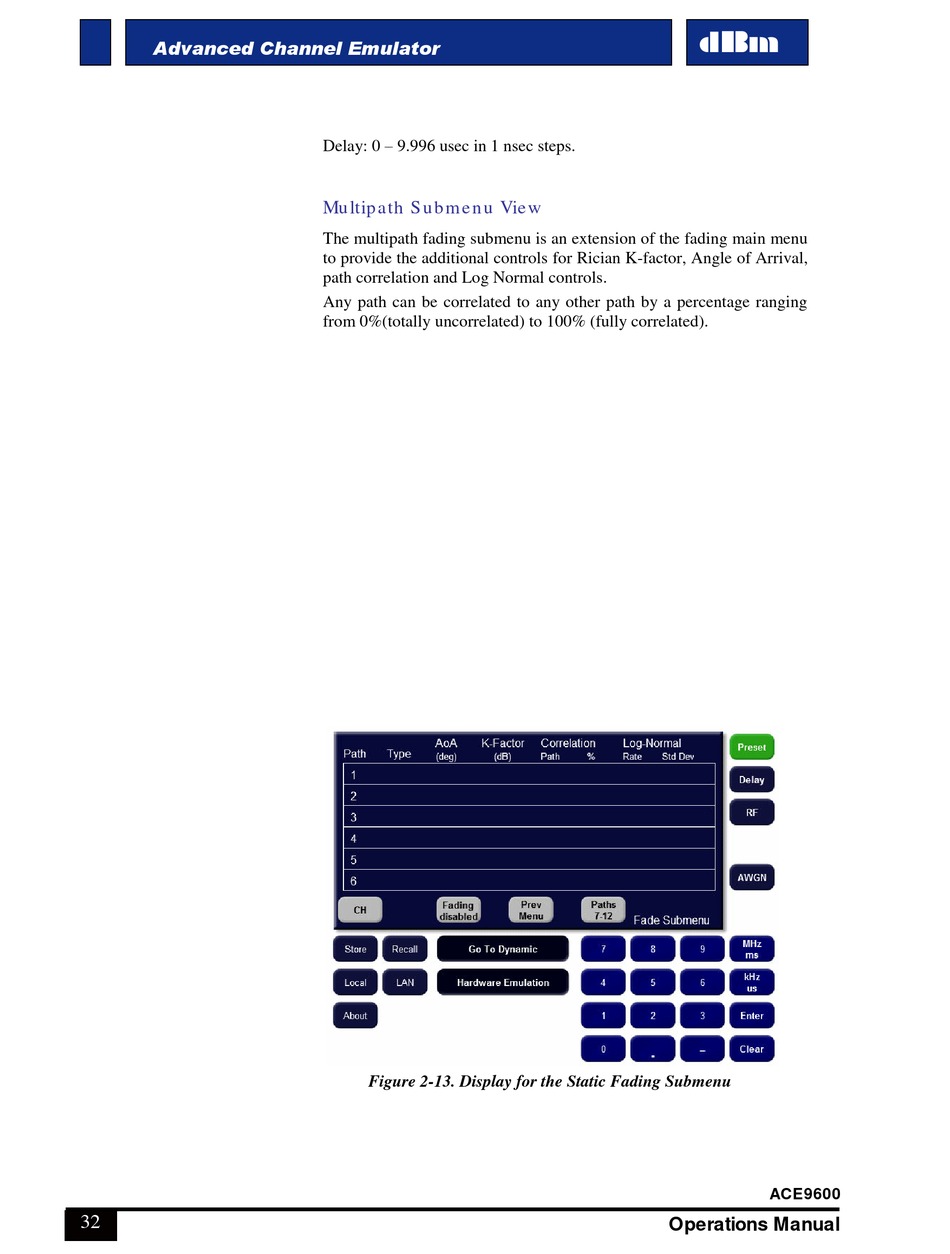

Figure 2-13. Display for the Static Fading Submenu
