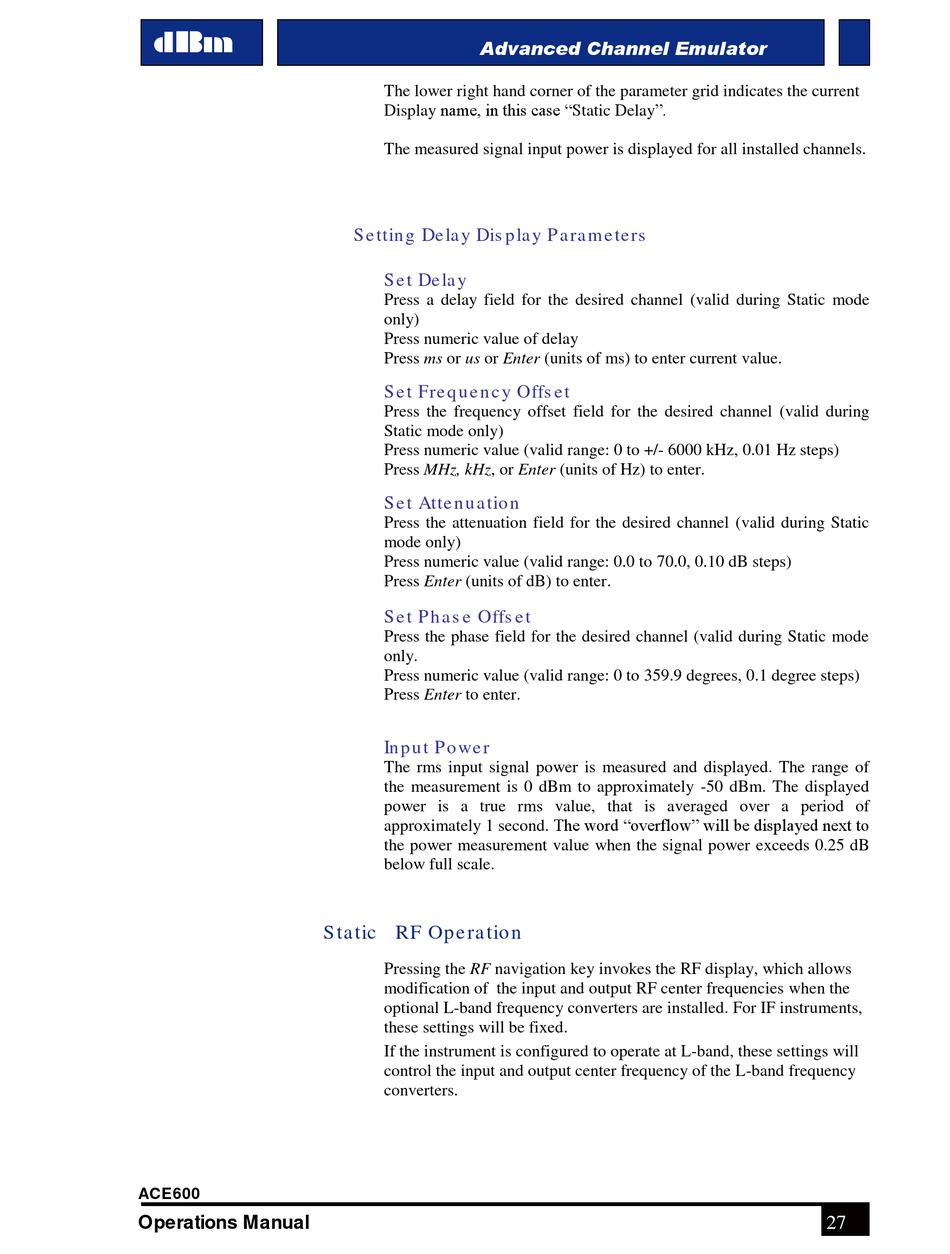

The lower right hand corner of the parameter grid indicates the current
Display name, in this case "Static Delay".
The measured signal input power is displayed for all installed channels.
S e ttin g De la y Dis p la y P a ra m e ters
S e t De la y
Press a delay field for the desired channel (valid during Static mode
only)
Press numeric value of delay
Press ms or us or Enter (units of ms) to enter current value.
S e t Fre q u e n c y Offs et
Press the frequency offset field for the desired channel (valid during
Static mode only)
Press numeric value (valid range: 0 to +/- 6000 kHz, 0.01 Hz steps)
Press MHz, kHz, or Enter (units of Hz) to enter.
S e t Atte n u a tio n
Press the attenuation field for the desired channel (valid during Static
mode only)
Press numeric value (valid range: 0.0 to 70.0, 0.10 dB steps)
Press Enter (units of dB) to enter.
S e t P h a s e Offs e t
Press the phase field for the desired channel (valid during Static mode
only.
Press numeric value (valid range: 0 to 359.9 degrees, 0.1 degree steps)
Press Enter to enter.
In p u t P owe r
The rms input signal power is measured and displayed. The range of
the measurement is 0 dBm to approximately -50 dBm. The displayed
power is a true rms value, that is averaged over a period of
approximately 1 second. The word "overflow" will be displayed next to
the power measurement value when the signal power exceeds 0.25 dB
below full scale.
S ta tic RF Op e ra tio n
Pressing the RF navigation key invokes the RF display, which allows
modification of the input and output RF center frequencies when the
optional L-band frequency converters are installed. For IF instruments,
these settings will be fixed.
If the instrument is configured to operate at L-band, these settings will
control the input and output center frequency of the L-band frequency
converters.
