BUMP HELMET
OPERATOR'S MANUAL
For FAST
Bump Helmet Systems
®
This product is covered by one or more patents.
For more information visit www.gentexcorp.com/patents
H11246 REV. A
Gentex Corporation
324 Main Street
Carbondale, PA 18407
© 2023 Gentex Corporation. Ops-Core is a registered trademark or Gentex Corporation or its affiliates.
ARC is a trademark of Gentex Corporation or its affiliates
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ops-Core FAST
Summary of Contents for Ops-Core FAST
- Page 1 For more information visit www.gentexcorp.com/patents H11246 REV. A Gentex Corporation 324 Main Street Carbondale, PA 18407 © 2023 Gentex Corporation. Ops-Core is a registered trademark or Gentex Corporation or its affiliates. ARC is a trademark of Gentex Corporation or its affiliates...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Helmet System Components Sizing Guide Retention System Operation Accessory Integration Modular Bungee Shroud PowerPath ARC Rails Cable Integration Exterior Loop Comms Headsets Maintenance & Storage Replacement Parts Operator Notes Warning & Warranty... -
Page 4: Introduction

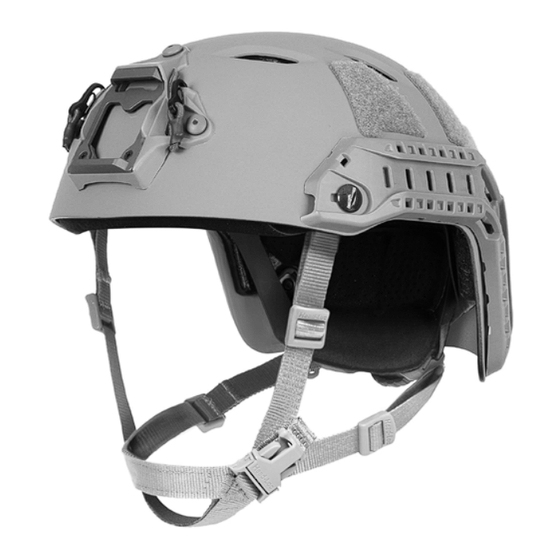

® ® The Ops-Core FAST Bump Helmet System is an innovative and advanced headborne protection platform providing protection from blunt impact, and environmental threats. The FAST Helmet System seamlessly integrates with Ops-Core total headborne system solutions including situational awareness, optical, and... -
Page 5: Helmet System Components
HELMET SYSTEM COMPONENTS Modular Bungee Shroud Exterior Loop Shroud Bungee PowerPath ARC Rail Low-Profile Head-Loc ™ Chinstrap Vented Front Brow Lux Liner Comfort Pad Adjustable Comfort Pads Adjustable Comfort Pads Universal Fitband Occ-Dial ™ Adjustment Knob... -
Page 6: Sizing Guide
SIZING GUIDE FAST helmets have been designed from the ground up to fit the largest group of users in helmet sizes that most closely match their heads. However, there is still a small percentage of users that will not fit our standard sizing configurations. -
Page 7: Retention System Operation
RETENTION SYSTEM OPERATION FASTEN THE CHINSTRAP Put the helmet on and fasten the chinstrap buckle. ADJUST THE OCC-DIAL Use your thumb to rotate the Occ-Dial Adjustment Knob to tighten the fitband until it is comfortably snug. Occ-Dial Adjustment Knob ADJUST REAR HEAD-LOC SLIDERS With both hands, pull the two Rear Head-Loc Sliders on the lower webbing straps toward your chin until snug. -
Page 8: Accessory Integration
ACCESSORY INTEGRATION ATTACHING ACCESSORIES TO THE HELMET There are three ways of attaching accessories to the Ops-Core FAST Helmet: The Modular Bungee Shroud, PowerPath ARC Rails and Exterior Loop. These three components provide convenient and secure ways to quickly attach and detach various accessories to different positions. -
Page 9: Modular Bungee Shroud
MODULAR BUNGEE SHROUD ABOUT THE MODULAR BUNGEE SHROUD The Modular Bungee Shroud (MBS) mounts to Ops-Core FAST helmets using the standard 3-hole pattern. The MBS has an integrated Night Vision Goggle (NVG) bungee that does not interfere with any other accessories, providing a low profile option for stabilizing NVGs. -
Page 10: Powerpath Arc Rails
Mandible Attachment ARC ADAPTERS The following adapters are commonly used for attaching accessories to the FAST Bump Helmet: Picatinny & Wing-Loc Adapters (A), O2 Single Strap Kit (B), and 36mm Goggle Swivel Clip Kit (C). Picatinny Wing-Loc O2 Strap Kit... -
Page 11: Cable Integration
CABLE INTEGRATION PowerPath ARC Rails provide a protective, snag-free cable management solution for NVG cables. REMOVE POWERPATH ARCS Use a screwdriver to remove the PowerPath ARC Rail from the helmet as shown. ROUTE THE CABLE Following the diagram below, route the cable through the underside of the PowerPath ARC Rail. -
Page 12: Exterior Loop
EXTERIOR LOOP EXTERIOR LOOP ACCESSORY ATTACHMENT Apply hook fastener to the bottom of a device and place device on top of the loop on the outside of the Ops-Core FAST Helmet shell. Side Exterior Loop Rear Exterior Loop Exterior Loop Top View... -
Page 13: Comms Headsets
COMMs HEADSETS COMMS HEADSET INTEGRATION The Vented Lux Liner is compatible with a variety of COMMs headsets and hearing protection devices. When using the helmet with a communications headset, remove the pads in the center channel of the Vented Lux Liner to allow room for the headset’s headband. -
Page 14: Maintenance & Storage
STORAGE The Ops-Core FAST Bump Helmet should be stored in the supplied helmet bag. Helmets will be packaged in B-flute corrugated cardboard during transport to the point of sale. -
Page 15: Replacement Parts
Our team of dedicated customer service and support professionals is highly trained on all aspects of our products and is available to assist you with all your needs, including checking the status of your order, billing, warranties and returns, orders, replacement parts, and technical support. Ops-Core Customer Service +1 617.670.3547 support@ops-core.com... -
Page 16: Operator Notes
OPERATOR NOTES... - Page 17 OPERATOR NOTES...
- Page 18 OPERATOR NOTES...
-
Page 19: Warning & Warranty
WARNING This helmet provides LIMITED protection for the head and does not offer any protection against neck, spinal, or certain types of brain injuries including those caused by rotational forces. Some hazards can exceed this helmet’s specified ability to provide protection and could cause serious injuries or death. This helmet is made to absorb the energy of a blow by partial destruction or damage to the shell, liner and the harness, and even though such damage may not be readily apparent, any helmet subjected to severe impact should be replaced.
