BUMP HELMET
OPERATOR'S MANUAL
This product is covered by one or more patents.
For more information visit www.gentexcorp.com/patents
UM-1057 REV-A
© 2019 Gentex Corporation. Ops-Core is a registered trademark or Gentex Corporation or its affiliates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fast Bump and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ops-Core Fast Bump

  • Page 1 BUMP HELMET OPERATOR’S MANUAL This product is covered by one or more patents. For more information visit www.gentexcorp.com/patents UM-1057 REV-A © 2019 Gentex Corporation. Ops-Core is a registered trademark or Gentex Corporation or its affiliates.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Helmet System Components Sizing Guide Retention System Operation Pro Setup Accessory Integration Front Mount Accessory Rail Connectors (ARCs) Exterior Loop Comms Headsets Maintenance Schedule Replacement Parts Operator Notes Warning & Warranty...
  • Page 4: Introduction

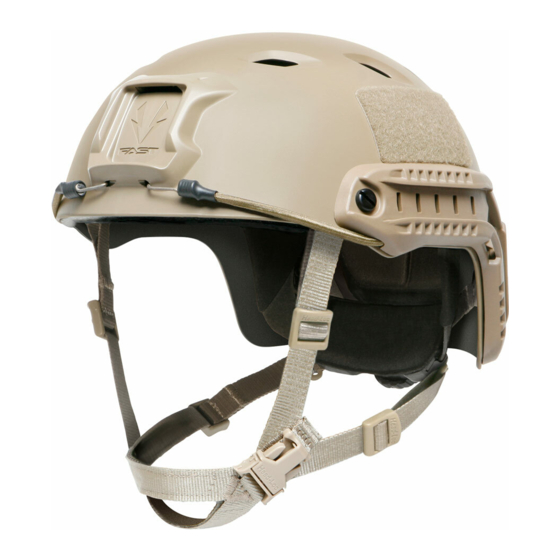

    HELMET VERSIONS INTRODUCTION This manual is specific to the Ops-Core FAST Bump Helmet Only. INCLUDES: (2) SIDE PADS, (2) 1/2” TOP PADS, (2) 3/4” TOP PADS, (1) 1/2“ REAR PAD, (1) 3/4” REAR PAD 3 4 ” 1 2 ”...
  • Page 5: Helmet System Components

    HELMET SYSTEM COMPONENTS Ballistic Molded-In Screw Front Mount Exterior Loop Ballistic Molded-In Screw Helmet Front Mount Exterior Loop Shell Helmet Shell Accessory Rail Connector (ARC) Accessory Rail Connector (ARC) Head-Loc™ Retention System Head-Loc™ Retention System Front EPP Pad Comfort Pad Front EPP Pad Top EPP Pad Comfort Pad...
  • Page 6: Sizing Guide

    Certain head shapes may require a smaller or larger chinstrap than the one that comes with the helmet you selected. The sizing guide is provided for reference. If you feel a different chinstrap size is needed, contact Ops-Core customer service. RUN MEASURING TAPE ALONG FRONT...
  • Page 7: Retention System Operation

    RETENTION SYSTEM OPERATION FASTEN THE CHINSTRAP Put the helmet on and fasten the chinstrap buckle. ADJUST THE OCC-DIAL Use your thumb to rotate the Occ-Dial Adjustment Knob to tighten the fitband until it is comfortably snug. Occ-Dial Adjustment Knob ADJUST REAR HEAD-LOC SLIDERS With both hands, pull the two Rear Head-Loc Sliders on the lower webbing straps toward your chin until snug.
  • Page 8: Pro Setup

    PRO SETUP FAST Helmets were designed for professionals who expect the most from their equipment. Just like fine-tuning the suspension on a racecar or sighting in a fire-arm, the helmet must be set up properly before use to function correctly. If you do not follow these instructions, your helmet will not function in accordance with stated performance.
  • Page 9 ADJUST FITBAND HEIGHT • Put the helmet on and turn the dial to tighten the fitband until it feels secure. Look up at the sky. If the dial digs into your neck, it is too low. • You can adjust the height of the dial by sliding the rear fitband liner tabs that attach it to the inside of the shell up and down.
  • Page 10: Accessory Integration

    ACCESSORY INTEGRATION There are three ways of attaching accessories to the FAST Helmet. The Molded-In Front Mount, FAST Side Rails (ARCs), and Side / Rear Exterior Loop. These three components provide convenient and secure ways to quickly attach and detach various accessories to different positions, and allow for personalized customization. Side Exterior Loop Strobe Exterior Loop Molded-In...
  • Page 11: Front Mount

    NVG & Mount Arm Compatability NVG & Mount Arm Compatability The Ops-Core Molded-In Front Mount is compatible with the following combinations of night vision goggle and The Ops-Core Molded-In Front Mount is compatible with the following combinations of night vision...
  • Page 12: Accessory Rail Connectors (Arcs)

    ARCs are mounted to the sides of the helmet to allow for quick yet secure donning or doffing of various headborne accessories. ARC ADAPTERS The following adapters are commonly used for attaching accessories to the Ops-Core FAST Helmet: Picatinny & Wing-Loc Adapters (A), O2 Single Strap Kit (B), and 36mm Goggle Swivel Clip Kit (C). Picatinny Wing-Loc...
  • Page 13: Exterior Loop

    EXTERIOR LOOP Apply hook fastener to the bottom of a device and place device on top of the loop on the outside of the Ops-Core FAST Helmet shell. Identity Patch Camera Cabling Additional Velcro TOP VIEW REAR VIEW...
  • Page 14: Comms Headsets

    COMMs HEADSET The liner system is compatible with a variety of COMMs headsets and hearing protection devices. Instructions for use with headband style COMMs is below. RELOCATE TOP PADS Position the top pads in the helmet so there is enough space for the headband of the headset to sit in between them.
  • Page 15: Maintenance Schedule

    MAINTENANCE SCHEDULE STANDARD RECOMMENDED MAINTENANCE Perform the following recommended maintenance procedures before and after each use. If any defects are found, the damaged components should be replaced before use. Clean the helmet with a mild detergent and water.* Check that the chinstrap screws are tight using a flathead screwdriver. Clean the Exterior Loop for dust and dirt by using air pressure.
  • Page 16: Replacement Parts

    Our team of dedicated customer service and support professionals is highly trained on all aspects of our products and is available to assist you with all your needs, including checking the status of your order, billing, warranties and returns, orders, replacement parts, and technical support. Ops-Core Customer Service +1 617.670.3547 support@ops-core.com...
  • Page 17: Operator Notes

    OPERATOR NOTES...
  • Page 18: Warning & Warranty

    Replacing the ½” thick impact pads with the supplied Ops-Core ¾” impact pads will not adversely affect impact performance. However, by removing the pads completely or repositioning them, impact attenuation performance could be adversely affected.
