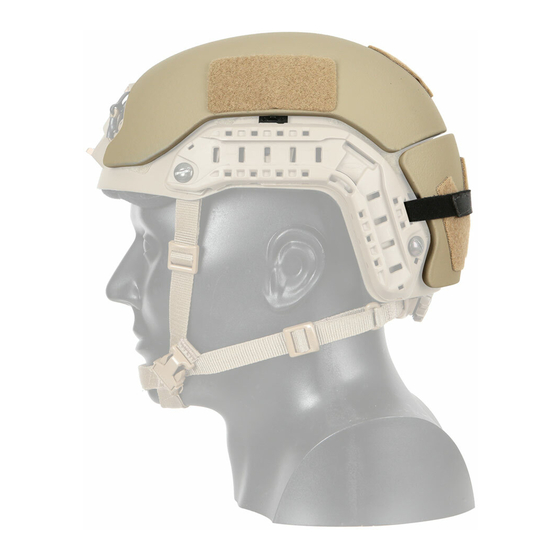

Ops-Core FAST LOW PROFILE BALLISTIC APPLIQUÉ Operator's Manual

INSTALLATION
(CONTINUED)
3
TIGHTEN LEFT ARC SCREW
Pull the Retention Strap all the way through until it stops
at the sewn edge as shown. Attach and/or tighten the
Left ARC screw.
4
THREAD RETENTION STRAP
Align the angled end of the Retention Strap with the strap
slots on the RIGHT ARC Rail as shown. Make sure the
angle is parallel to that of the ARC and that the strap is not
twisted and thread the Retention Strap through the strap
slot as shown.
5
TIGHTEN RIGHT ARC SCREW
Pull the Retention Strap all the way through the strap
slot and attach and/or tighten the Right ARC screw.
6
FASTEN THE RETENTION STRAP
Pull the Retention Strap tight across the back of the Rear
Ballistic Appliqué and fasten the strap onto itself as shown.
CLEANING AND CARE
1. Spot-clean the Low Profile Ballistic Appliqué with mild detergent and water to remove dirt or stains.
2. Clean the fasteners with a brush to remove loose dirt or debris.
3. Visually check the Low Profile Ballistic Appliqué for signs of damage – cracks, holes, soft areas.
Replace if appliqué is damaged.
4. Check to ensure that the fasteners are securely attached to the appliqué and that they hold the
helmet securely.
LOW PROFILE
BALLISTIC APPLIQUÉ
OPERATOR'S MANUAL
For FAST Carbon Helmets Equipped with
Super High Cut (SHC) ARCs and SHC ARC Shims
