MAINTENANCE
BATTERY REPLACEMENT
2
NOTE: This device and Lithium Battery shall be recycled and disposed of in accordance
3
QOLSYS CONFIDENTIAL AND PROPRIETARY
PAGE
with your country (i.e. US, Canada, etc) and Laws including UK and and European
Directives and any other National and Local Regulations and Laws
1. Power down panel: Go to Settings/Advanced Settings
and enter the Installer/Dealer/Master code, then select
"Power Down"

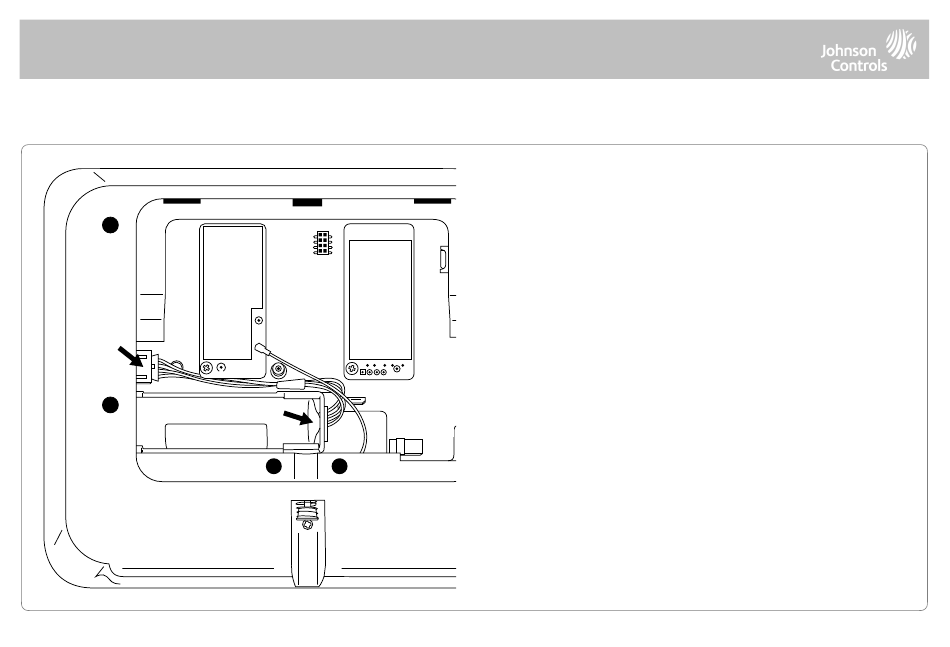

2. Unplug Battery Connector: Once the panel is powered
down, unplug 4 pin battery connector from the board.
3. Remove Battery: Pull up on the edge of the battery with
your finger to release it from the plastic hold down.
4. Install New Battery: Press the battery into place. Route
the cable between the battery and the daughter cards.
Plug the 4 pin connector back in and power the panel
back up.
CAUTION:
Do NOT use a screwdriver or anything sharp that could
puncture the battery.
Do NOT pull on the battery cable to try and remove battery.
