Heating Input: 40,000 - 140,000 BTU/h
■
Standard Features
• Stainless-steel dual-diameter, tubular
heat exchanger
• Two-stage convertible gas valve auto-
matically adjusts to high or low stage
• Durable Silicon Nitride igniter
• Quiet single-speed draft inducer
• Quiet four-speed direct-drive circulating
blower motor
• Self-diagnostic control board
with constant memory fault code
• Color-coded low-voltage terminals with
provisions for electronic air cleaner
and humidifier
• Low continuous fan speed options
offer quiet air circulation
• California Low NOx emissions
standards models available
■
Cabinet Features
• Multi-position installation:
upflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Fully insulated heat exchanger
and blower section
* Complete
warranty
details
available
www.daikincomfort.com. To receive the Lifetime Heat Exchanger Limited
Warranty (good for as long as you own your home) and the 12-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation.
Online registration is not required in California or Quebec.
SS-DM80HS
) ≤ 2%
Leak
from
your
local
dealer
or
at
www.daikincomfort.com

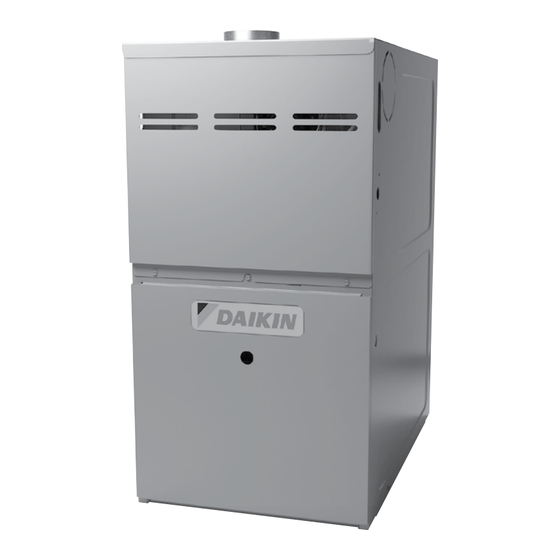

DM80HS
TWO-STAGE CONVERTIBLE
MULTI-SPEED GAS FURNACE
■
Contents
Nomenclature ...............................2
Product Specifications ..................3
Dimensions ..................................4
Airflow Data ..................................5
Wiring Diagram .............................7
Accessories ..................................8
80% AFUE
9/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daikin DM80HS
Summary of Contents for Daikin DM80HS
-
Page 1: Table Of Contents
DM80HS TWO-STAGE CONVERTIBLE Heating Input: 40,000 – 140,000 BTU/h MULTI-SPEED GAS FURNACE 80% AFUE ■ Standard Features • Stainless-steel dual-diameter, tubular heat exchanger • Two-stage convertible gas valve auto- ■ Contents matically adjusts to high or low stage Nomenclature .......2 •... -
Page 2: Nomenclature
S -‐ S ingle S peed MBTU/h 040 -‐ 4 0,000 B TU/h 060 -‐ 6 0,000 B TU/h 140 -‐ 140,000 B TU/h www.daikincomfort.com SS-DM80HS... -
Page 3: Product Specifications
PecificationS pecificatioNS DM80HS DM80HS DM80HS DM80HS DM80HS DM80HS DM80HS DM80HS DM80HS 0403A*A 0603A*A 0604B*A 0803B*A 0804B*A 0805C*A 1005C*A 1205D*A 1405D*A Heating Capacity 40,000 60,000 60,000 80,000 80,000 80,000 100,000 120,000 140,000 Input¹ Natural Gas Output¹ 32,000 48,000 48,000 64,000... -
Page 4: Dimensions
² Single Wall Vent (SW) to be used only as a connector. Refer to the latest editions of the National Fuel Gas Code NFPA 54/ ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1 and CAN/CSA B142.2 (in Canada). Note: DM80HS approved for line contact in the horizontal position. www.daikincomfort.com SS-DM80HS... -
Page 5: Airflow Data
Rise Rise Rise Rise Rise High 1,521 1,466 1,414 1,373 1,298 1,243 1,164 1,075 1,160 1,160 1,132 1,121 1,082 1,042 DM80HS 0403A*A Med-Lo High 1,422 1,352 1,307 1,197 1,157 1,092 1,075 DM80HS 1,098 1,081 1,051 1,039 1,021 0603A*A Med-Lo ----... - Page 6 PecificationS emperature aNge hart www.daikincomfort.com SS-DM80HS...
-
Page 7: Wiring Diagram
5. UNIT MUST BE PERMANENTLY GROUNDED AND CONFORM TO N.E.C. AND LOCAL CODES. 6. TO RECALL THE LAST 5 FAULTS, MOST RECENT TO LEAST RECENT, DEPRESS SWITCH 0140F00662 REV. A FOR MORE THAN 2 SECONDS WHILE IN STANDBY(NO THERMOSTAT INPUTS). SS-DM80HS www.daikincomfort.com... -
Page 8: Accessories
Fossil Fuel Kit FTK04 Twinning Kit ¹ White-Rodgers and Honeywell valves ² Upflow applications only Our continuing commitment to quality products may mean a change in specifications without notice. © 2013 • • Houston, Texas • Printed in the USA. www.daikincomfort.com SS-DM80HS...
