Daikin DM96SN Manual

■
Standard Features
• Heavy-duty stainless-steel tubular heat exchanger
• Super-ferritic Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Multi-speed blower motor
• Quiet multi-speed induced draft blower
• Self-diagnostic control board with constant
memory fault history output to a 3-digit
7 segment LED display and push buttons
• Energy-efficient multi-speed (9-speed
tap) ECM blower motor
• Multiple continuous fan speed options
offer quiet air circulation
• Color-coded low-voltage terminals with provisions
for electronic air cleaner and humidifier
• All models comply with CA Low NOx standards
• All Ultra-Low NOx DM96SE-U models comply with
the 14 ng/J emission limit specified in the South
Coast Air Quality Management District (SCAQMD)
Rule 1111 and San Joaquin Valley Air Pollution
Control District (SJVAPCD) Rule 4905. Learn more
at www.aqmd.gov and www.valleyair.org.
• AHRI Certified; ETL Listed
SS-DM96SN-U

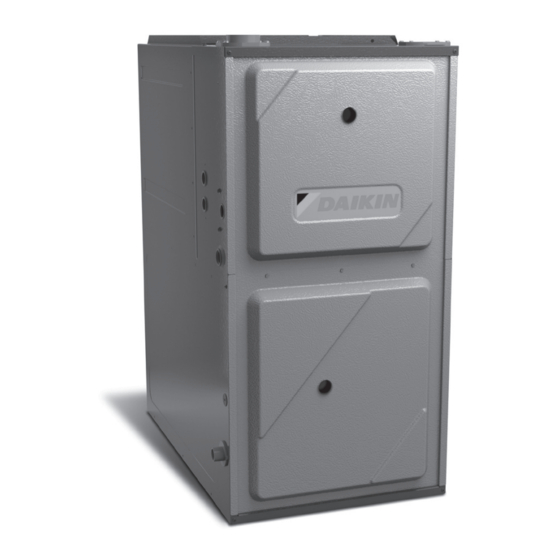

ECM Ultra-Low NOx Gas Furnace
■
Cabinet Features
• Designed for multi-position installation:
DM96SN: Upflow, horizontal left or right
• Certified for direct vent (2-pipe) or
non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Foil-faced insulated heat exchanger cabinet
• Airtight solid bottom or side return with
easy-cut tabs for effortless removal in
bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.daikincomfort.com.
To receive the Lifetime Heat Exchanger Limited Warranty (good for as long as you own
your home), the 6-Year Unit Replacement Limited Warranty and the 12-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation. Additional
requirements for annual maintenance are required for the Unit Replacement Limited
Warranty. Online registration and some of the additional requirements are not required in
California or Quebec.
www.daikincomfort.com
DM96SN-U
Single-Stage, 9-Speed
Up to 96% AFUE
Heating Input: 40,000 - 80,000 BTU/h
■
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Specifications ............................ 5
Wiring Diagram ...................................... 7
Accessories ............................................ 8
) ≤ 1.4%
Leak
09/21
