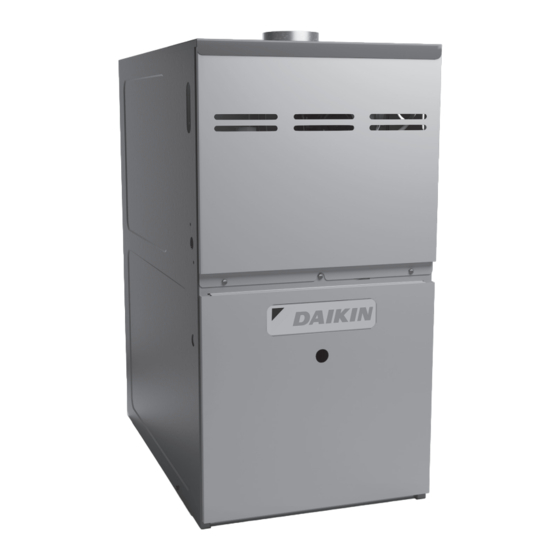

Daikin DM80HS0403A Manual

■
Standard Features
• Stainless-steel dual-diameter, tubular heat exchanger
• Two-stage convertible gas valve auto-
matically adjusts to high or low stage
• Durable Silicon Nitride igniter
• Quiet single speed draft inducer
• Quiet four-speed direct-drive circulating blower motor
• Self-diagnostic control board with
constant memory fault code
• Color-coded low-voltage terminals with provisions
for electronic air cleaner and humidifier
• Multi-speed blower motor
• Low continuous fan speed
options offer quiet air circulation
• California Low NOx emissions
standards models available
• AHRI Certified; ETL Listed
SS-DM80HS
Heating Input: 40,000 - 140,000 BTU/h
■
Cabinet Features
• Multi-position installation:
upflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Fully insulated heat exchanger
and blower section
* Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the Lifetime Heat
Exchange Limited Warranty and the 12-Year Parts Limited Warranty, online registration must be completed within 60 days
of installation. Additional requirements for annual maintenance are required for the Unit Replacement Limited Warranty.
Online registration and some of the additional requirements are not required in California or Quebec.
www.daikincomfort.com
DM80HS
Two-Stage, Convertible
Multi-Speed Gas Furnace
80% AFUE
■
Contents
Nomenclature ............................................2
Product Specifications ...............................3
Dimensions ................................................4
Airflow Data ...............................................5
Wiring Diagram ..........................................7
Accessories ................................................8
Minimum Filter Sizes .................................8
) ≤ 2%
Leak
9/15
Supersedes 12/13
