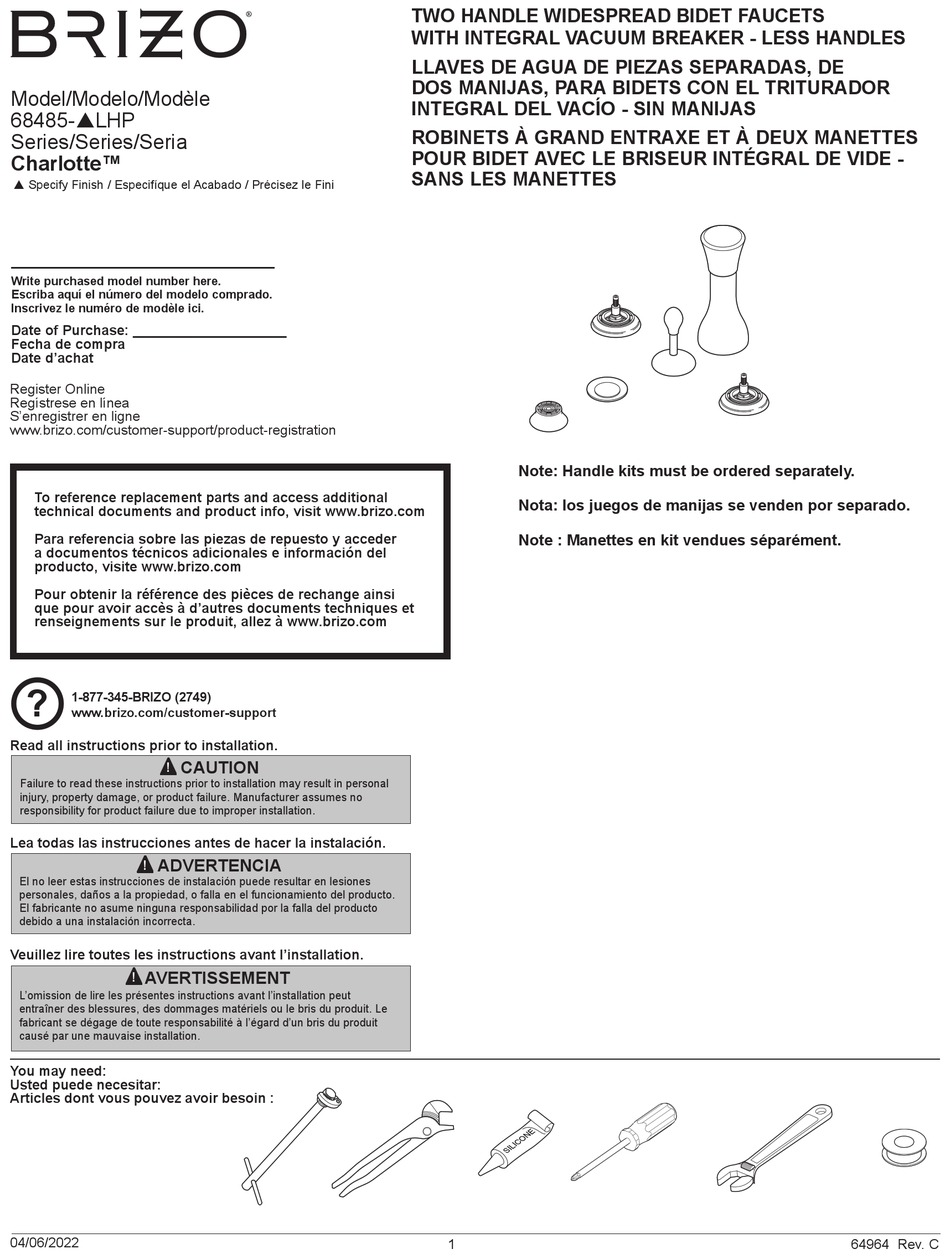

Model/Modelo/Modèle
68485-pLHP
Series/Series/Seria
Charlotte™
p Specify Finish / Especifíque el Acabado / Précisez le Fini
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.brizo.com/customer-support/product-registration
To reference replacement parts and access additional
technical documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.brizo.com
?
1-877-345-BRIZO (2749)
www.brizo.com/customer-support
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
04/06/2022

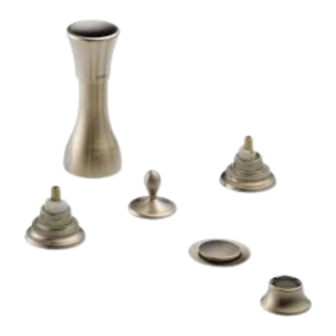

TWO HANDLE WIDESPREAD BIDET FAUCETS
WITH INTEGRAL VACUUM BREAKER - LESS HANDLES
LLAVES DE AGUA DE PIEZAS SEPARADAS, DE
DOS MANIJAS, PARA BIDETS CON EL TRITURADOR
INTEGRAL DEL VACÍO - SIN MANIJAS
ROBINETS À GRAND ENTRAXE ET À DEUX MANETTES
POUR BIDET AVEC LE BRISEUR INTÉGRAL DE VIDE -
SANS LES MANETTES
Note: Handle kits must be ordered separately.
Nota: los juegos de manijas se venden por separado.
Note : Manettes en kit vendues séparément.
1
64964 Rev. C
Advertisement
Table of Contents
Related Manuals for Brizo Charlotte 68485-LHP
Summary of Contents for Brizo Charlotte 68485-LHP
- Page 1 Note: Handle kits must be ordered separately. To reference replacement parts and access additional Nota: los juegos de manijas se venden por separado. technical documents and product info, visit www.brizo.com Note : Manettes en kit vendues séparément. Para referencia sobre las piezas de repuesto y acceder a documentos técnicos adicionales e información del...
- Page 2 2 mm INSTALLATION OF DIVERTER VALVE/VACUUM BREAKER Note: Please refer to bidet bowl installation instructions to identify hole location for diverter valve. INSTALLATION OF ROSETTE SPRAY Hole size must be 1-1/8” diameter minimum. Apply silicone bead (1) under rosette (2). Insert Connect diverter valve (1) with “Y”...
- Page 3 INSTALLATION OF VALVE ASSEMBLIES & TRIM by turning body portion clockwise. Tighten by hand only. Repeat steps A & B Note: Holes for valves must be 1-1/8" diameter minimum and must be at least 5" apart. for other valve. Look for a blue label or dot on cold valve assembly and red label or dot on hot valve If handles do not align, unscrew one or both handle &...
- Page 4 Step 3b POP-UP INSTALLATION Remove pivot nut (1). Install horizontal rod Apply silicone to underside of flange (1). Insert Step 3c Remove stopper (1) and flange (2). (2) and stopper (3) as removable (4) or non- body (2) into sink. Screw flange (1) into body (2). removable (5).
- Page 5 1/2" (12.7 mm) MAKE CONNECTIONS TO WATER LINES: FLUSH YOUR SYSTEM Connect inlet hoses (1) to hot and cold valve inlets as shown. Tighten firmly but do not over tighten. Turn diverter handle (1) clockwise to ‘rim feed’ position. Turn on water supplies (2) and turn hot and cold handles (3) to open position for one Choose hook-ups for 1/2"...
-
Page 6: Maintenance
3 mm OPERATING INSTRUCTIONS MAINTENANCE A. Check to be sure diverter valve handle (1) is in the rim feed position SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE ASSEMBLIES. (turned fully clockwise). If your bidet faucet leaks out of rim feed area, or from rosette sprayer, or B. -
Page 7: Cleaning And Care
Notes / Notas / Notes Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto. - Page 8 Brizo Kitchen & Bath Company Masco Canada Limited, Plumbing Group application” refers to the purchase of the faucet from an authorized Brizo seller by a purchaser who owns but does not live in the residential 55 E. 111th Street Technical Service Centre...
