Model/Modelo/Modèle
65330LF
Virage
®
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
To READ ALL the instructions completely
before beginning.
To READ ALL warnings, care, and maintenance
information.
To purchase the correct water supply hook-up.
Para instalación fácil de su llave
®
Brizo
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
LIRE TOUTES les instructions avant de
débuter;
LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et
Acheter le bon nécessaire de raccordement.
www.brizo.com
86530
2.5mm
(3/32")
®
®
tretien;
86530
TWO HANDLE WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS MANIJAS
ROBINETS À ENTRAXE LONG À
DEUX POIGNÉES POUR LAVABO
1
2.5 mm
(3/32")
08/08/14 Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

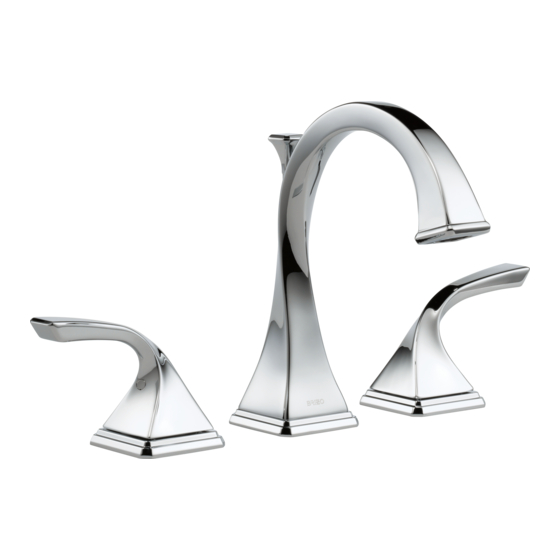

Related Manuals for Brizo Virage 65330LF-P
Summary of Contents for Brizo Virage 65330LF-P

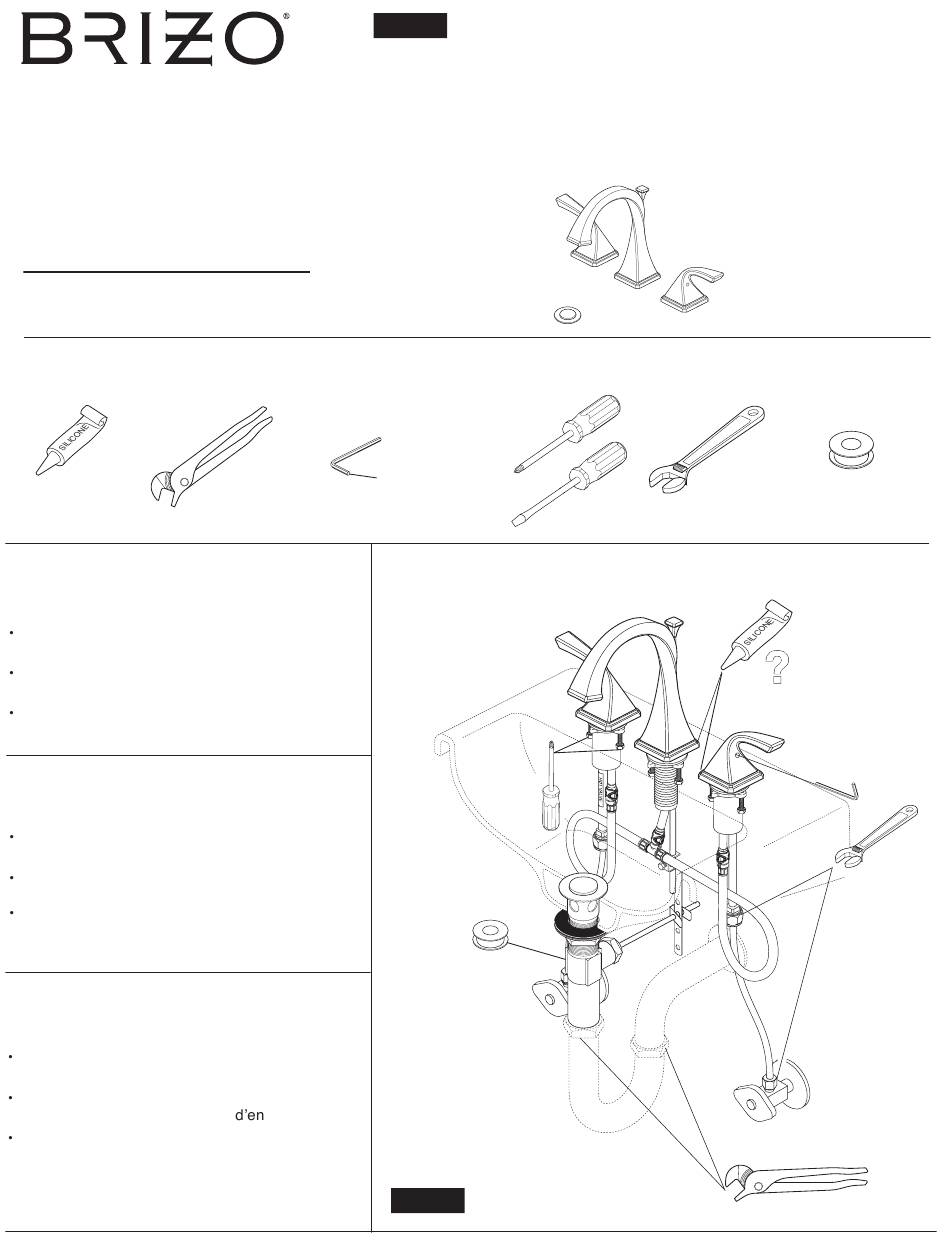

- Page 1 You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: 2.5mm (3/32") ® For easy installation of your Brizo faucet you will need: To READ ALL the instructions completely before beginning. To READ ALL warnings, care, and maintenance information.
- Page 2 Remove nut and washer (1) from end valve assemblies. Note: hot side end valve Remove nut and washer (1) from spout (2). Install spout, gasket (3) and is labeled (5). Slide hot (2) and cold (3) end valves with gaskets (4) through mounting base (4).
- Page 3 Remove pivot nut (1). Install horizontal rod (2) and Apply silicone to underside of flange (1). Metal Pop-up stopper (3) as removable (4) or non-removable (5). Insert body (2) into sink. Screw flange (1) Remove stopper (1) and flange (2). Hand tighten pivot nut (1).
- Page 4 1/2" (13 mm) IPS Remove aerator (1) using supplied wrench (2) and turn Make Connections to water lines: faucet handles (3) to the full on mixed position. urn on hot and cold water supplies (4) and flush water lines for Choose hook-ups for 1/2"...
-
Page 5: Maintenance
RP62370 RP62374 Lift Rod Handle Buttons, Set Screws & RP62373 Barra de Alzar Allen Wrench Tige de Manoeuvre Hot & Cold Botones para la Manija, Tornillos de Handle Assemblies Ajuste y Llave Allen Ensambles de Manijas Clé Allen, vis de calage et boutons Para Caliente y Fría pour manettes Eau chaude et eau... -
Page 6: Cleaning And Care
