Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
04/01/2022

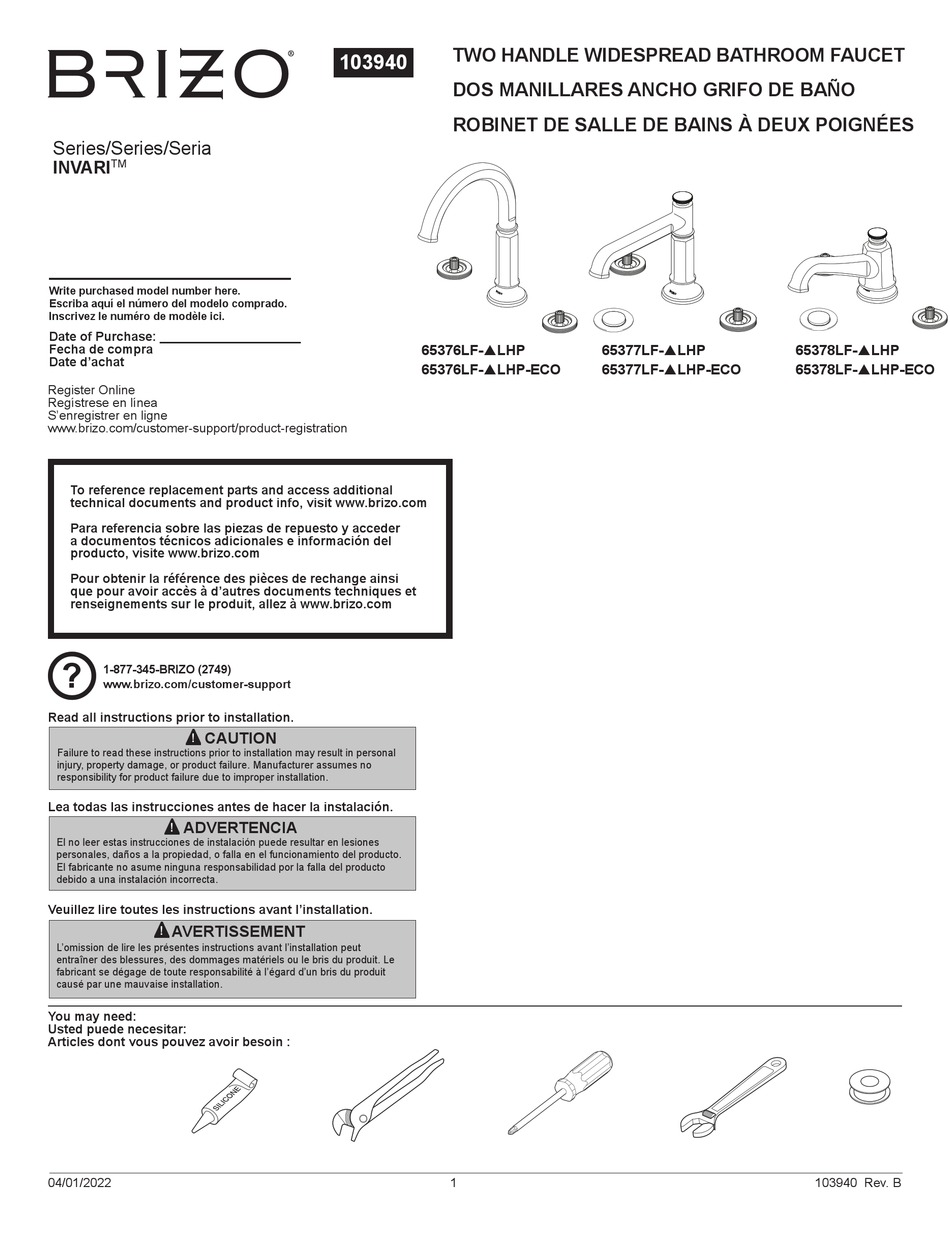

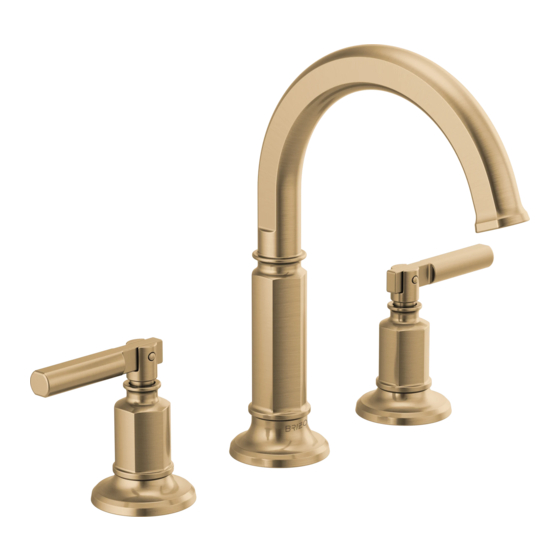

TWO HANDLE WIDESPREAD BATHROOM FAUCET
103940
DOS MANILLARES ANCHO GRIFO DE BAÑO
ROBINET DE SALLE DE BAINS À DEUX POIGNÉES
65376LF-pLHP
65376LF-pLHP-ECO
1
65377LF-pLHP
65377LF-pLHP-ECO
65378LF-pLHP
65378LF-pLHP-ECO
103940 Rev. B
