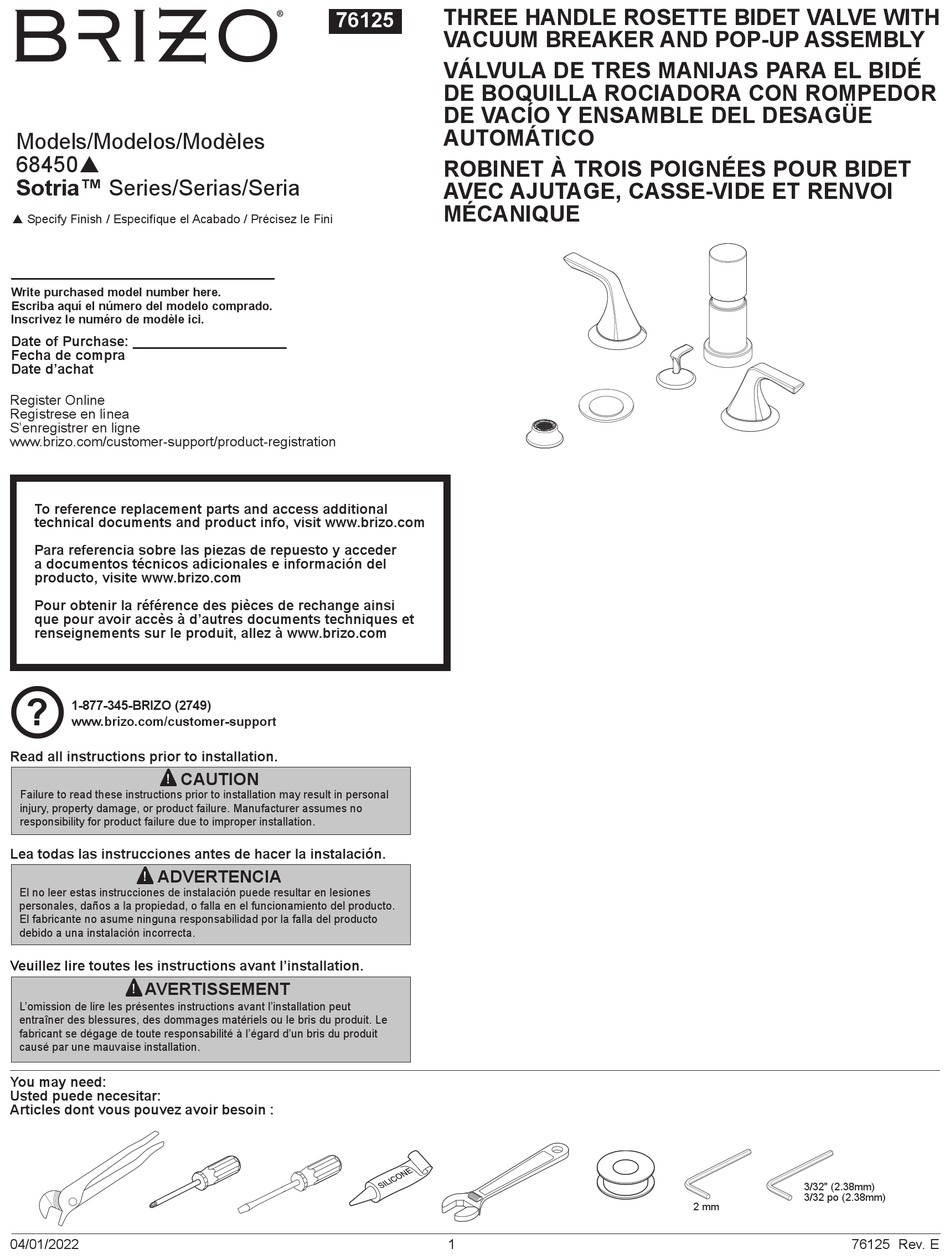

Models/Modelos/Modèles
68450p
Sotria™ Series/Serias/Seria
p Specify Finish / Especifíque el Acabado / Précisez le Fini
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.brizo.com/customer-support/product-registration
To reference replacement parts and access additional
technical documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.brizo.com
?
1-877-345-BRIZO (2749)
www.brizo.com/customer-support
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
04/01/2022
THREE HANDLE ROSETTE BIDET VALVE WITH
76125
VACUUM BREAKER AND POP-UP ASSEMBLY
VÁLVULA DE TRES MANIJAS PARA EL BIDÉ
DE BOQUILLA ROCIADORA CON ROMPEDOR
DE VACÍO Y ENSAMBLE DEL DESAGÜE
AUTOMÁTICO
ROBINET À TROIS POIGNÉES POUR BIDET
AVEC AJUTAGE, CASSE-VIDE ET RENVOI
MÉCANIQUE
T E FLO N
1
3/32" (2.38mm)
3/32 po (2.38mm)
2 mm
76125 Rev. E
Advertisement
Related Manuals for Brizo Sotria 68450 Series
Summary of Contents for Brizo Sotria 68450 Series
- Page 1 Regístrese en línea S’enregistrer en ligne www.brizo.com/customer-support/product-registration To reference replacement parts and access additional technical documents and product info, visit www.brizo.com Para referencia sobre las piezas de repuesto y acceder a documentos técnicos adicionales e información del producto, visite www.brizo.com Pour obtenir la référence des pièces de rechange ainsi...
- Page 2 INSTALLATION OF DIVERTER VALVE/VACUUM BREAKER Note: Please refer to bidet bowl installation instructions to identify hole location for diverter valve. Hole size must be 1-1/8" diameter minimum. INSTALLATION OF ROSETTE SPRAY Assemble diverter valve (1) with “Y” and gasket (2) as shown in illustration. Slide one rubber cone washer Apply silicone bead (1) under rosette (2).
- Page 3 INSTALLATION OF VALVE ASSEMBLIES & TRIM Note: Holes for valves must be 1-1/8" diameter minimum and must be at least 5" apart. Place spline adapter (1) over valve stem (2) and secure with screw (3). Look for a blue label or dot on cold valve assembly and red label or dot on hot valve Repeat steps A, B &...
- Page 4 Step 3b METAL POP-UP Step 3c Remove stopper (1) and flange (2). Apply silicone to underside of flange (1). Insert body Remove pivot nut (1). Install horizontal rod (2) into sink. Screw flange (1) into body (2). (2) and stopper (3) as removable (4) or non- removable (5).
- Page 5 FLUSH YOUR SYSTEM Turn diverter handle (1) clockwise to ‘rim feed’ position. Turn on water Connect 12" hoses (1) from “Y” on diverter valve (2) to outlets on hot & supplies (2) and turn hot and cold handles (3) to open position for one cold end valve bodies as shown.
- Page 6 MAINTENANCE OPERATING INSTRUCTIONS SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE ASSEMBLIES. A. Check to be sure diverter valve handle (1) is in the rim feed position (turned fully clockwise). If your bidet faucet leaks out of rim feed area, or from rosette sprayer, or B.
- Page 7 Notes / Notas / Notes Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto.
- Page 8 Brizo Kitchen & Bath Company Masco Canada Limited, Plumbing Group application” refers to the purchase of the faucet from an authorized Brizo seller by a purchaser who owns but does not live in the residential 55 E. 111th Street Technical Service Centre...
