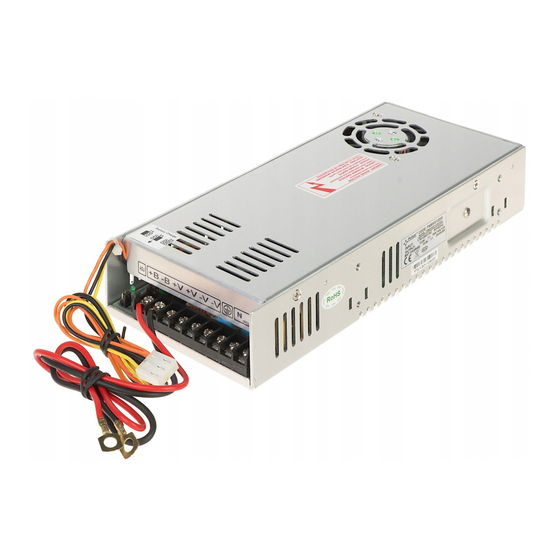

Pulsar PSB-30012200 Quick Start Manual


DC 13,8V/20A uninterruptible power supply

wide AC input voltage range 176÷264V

built-in power factor correction system (PFC)

high efficiency 85%

controlling of battery charging and maintaining

protecting of battery against excessive discharging
(UVP)

battery charging current 2A/4A/8A, changed by
jumper

forced cooling - built-in fan

1. Technical description.

1.1. General description.

Buffer-type power supply units are intended for continuous power supply to devices that require stabilised voltage
of 12V DC (+/-15%). The power supply provides a voltage of U=13,8V DC with an output current of:
In case of power voltage decay, prompt switching to battery supply occurs. The power supply is equipped with
short circuit protection, overload protection, overvoltage and thermal overload protection. The power supply is fitted with a
fan for forced cooling, switching on depending on the temperature and the load of the power supply.

1.2. Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Power factor PF
Output voltage
Output current t
AMB
Output current t
AMB
Voltage adjustment range
Ripple voltage
Battery charging current
Short-circuit protection SCP
Overload protection (battery) OLP
Surge protection
*
See chart 1
Features of the power supply:
1. Output current of 18A + 2A battery charging.
2. Output current of 16A + 4A battery charging.
3. Output current of 12A + 8A battery charging.
Total device current + battery charging current: 20A max
<30°C
=40°C
PSB-30012200
PSB 13,8V/20A enclosed switch
mode buffer power supply
Edition: 2 from 01.03.2018
Supercedes edition: 1 from 11.01.2015

* battery output is full protected against short-
circuit and reverse connection

LED optical signalisation

protections:






warranty – 2 year from the production date
176÷264V AC
1,5A@230VAC max.
300W max.
85%
>0,95 @230V AC
11V÷ 13,8VDC – buffer operation
9,5V÷13,8V DC – battery operation
18A + 2A battery charging -
16A + 4A battery charging -
12A + 8A battery charging -
12,6A + 2A battery charging -
11,2A + 4A battery charging -
8,4A + 8A battery charging -
12÷14V DC
120mV p-p max.
2A, 4A or 8A max.
electronic
glass fuse
varistors
1
short-circuit protection SCP
over voltage protection OVP
surge protection
overload protection OLP
overheat protection OHP
*
*
*
*
.
see chart 1
see chart 1
see chart 1
see chart 1
see chart 1
see chart 1
