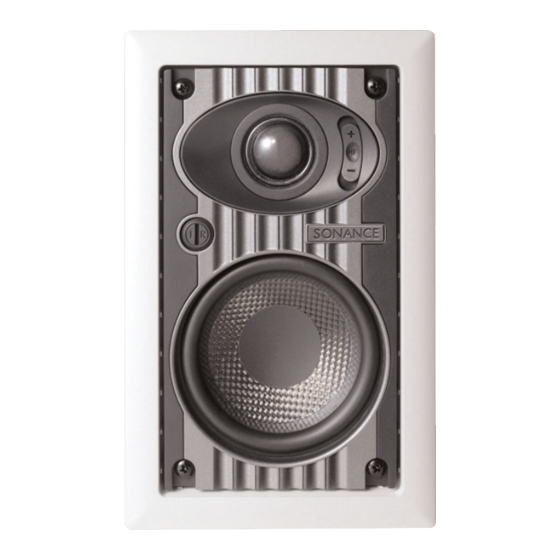

Summary of Contents for Sonance MERLOT 422M

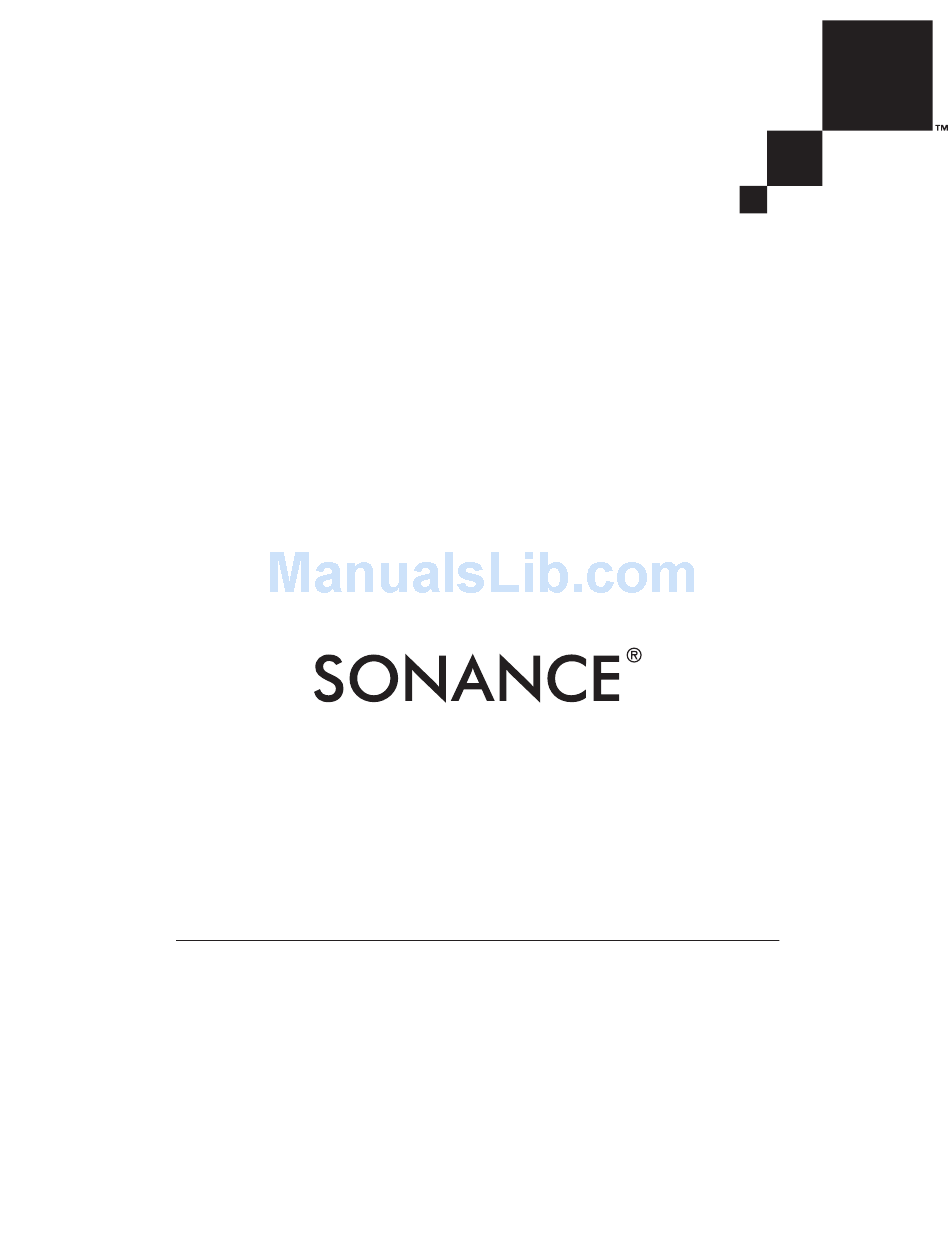

  • Page 1 M - S ® ERLOT ERIES PEAKERS INSTRUCTION MANUAL...
  • Page 2: Safety Warning

    When selecting mounting locations for your speakers you should consider such things as your primary listening location, the primary use for the speakers (2-channel stereo or home theater) and aesthetic values. Your local authorized Sonance dealer is an expert in audio/video system planning and installation. We strongly recommend that you work with your dealer to ensure that your system is properly planned, assembled and installed.
  • Page 3 If you are not sure which location will achieve the best performance in your room, contact your Authorized Sonance Dealer for advice.
  • Page 4 To prevent degrading sound quality, the total wire resistance should be less than 10% of the speaker’s impedance. This means that for an 8-ohm speaker, the total resistance of the wire should be less than 0.8 ohms. Refer to the chart in Figure 7 when selecting the proper wire gauge for your system.
  • Page 5: Optional Accessories

    The FlexBracket has perforated wings that can be positioned anywhere around the bracket, and is nailed or screwed to the studs. This serves as a guide for the drywaller so that the speaker hole will be in the desired location once the drywall is installed.
  • Page 6: Installation

    • If you are unsure about obstructions, drill a small hole in the center of the outline and insert a coat hanger wire into the hole to feel-around for possible obstructions. 5. Cut the mounting hole using a keyhole or drywall saw, and run the speaker wires from the mounting hole to the amplifier location.
  • Page 7 You can also paint the speakers after installation, but before the grilles are attached. All Sonance Merlot speakers come from the factory fitted with a plastic ‘paint plug’ that protects the speaker drivers while the mounting flange is being painted.
  • Page 8: Specifications

    The Merlot 423 has a tweeter level control switch (see Figure 14 ) that boosts or cuts the tweeter’s level by 3dB. This allows you to adjust the speaker’s brightness to better match your listening room or personal taste. Once you have installed the speakers, listen to a variety of music that you are familiar with.
  • Page 9: Technical Assistance And Service

    S S O O N N A A N N C C E E ! ! 3. If you’re directed to return the unit to Sonance for repair, pack the unit in its original shipping carton. If needed, you can obtain replacement packaging from us for a small charge. Note: it is best if you place the box into an additional outer “overcarton”...
  • Page 10: Exclusions And Limitations

    If this model is no longer available and can not be repaired effectively, Sonance, at is sole option, may replace the unit with a current model of equal or grater value. In some cases where a new model is substituted, a modification to the mounting surface may be required.
  • Page 11 SONANCE MERLOT ® Notes:...
  • Page 12 ©2007 Sonance. All rights reserved. Sonance, Sonance Merlot, RotoLock, OptiLinQ, MediaLinQ, Sonafill and FastMount are registered trademarks of Dana Innovations. Due to continuous product improvement, all features and specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com SONANCE •...
