Sonance Mariner 82 Instruction Manual

INTRODUCTION

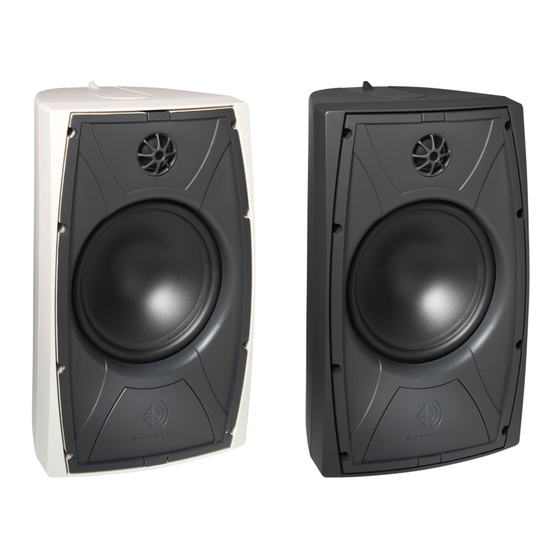

Thank you for purchasing Sonance Mariner® weather-resistant speakers.
When properly installed, these speakers will give you many years of
outdoor entertainment pleasure. To get the most out of your new
speakers, please read this manual thoroughly before you begin installation.
The directions in this manual apply to all of the following models:
• Mariner 82
• Mariner 63
• Mariner 62

PARTS LIST

Your Sonance Mariner speakers include the following:
• (2) Sonance Mariner speakers
• (2) Grilles
• (2) Wiring terminal covers
• (2) Mounting brackets (attached to the speakers)

SPEAKER PLACEMENT

All Mariner speakers are highly weather-resistant, and when mounted
outdoors will perform exceptionally well for years even under adverse
weather conditions.
The new Mariner mounting system makes it easy to mount the speakers
in a variety of positions and locations:
Against a wall
Against a wall
(flush) (angled, with optional
In a corner
• Mariner 61
• Mariner 52
• Mariner 51
Under an eave
base)
On a pole
I N S T R U C T I O N M A N U A L
S O N A N C E M A R I N E R
W E A T H E R - R E S I S T A N T S P E A K E R S
The best performance is obtained by placing the left and right speakers
at ear level, 6 – 10 feet apart. The speakers should be facing the listeners.
• If you are mounting the speakers above or below ear level, pivot them
up or down to direct the sound towards the listeners.
• You can orient the speakers either horizontally or vertically without
affecting the sound quality.

CONNECTING AND ASSEMBLING THE SPEAKERS

WARNING: Turn the amplifier's power OFF, or disconnect its
AC plug from the wall outlet until you have completed all of the
connections and have determined that they are correct.
1. Remove the speakers from the mounting brackets by pulling the tabs
on the front panels away from each other, as shown below.
1. Remove speakers
from brackets
Pull tabs away from each other
2. Run the speaker wires from the amplifier to the speaker locations and
through the holes in the mounting brackets.
Note: To increase water resistance and make installation easier, the
speaker wire terminals are located on the Mariner speakers' front panel.
Be sure to leave enough wire at the speaker location to feed through the
tunnel in the speaker enclosure and connect to the terminals on the front.
3. Attach the mounting bracket to the mounting surface using
hardware (not included) that is appropriate for the type of
surface.
3. Attach
bracket
1
S E R I E S
®
Slide speaker off bracket
