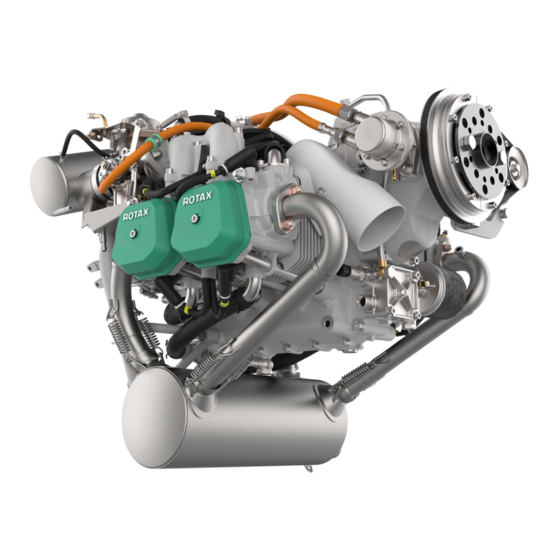

BRP ROTAX 912 Series Service Bulletin

SB-912-074 / SB-914-056
Exchange of floats (pair) on ROTAX
914 (Series)
ATA System: 73-00-00 Fuel system
MANDATORY
1) Planning information
To obtain satisfactory results, procedures specified in this publication must be accomplished with
accepted methods in accordance with prevailing legal regulations.
BRP-Rotax GmbH & Co KG cannot accept any responsibility for the quality of work performed in
accomplishing the requirements of this publication.
1.1) Applicability
All engines of Series 912 A, 912 F, 912 S and 914 F are affected, if at least one of following crite-
ria applies:
Criterion A) Engine Serial number:
These engines have been originally delivered from the factory with floats of part no. 861185 or
part no. 861188.
912 A
912 F
912 S
914 F
Criterion B) Carburetors:
These carburetors have been originally delivered from the factory with floats of part no. 861185 or
part no. 861188.
Carburetors
912 A/F
912 S
914 F
03 December 2020
Initial Issue
Copyright - BRP-Rotax GmbH & Co KG. All rights reserved.
Engine type
from S/N 4411113 up to S/N 4411146 inclusive/
from S/N 4411401 up to S/N 4411617 inclusive
from S/N 4413062 up to S/N 4413067 inclusive/
from S/N 4413101 up to S/N 4413156 inclusive
from S/N 9139001 up to S/N 9139117 inclusive/
from S/N 9563737 up to S/N 9563849 inclusive/
from S/N 9564301 up to S/N 9565000 inclusive
from S/N 4421515 up to S/N 4421597 inclusive/
from S/N 4421701 up to S/N 4422077 inclusive
Carburetors
part no.
1/3 part no. 892500
2/4 part no. 892505
1/3 part no. 892530
2/4 part no. 892535
1/3 part no. 892520
2/4 part no. 892525
Current valid documentation see:
www.flyrotax.com
SERVICE BULLETIN
Engine Type 912 and
®
Serial number
Serial number
The part numbers and serial numbers of the carburetors
mentioned in Chapter 4) Appendix*.
The part numbers and serial numbers of the carburetors
mentioned in Chapter 4) Appendix*.
The part numbers and serial numbers of the carburetors
mentioned in Chapter 4) Appendix*.
73-00-00
Page 1 of 12
