INTRODUCTION
The Dimlux maxi controller is a modular control system for operating and monitoring the Dimlux lighting, CO2 and
VPD. The EVO controller is available with and without USB log function. The controller also has a thermostat/hygrostat
function (AUX) and can also control a fan.
necessary.
CO2 sensor can be used to control CO2 generators, cold CO2 installations and ventilation systems for air replacement.
and even a ventilator. Various parameters can be read and regulated in a VPD environment. The screen shows the
ambient temperature, relative humidity, plant temperature and VPD. The DATALOG function can be used to store all
values on a USB stick. The controller writes all measured values onto the stick every minute and these can be read off
later in graphic form on a PC.
The controller can also operate the lighting in two rooms in turns. This requires a second temperature sensor, which
can be connected to port RH/T2. The relative humidity sensor will no longer be required. The controller is modular: All
sensors can be purchased independently according to need.

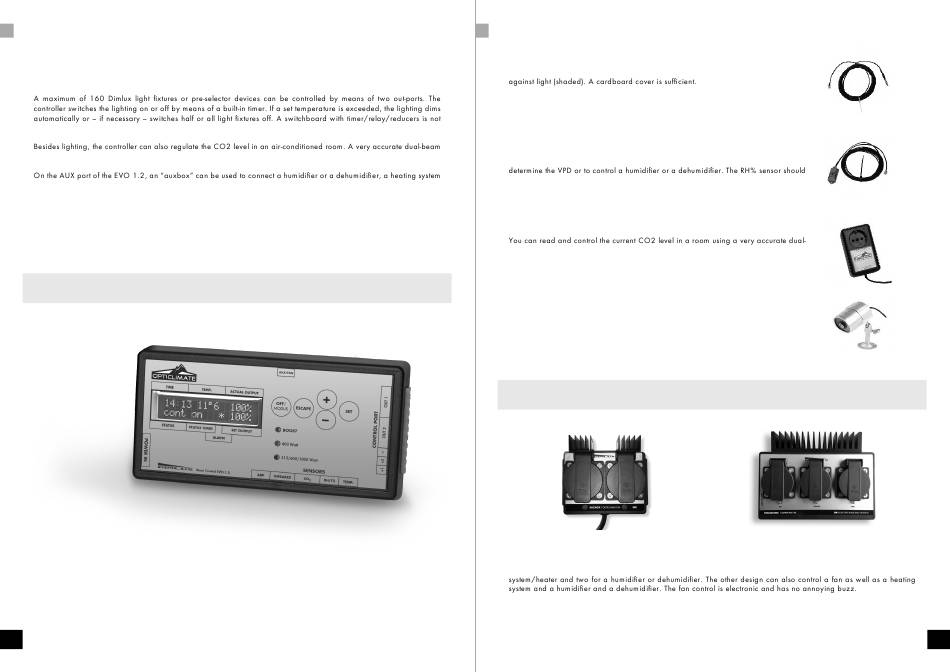

Components
The controller
The controller regulates and operates the lighting, CO2, VPD status and any other
connected components (AUX).
EN
2

INSTALLATION

Temperature sensor
The temperature sensor measures the room temperature and should be protected
RH% sensor
The RH% sensor measures the relative humidity in the room. This is necessary to
also hang in the shade.
CO2 sensor
beam CO2 sensor. The sensor can control a CO2 generator or a cold CO2 installation.
PT camera
The temperature of a crop can be measured using the plant temperature camera.
This temperature provides an indication of the vaporization of the crop.
The camera is also needed to determine the VPD.
The Auxbox
Auxbox
An auxbox can be connected to controller's aux port. The auxbox converts the maxi controller into a fully automatic
air conditioning system. The auxbox is available in two designs. The auxbox has two connections, one for a heating
Auxbox fan
EN
3
