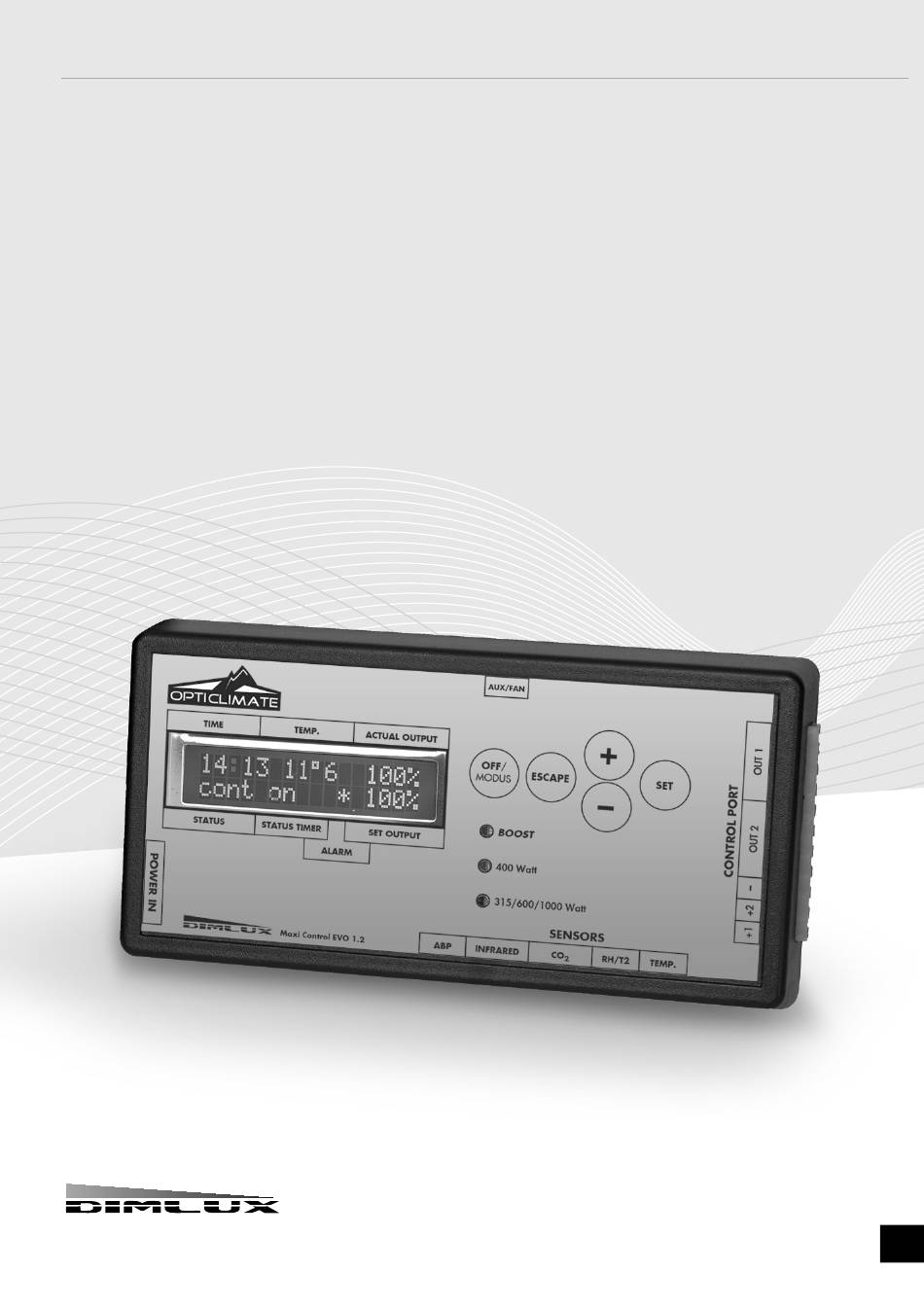

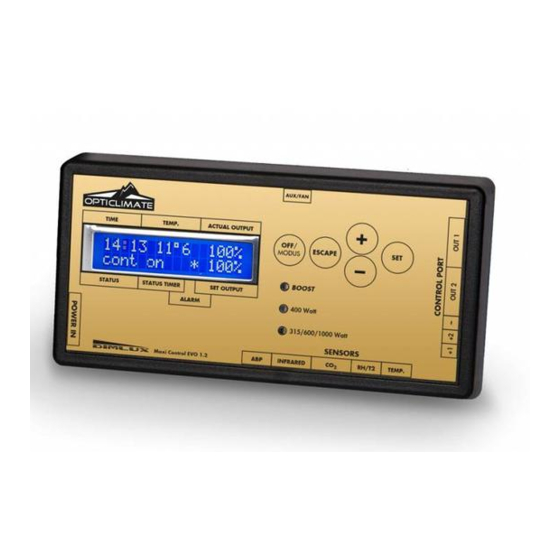

- Page 1 DIMLUX.NL LET THERE BE LIGHT DIMLUX MAXI CONTROLLER EVO 1.2 Installation and User Guide ® DimLux is a registered trademark of airSupplies...
- Page 2 (shaded). A cardboard cover is sufficient. A maximum of 160 Dimlux light fixtures or pre-selector devices can be controlled by means of two out-ports. The controller switches the lighting on or off by means of a built-in timer. If a set temperature is exceeded, the lighting dims automatically or –...
- Page 3 The controller communicates with the Dimlux ballasts or the light fixtures by means of a signal cable, which should be next one.
- Page 4 MENU & KEYS MENU & KEYS Time Basic Advanced Menu Time 05:51 Using Using Press the SET key briefly: the current time will appear. By pressing the SET key again, the time can be set using the + Basic menu Advanced menu or –...
- Page 5 MENU & KEYS MENU & KEYS Time Advanced Time (clock) Numerous parameters can be adjusted or set in the advanced menu. 16:17 Advanced keys The current time can be set by pressing the SET key while TIME is displayed on the screen. For this purpose, use the + and –...
- Page 6 MENU & KEYS MENU & KEYS When the second temperature (H = High-Dim) is reached despite the dimmed lights, the controller switches off all lights Temperature display operated by the even ports (2 and 4). Half of the lights are therefore turned off. Temperature When the third temperature (S = Shut-down) is reached despite the fact that all lights are dimmed and half of the lights are off, all lights go off.
- Page 7 MENU & KEYS MENU & KEYS Manual calibrate Advanced aux/fan menu co2 manual calib Eight parameters can be set in the advanced fan menu in order to ensure that the installation works as efficiently as 0 ppm possible. You can also select to calibrate the sensor manually. Temperature Pressing briefly on the SET key will open the menu.
- Page 8 MENU & KEYS MENU & KEYS Controlled by RH aux port RH% (aux) Set type RH set Set RH +/- -RH + RH Using an optional aux box, the controller can humidify or dehumidify during the periods lights on and lights off or Controlled by Heater aux port always.
- Page 9 MENU & KEYS MENU & KEYS / ERROR & EVENTS PT offset CO2 high/low PT>OFFSET H CO2 391p 13:15 0.0 °C L CO2 184p 13:13 Here you can adjust any deviation in the display of the temperature measured by the plant temperature (PT) camera. The highest and lowest CO2 value including the time are displayed.
- Page 10 Odd numbers go off at half-force or high temperature safeguard. LED indication on dimlux ballast equipment The ballast equipment of Dimlux has an own self-diagnosis system. A red and green LED on the ballast or light fixture makes it possible to see a possible error alert and the status.
- Page 11 CONNECTION OPTIONS NOTES Maximum 80 light fittings per OUT port, provided that the original cables are used Other options for use in existing or older systems...
- Page 12 NOTES NOTES...
- Page 13 Dimlux B.V. Amsterdam, the Netherlands www.dimlux.nl MADE IN HOLLAND ® DimLux is a registered trademark of airSupplies V1108016...
