Summary of Contents for Indesit IFW 3534 H IX
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Indesit IFW 3534 H o cerca il tuo prodotto tra le migliori offerte di Forni USER MANUAL...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT TO BE READ AND OBSERVED Before using the appliance, read these safety This appliance is not for professional use. Do instructions. Keep them nearby for future not use the appliance outdoors. reference. Do not store explosive or flammable substances These instructions and the appliance itself provide (e.g. - Page 3 DISPOSAL OF PACKAGING MATERIALS if the supply cord is damaged, it must be The packaging material is 100% recyclable and is marked with the replaced with an identical one by the manufacturer, recycle symbol . The various parts of the packaging must therefore its service agent or similarly qualified persons in be disposed of responsibly and in full compliance with local authority order to avoid a hazard - risk of electrical shock.
-
Page 4: Product Description

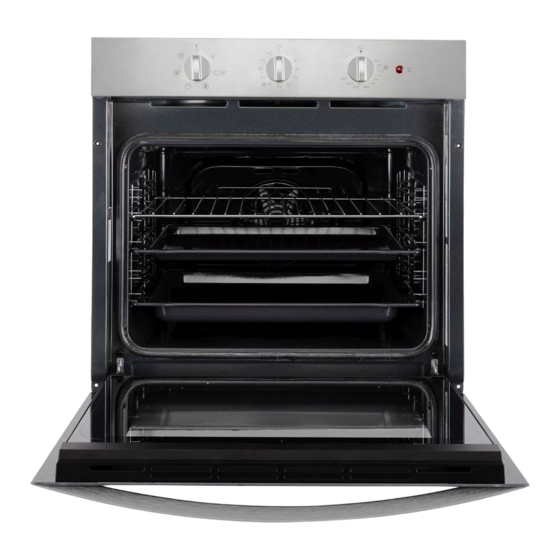

PRODUCT DESCRIPTION 1. Control panel 2. Fan 3. Lamp 4. Shelf guides (the level is indicated on the wall of the cooking compartment) 5. Door 6. Upper heating element/grill 7. Identification plate (do not remove) 8. Bottom heating element (non-visible) CONTROL PANEL 1. -
Page 5: Inserting The Wire Shelf And Other Accessories
ACCESSORIES WIRE SHELF DRIP TRAY BAKING TRAY SLIDING RUNNERS The wire shelf can be used Use as an oven tray Use for cooking all bread These make it easier to to grill food or as a support for cooking meat, fish, and pastry products, but place accessories in and for pans, cake tins and... -
Page 6: Removing And Refitting The Shelf Guides
REMOVING AND REFITTING THE SHELF GUIDES • To remove the shelf guides, firmly grip the • To reposition the shelf guides, position them external part of the guide, and pull it towards you near the cavity and initially insert the two pins into to extract the support and the two internal pins their lodgings . -
Page 7: Daily Use
FUNCTIONS GRILL For switching off the oven. For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. LIGHT When grilling meat, we recommend using a Baking tray to collect the cooking juices: position the pan on For switching on the light in the compartment. any of the levels below the wire shelf and add 200 ml of drinking water. -
Page 8: Useful Tips
USEFUL TIPS HOW TO READ THE COOKING TABLE MEAT The table indicates the best function to use for any - Use any kind of oven tray or pyrex dish suited given food, to be cooked on one or more shelves to the size of the piece of meat being cooked . -
Page 9: Cooking Table
COOKING TABLE TEMPERATURE DURATION LEVEL RECIPE FUNCTION PREHEAT (°C) (MIN) AND ACCESSORIES 150 - 170 30 - 90 Leavened cakes 150 - 170 30 - 90 *** 160 - 200 35 - 90 Filled cake (cheese cake, strudel, fruit pie) 160 - 200 35 - 90 *** 2 / 3... - Page 10 TEMPERATURE DURATION LEVEL RECIPE FUNCTION PREHEAT (°C) (MIN) AND ACCESSORIES Roast pork with crackling 2 kg 180 - 190 110 - 150 Chicken/rabbit/duck 1 kg 200 - 230 50 - 100 Turkey / goose 3 kg 180 - 200 150 - 200 Baked fish/en papillote 0,5 kg (fillets, 170 - 190 30 - 45...
-
Page 11: Tested Recipes
TESTED RECIPES Compiled for the certification authorities in accordance with the standard IEC 60350-1 COOK TEMP. RECIPE FUNCTION PREHEAT. TIME ACCESSORIES* AND NOTES (°C) (MIN.) 30 - 40 Drip tray/baking tray 25 - 35 Drip tray/baking tray Shortbread Lev . 4: baking tray 2 - 4 20 - 30 ** Lev . -
Page 12: Exterior Surfaces
CLEANING Do not use steam cleaning Carry out the required Do not use wire wool, abrasive equipment. operations with the oven cold. scourers or abrasive/corrosive cleaning agents, as these could Use protective gloves during all Disconnect the appliance from damage the surfaces of the operations. -
Page 13: Maintenance
MAINTENANCE Use protective gloves during all Carry out the required Disconnect the oven from the operations. operations with the oven cold. power supply. REMOVING THE DOOR Open the door fully . Take a firm hold of the door with both hands – do not hold it by the handle . -
Page 14: Refitting The Door
REFITTING THE DOOR Move the door towards the oven, aligning the Try closing the door and check to make sure that hooks of the hinges with their seating . it lines up with the control panel . If it does not, repeat the steps above: The door could become damaged if it does not work properly . - Page 15 CLICK & CLEAN ‑ CLEANING THE GLASS After removing the door and resting it on a soft To correctly reposition the inner glass, make sure surface with the handle downwards, simultaneously that the “R” is visible in the right-hand corner and the press the two retaining clips and remove the upper clear surface (not printed) is facing up .
-
Page 16: Replacing The Light
REPLACING THE LIGHT Disconnect the oven from the power supply . Please note: Use 25 W/230 V type G9, T300 °C halogen lamps. Unscrew the cover from the light, replace the bulb The bulb used in the product is specifically designed for and screw the cover back on the light . -
Page 17: Troubleshooting
TROUBLESHOOTING Any problems or malfunctions that may occur can often be easily resolved . Before contacting the After-sales Service, check the following table to see whether you can resolve the problem yourself . If the problem persists, contact your nearest After-sales Service Centre . Read the safety instructions carefully before carrying out any of the following work PROBLEM... -
Page 18: Product Fiche
PRODUCT FICHE The product fiche with energy data of this appliance can be downloaded from the website docs.indesit.eu AFTER-SALES SERVICE BEFORE CONTACTING OUR AFTER- Check whether you can resolve the problem SALES SERVICE yourself using any of the measures described in the “Troubleshooting”... - Page 19 90°C...
- Page 20 89° max min 560 min 560 583+2...
- Page 21 400011128432...
