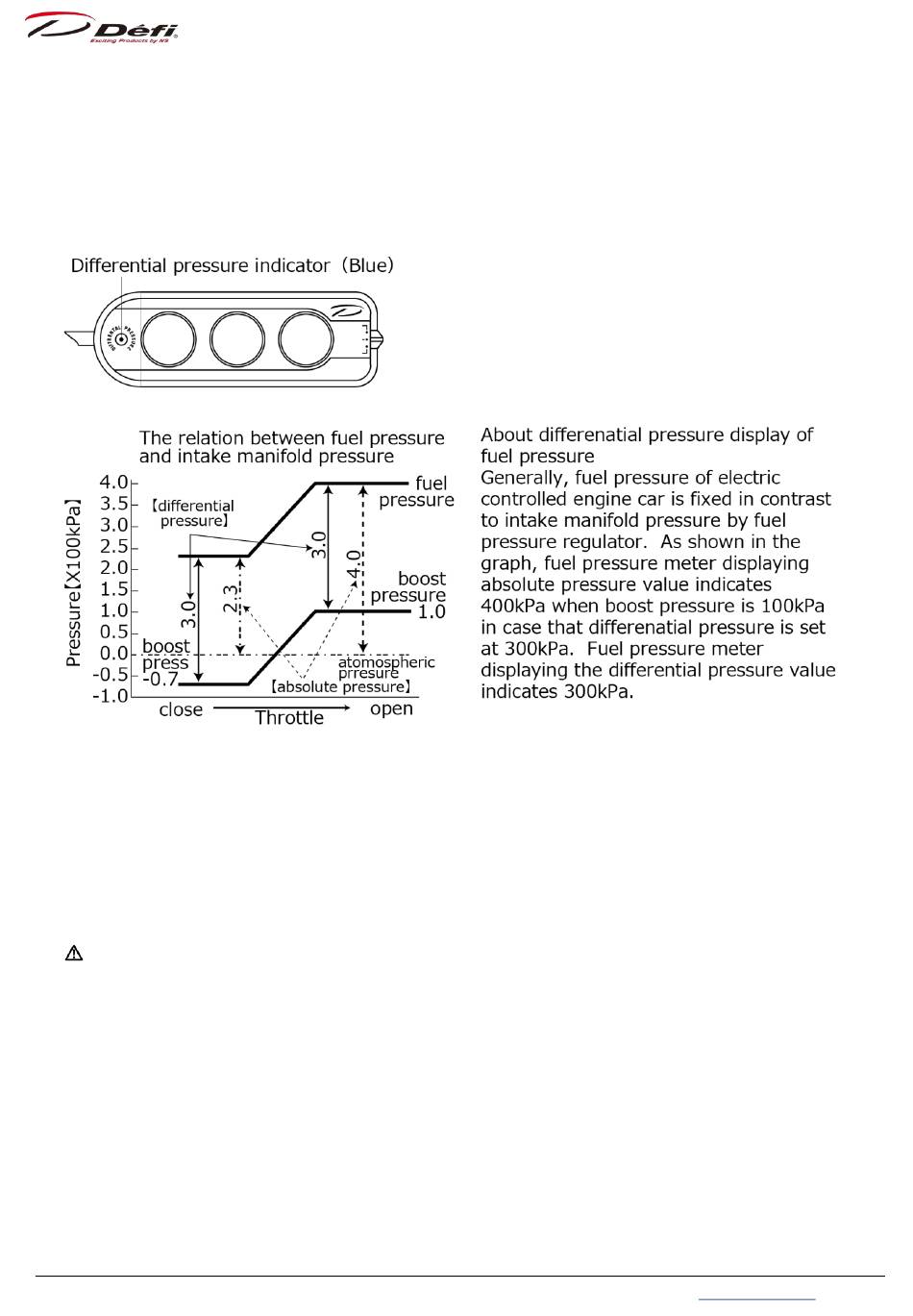

Differential pressure display

9.4.4.
If both of the turbo and the fuel pressure gauge are installed (both of the turbo and fuel
pressure sensors are installed in case of displays), the fuel pressure gauge can indicate the
differential pressure value between fuel pressure and intake manifold pressure. During Real
mode, the indicator of differential pressure on the switch unit is lighted up in blue.
1. Set the slide switch to 【UPPER】.
2. Press 【MIDDLE button】 and 【RIGHT button】 at the same time. The fuel pressure gauge
displays the differential pressure and the indicator of differential pressure on the switch
unit is lighted up. To cancel, press 【MIDDLE button】 and 【RIGHT button】 at the same
time again.
This function is not available for Turbo 3.0 gauge.

9.5. Setting mode for number of cylinders

Slide switch position : 【LOWER】
Set the number of cylinders if ADVANCE tachometer is installed.
Factory default setting: 4 cylinder
If displays are installed as well, settings for tachometer need to be done in the system
setup mode. The settings of displays are applied to other tachometers connected to the
