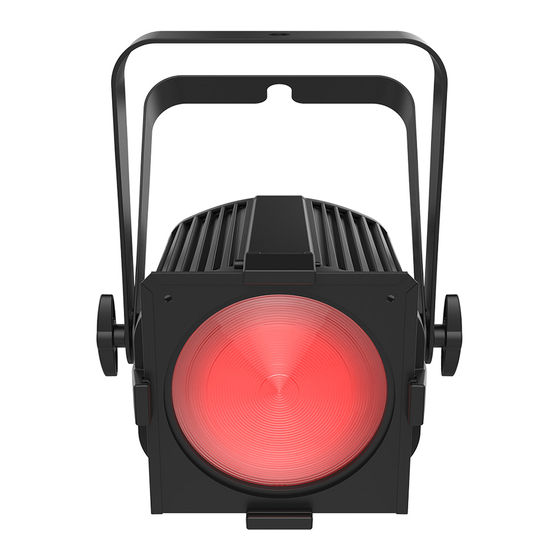

Summary of Contents for Chauvet DJ EVE P-160 RGBW
- Page 1 User Manual...
-
Page 2: Table Of Contents
Preset Color Mode ..................... Custom Color Mixing ..................Dimmer Speed Mode ..................Temperature....................... Master/Slave Mode (Wired) ................Master/Slave Mode (D-Fi USB)..............5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................EVE P-160 RGBW User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and EVE P-160 RGBW are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 15 EVE P-160 RGBW User Manual Rev. 1... -
Page 5: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Product Dimensions 8.6 in 220 mm 9.65 in 245 mm 12 in 305 mm EVE P-160 RGBW User Manual Rev. 1 Page 3 of 15... -
Page 6: Setup
3. Setup AC Power The EVE P-160 RGBW has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE P-160 RGBW may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
Temperature teMP Displays current product temperature in °C Configuration (DMX) The EVE P-160 RGBW works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The EVE P-160 RGBW is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 10: Dmx Channel Assignments And Values
101 Dimmer speed mode off Dimmer Speed Mode 152 Dimmer speed mode 1 (fast) 203 Dimmer speed mode 2 (medium) 255 Dimmer speed mode 3 (slow) Page 8 of 15 EVE P-160 RGBW User Manual Rev. 1... -
Page 11: 6-Ch
DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Automatic Programs To run the EVE P-160 RGBW in automatic mode, follow the instructions below: Press <MENU> repeatedly until P-- shows on the display. Press <ENTER>. -
Page 12: Preset Color Mode
Operation Preset Color Mode To run the EVE P-160 RGBW on a static color, follow the instructions below: Press <MENU> repeatedly until C-- shows on the display. Press <ENTER>. Use <UP> or <DOWN> to select a static color, from C 1–28:... -
Page 13: Temperature
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single EVE P-160 RGBW product (the “master”) to control the actions of one or more EVE P-160 RGBW products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in Slave mode. -
Page 14: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 EVE P-160 RGBW User Manual Rev. 1... -
Page 15: Technical Specifications
Channel Range 3- and 5-pin XLR 3, 4 or 9 Ordering Product Name Item Code UPC Number EVE P-160 RGBW 03031786 781462221348 UL 1573 CSA C22.2 No. 166 E113093 EVE P-160 RGBW User Manual Rev. 1 Page 13 of 15... -
Page 16: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 EVE P-160 RGBW User Manual Rev. 1... -
Page 17: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. EVE P-160 RGBW User Manual Rev. 1 Page 15 of 15...
