Summary of Contents for Chauvet DJ EVE E-100Z
- Page 1 User Manual...
-
Page 2: Table Of Contents
Configuration (Standalone) ................Dimmer....................... Strobe......................... Dimmer Speed Mode ..................Fan Mode ......................Master/Slave Mode (Wired) ................Master/Slave Mode (D-Fi USB)..............5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................EVE E-100Z V3 User Manual Rev. 2... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, D-Fi USB, and EVE E-100Z V3 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -

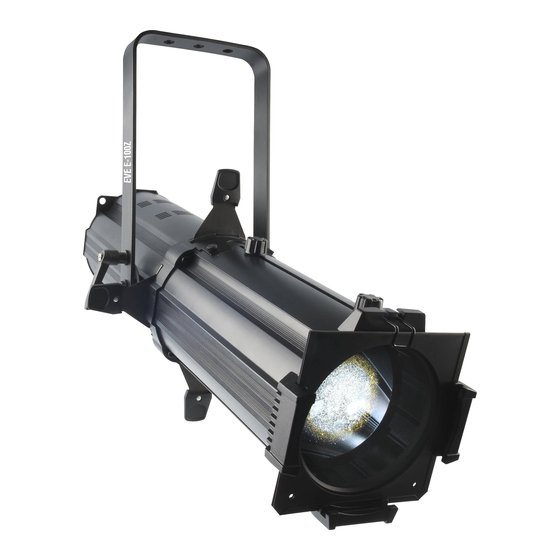

Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 14 EVE E-100Z V3 User Manual Rev. 2... -
Page 5: Introduction
Framing Shutter x4 Gel Frame Gel Frame Holder WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. EVE E-100Z V3 User Manual Rev. 2 Page 3 of 14... -
Page 6: Product Dimensions
NTRODUCTION Product Dimensions 16.9 in 430 mm 7.2 in 183 mm 24 in 611 mm Page 4 of 14 EVE E-100Z V3 User Manual Rev. 2... -
Page 7: Setup
ETUP AC Power The EVE E-100Z V3 an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE E-100Z V3 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
AUTO Fan speed according to product temperature Fan always on Configuration (DMX) The EVE E-100Z V3 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 10: Configuration (D-Fi Usb)
PERATION Configuration (D-Fi USB) Set the DMX Personality and DMX address on the EVE E-100Z V3. Use the Chart provided to set BOTH: • the Channel, and then • The Receiving or Transmitting option NOTE: DIP Switch 5 is for Transmitting OR Receiving, please choose carefully. -
Page 11: Dmx Channel Assignments And Values
Press <ENTER> to save the value. Press <MENU> to exit the mode. Dimmer Speed Mode To set the dimmer speed mode of the EVE E-100Z V3, follow the instructions below: Press <MENU> repeatedly until dIM shows on the display. Press <ENTER>. -
Page 12: Master/Slave Mode (Wired)
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single EVE E-100Z V3 product (the “master”) to control the actions of one or more EVE E-100Z V3 products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in Stand-Alone mode, while the slave (receiver) products will be set to operate in Slave mode. -
Page 13: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. EVE E-100Z V3 User Manual Rev. 2 Page 11 of 14... -
Page 14: Technical Specifications
EMPERATURE OOLING YSTEM 104 °F (40 °C) Fan-assisted convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 1 or 3 Ordering UPC N RODUCT UMBER EVE E-100Z V3 03051188 781462215361 Page 12 of 14 EVE E-100Z V3 User Manual Rev. 2... -
Page 15: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). EVE E-100Z V3 User Manual Rev. 2 Page 13 of 14... -
Page 16: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Fol- low the instructions to request support or to return a product. Visit our website for contact details. Page 14 of 14 EVE E-100Z V3 User Manual Rev. 2...
