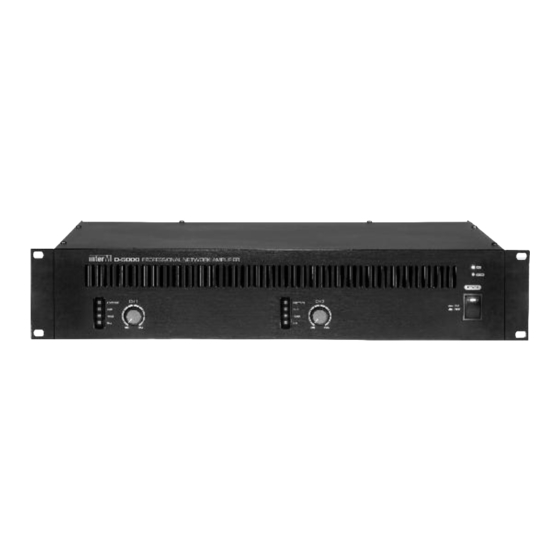

- Page 1 Operation Manual Professional Network Amplifier D 6000...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Contents Unpacking ............................2 Installation environment............................2 Important safety Instructions......................2 Features ............................3 Front Panel ............................4 Rear Panel ............................5 Installation Precautions ......................... 7 Applications ............................ 8 Block Diagram ..........................10 Specifications ..........................11 Service ............................13 Warranty ............................13 D-6000... -
Page 4: Unpacking
ProfessIonAl netWork AMPlIfIer Unpacking Unpacking Although your D-6000 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
- Webpage (CGI) control & Monitoring Via tCP/IP ethernet network, adjustments and monitoring of DsP is possible from remote location. * Please download the Webpage operation methods from the Inter-M homepage(international.inter-m.net/en). - Complete Protection Circuits Complete circuit protection is activated in case of amplifier overheating, output shorting, overload, over power and DC output. -
Page 6: Front Panel
ProfessIonAl netWork AMPlIfIer Front Panel Front Panel D-6000 1. ACT, STBY ACt leD : this leD turns on when power switch is pressed. the device is operable when this leD is on. stBY leD : this leD turns on when AC power cord is connected. the device is standby when this leD is on. -
Page 7: Rear Panel
4. WAN PORT (Web Control Port) Use rJ-45 jack to connect to etHernet terminal to control parameters of the DsP ※ firmware and the operating manual for the GUI, please download from our website(international.inter-m.net/en). functions. Use DIreCt cable. [Default Value] stAtIC IP: 192.168.1.99... - Page 8 If unbalanced cable us used, use only in a short distance between the devices as unbalanced cables are prone to noise in the line. And if balance jack is used as unbalanced jack connection, please refer to the diagram below. Xlr JACk D-6000...
-
Page 9: Installation Precautions
Rear Exhaust Front air intake (Rear) Fully Open CONTROL PRIMARY SECONDARY RST. 2. When using power amplifier, please install the unit where there is no airflow block to the heat sink. (Front) 10cm or less, (away more than10cm.) (Front) D-6000... -
Page 10: Applications
ProfessIonAl netWork AMPlIfIer Applications Applications Analog Audio Input Diagram WR-A92L(WIRELESS MIC) CDR-01(CD PLAYER) WB-A91L WH-A91L (WIRELESS MIC) (WIRELESS MIC) MD-505(MIC) IMX-416 (AUDIO MIXING CONSOLE) D-6000(DANTE DIGITAL AMP) D-6000(DANTE DIGITAL AMP) NLA-18S NLA-18S NLA-8 NLA-8 AUDIO(MIC/LINE) AUDIO(LOW/HIGN-Z) D-6000... - Page 11 ProfessIonAl netWork AMPlIfIer Applications Applications network Audio Input Diagram IMX-416 (AUDIO MIXING CONSOLE) WR-A92L(WIRELESS MIC) CDR-01(CD PLAYER) MD-505(MIC) DASR-288 (DANTE AUDIO CONTROLLER) NETWORK D-6000(DANTE DIGITAL AMP) D-6000(DANTE DIGITAL AMP) D-6000(DANTE DIGITAL AMP) NLA-18S NLA-18S CSQ-12K NLA-8 NLA-8 CSQ-12K AUDIO(MIC/LINE) AUDIO(LOW/HIGN-Z) D-6000...
-
Page 12: Block Diagram
ProfessIonAl netWork AMPlIfIer Block Diagram Block Diagram D-6000... -
Page 13: Specifications
ProfessIonAl netWork AMPlIfIer Specifications Specifications D-6000 8Ω per channel, stereo 1200W rated output (stereo) 4Ω per channel, stereo 2400W Input sensitivity (rated output power@8Ω) 2Vrms Voltage Gain (rated output power@8Ω) 34dB frequency response 20Hz ~ 20kHz, 0dB ±3dB tHD (1/3 rated output power @8Ω) less than 0.1%... - Page 14 ProfessIonAl netWork AMPlIfIer ※ DIMENSIONS D-6000...
-
Page 15: Service
Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, ltd. (korea) began operations in 1983. since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (oeM).
