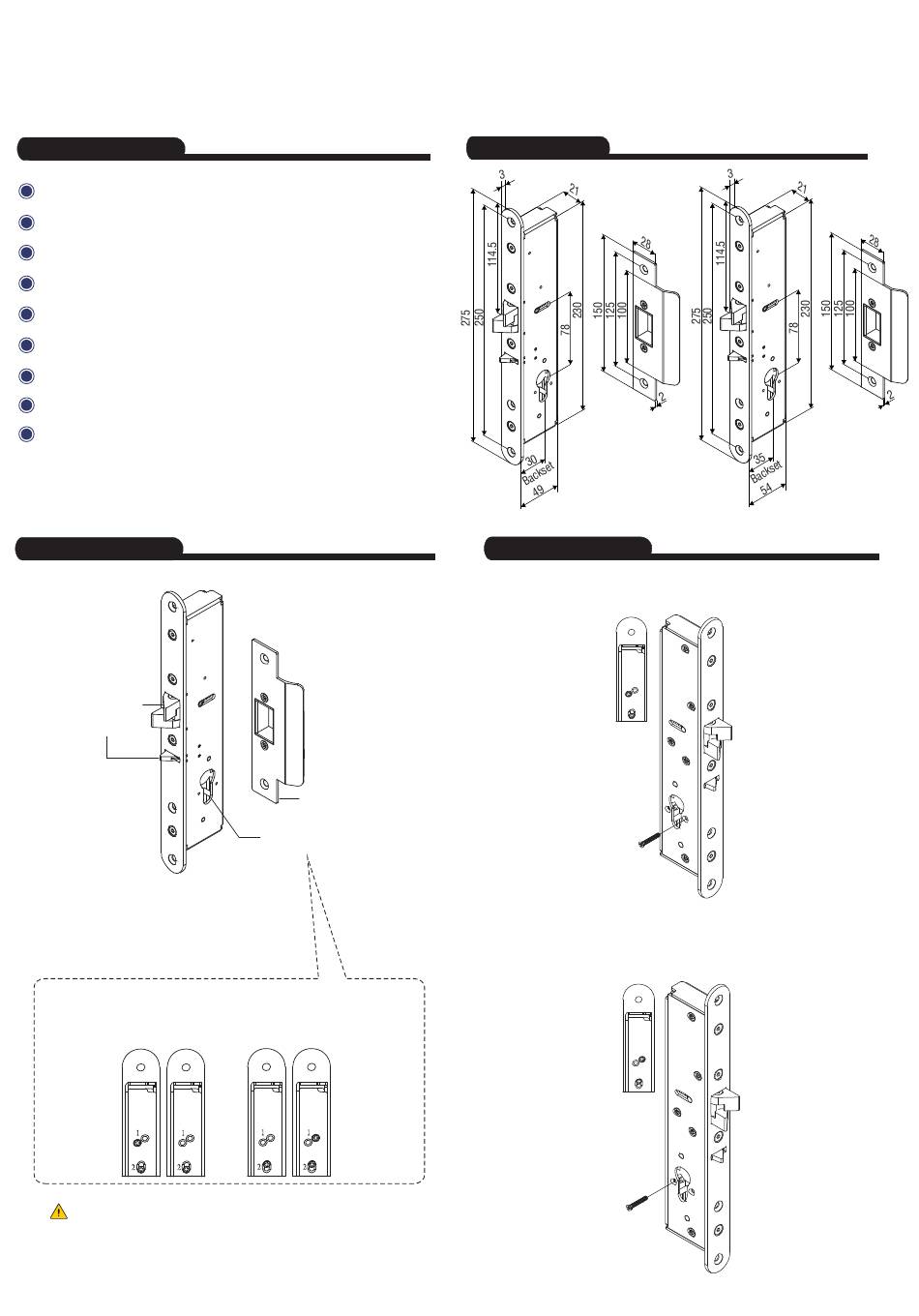

Table of Contents

ML-605M Series Electro-Mechanical Lock

Specification

Operating Voltage: 12~24VDC/AC ±10%
Current Draw: 250mA/12VDC; 150mA/24VDC
Operating Temperature: 14°F to 120°F (-10°C~+49°C)
Humidity: 0~85% non-condensing
Version Changeable: Fail-safe or Fail-secure
Lock bolt sensor switch output: SPDT, 3A/125VAC
Latch Throw:16mm
Solenoid testing: Tested to 250,000 cycles
Backset:
ML-605M-30: 30mm
ML-605M-35: 35mm

Packing Contents

Lock Bolt
Nib
Version Changeable:
Take out the Screw 1 , release screw 2 , move the
position and then tighten both screws.
"Fail-Safe"
(Power to Lock)
Caution:
Do not completely remove screw 2 (as marked in the figure)
as the interior solenoid might fall off.
Installation Instruction
Strike Plate
Euro profile
key cylinder hole
"Fail-Secure"
(Power to Open)
Copyright © All Rights Reserved. P-MU-ML-605 Published: 2022.08.10
Dimension
ML-605M-30

Stud Bolt Position

For fail-safe mode
For fail-secure mode
1
2
Unit: mm
ML-605M-35
3 - 1
