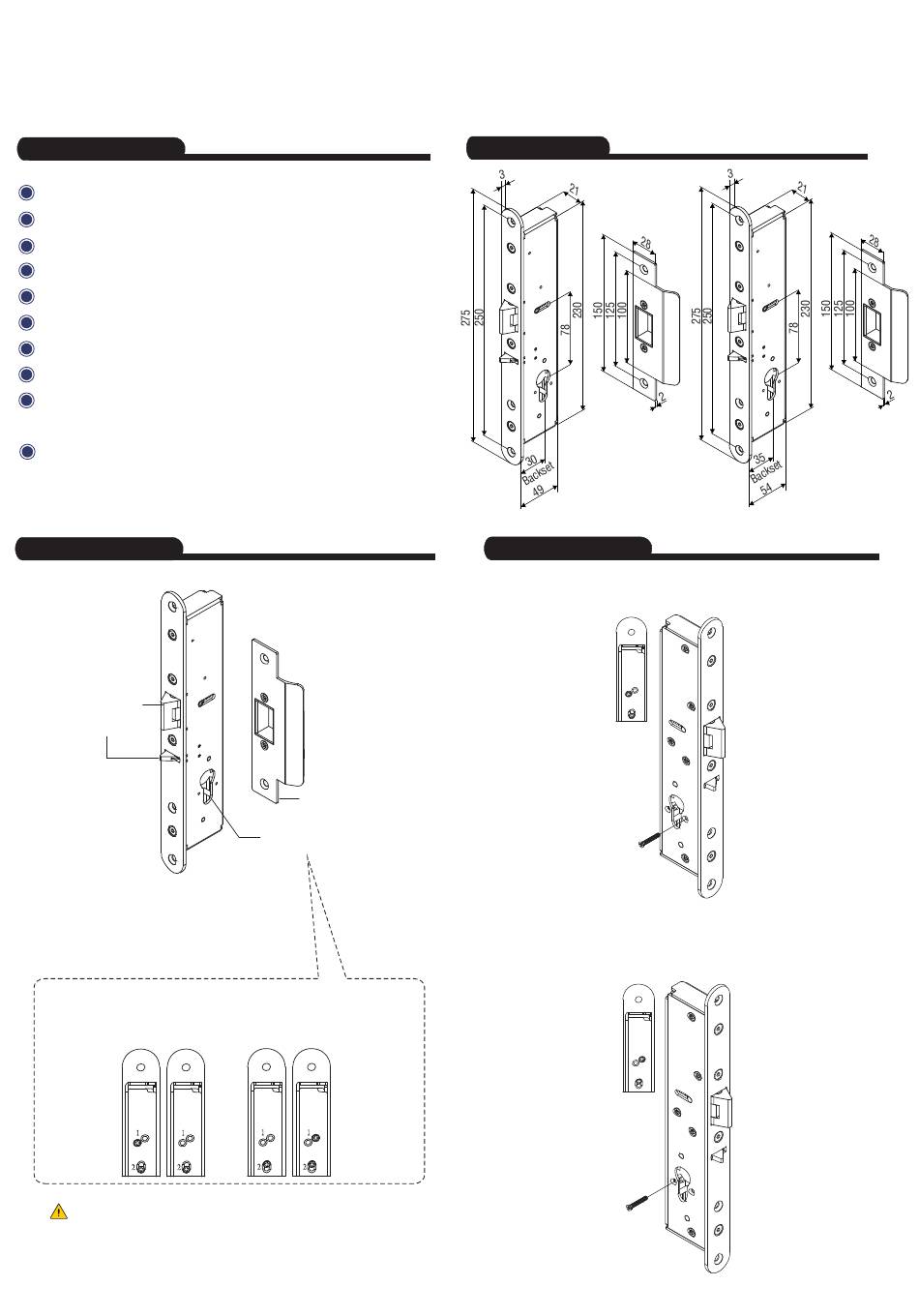

ML-655 Series Electro-Mechanical Lock
Specification
Operating Voltage: 12~24VDC/AC ±10%
Current Draw: 250mA/12VDC; 150mA/24VDC
Operating Temperature: 14°F to 120°F (-10°C~+49°C)
Humidity: 0~85% non-condensing
Version Changeable: Fail-safe or Fail-secure
Lock bolt sensor switch output: SPDT, 3A/125VAC
Latch Throw:13mm
Solenoid testing: Tested to 250,000 cycles
Resistance against door being forced :
1500 lbs (static force); 70 ft-lbs (dynamic force)
Backset:
ML-655M-30: 30mm
ML-655M-35: 35mm
Packing Contents
Lock Bolt
Nib
Version Changeable:
Take out the Screw 1 , release screw 2 , move the
position and then tighten both screws.
"Fail-Safe"
(Power to Lock)
Caution:
Do not completely remove screw 2 (as marked in the figure)
as the interior solenoid might fall off.
Installation Instruction
Strike Plate
Euro profile
key cylinder hole
"Fail-Secure"
(Power to Open)
Copyright © All Rights Reserved. P-MU-ML-655 Published: 2020.12.07
Dimension
ML-655M-30
Stud Bolt Position
For fail-safe mode
For fail-secure mode
1
2
Unit: mm
ML-655M-35
3 - 1
