Page 1

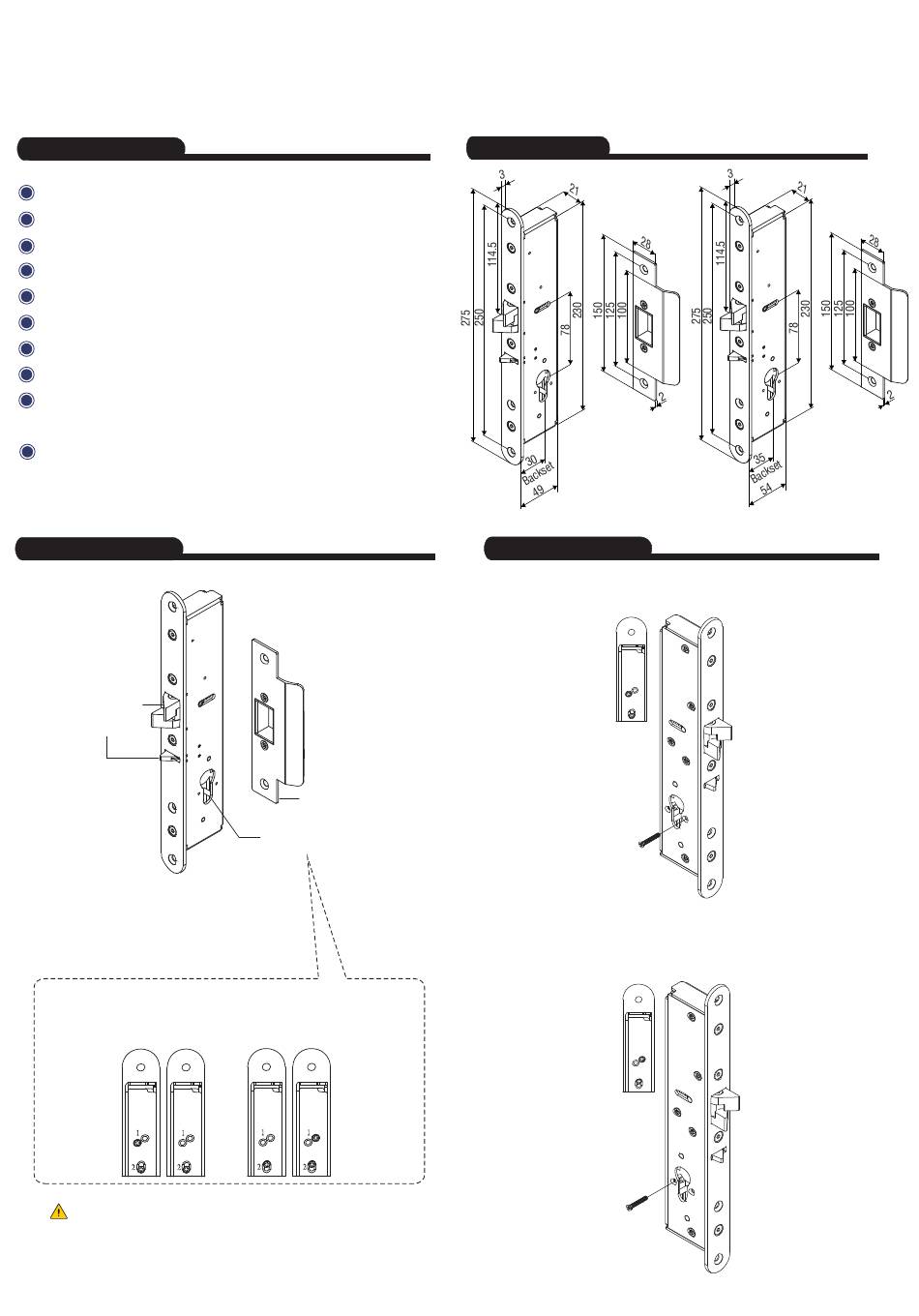

ML-605M Series Electro-Mechanical Lock Installation Instruction Unit: mm Dimension Specification Operating Voltage: 12~24VDC/AC ±10% Current Draw: 250mA/12VDC; 150mA/24VDC Operating Temperature: 14°F to 120°F (-10°C~+49°C) Humidity: 0~85% non-condensing Version Changeable: Fail-safe or Fail-secure Lock bolt sensor switch output: SPDT, 3A/125VAC Latch Throw:16mm...
Page 2
Installation Instructions 62mm cylinder for max •42mm door leaf 72mm cylinder for max •52mm door leaf Unit:mm Door Loop (Optional) Ø5.2 Ø5.2 The door loop protects the wiring from damage at the door hinge. Attention! Please ensure that the direction of the template is correct ø5.2 Alignment CL...
Page 3
Wiring Diagram For the 12~24VDC/AC operation only Access Control 12~24VDC/AC N.C. contact (Fail-safe mode) (Power input is polarity free) N.O. contact (Fail-secure mode) Varistor Yellow Green Blue Lock bolt sensor switch output: SPDT, 3A/125VAC NOTE: The varistor (or diode) must be connected across the terminals as shown above. This protects the electromechanical lock from spikes and surges.
