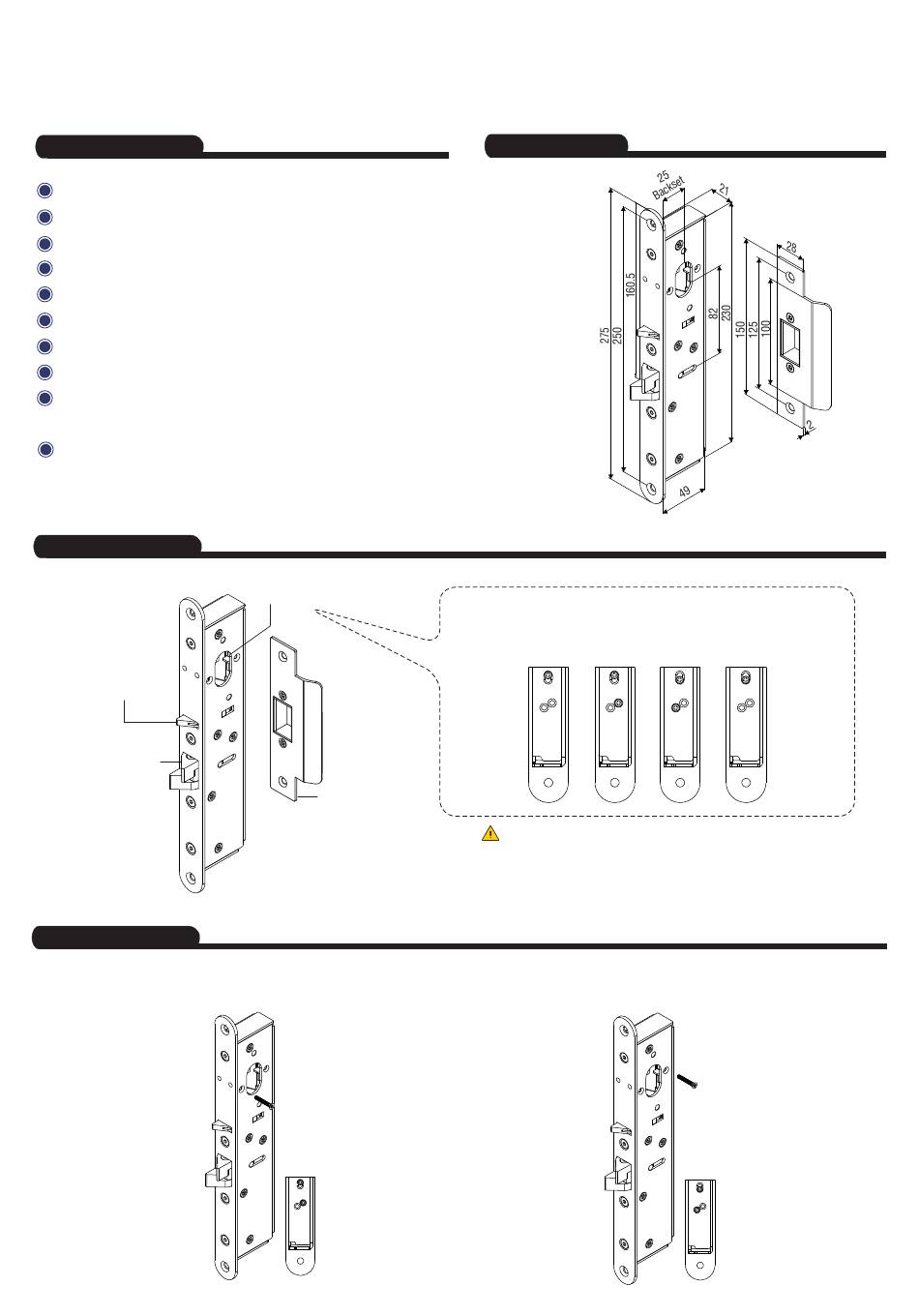

ML-705M Series Electro-Mechanical Lock
Specification
Operating Voltage: 12~24VDC/AC ±10%
Current Draw: 250mA/12VDC; 150mA/24VDC
Operating Temperature: 14°F to 120°F (-10°C~+49°C)
Humidity: 0~85% non-condensing
Version Changeable: Fail-safe or Fail-secure
Lock bolt sensor switch output: SPDT, 3A/125VAC
Latch Throw:16mm
Solenoid testing: Tested to 250,000 cycles
Resistance against door being forced :
1500 lbs (static force); 70 ft-lbs (dynamic force)
Backset: 25mm
Packing Contents
Nib
Lock Bolt
Stud Bolt Position
For fail-safe mode
Installation Instruction
Australian profile
key cylinder hole
Strike Plate
2
1
Copyright © All Rights Reserved. P-MU-ML-705 Published: 2020.12.07
Dimension
Version Changeable:
Take out the Screw 1 , release screw 2 , move the
position and then tighten both screws.
"Fail-Safe"
2
2
(Power to Lock)
1
1
Caution:
Do not completely remove screw 2 (as marked in the figure)
as the interior solenoid might fall off.
For fail-secure mode
Unit: mm
2
2
"Fail-Secure"
(Power to Open)
1
1
2
1
3 - 1
