Sunbeam PB8080 - Two-Way Blender Manual

Sunbeam's Safety Precautions

  • Ensure fingers are kept well away from the blades when in use.
  • Do not blend warm/hot ingredients. Always cool ingredients to room temperature before blending. Hot/warm ingredients can eject out of the jug when a sudden steaming is caused.
  • Always operate on a flat surface.
  • Ensure the control dial is in the 'off' position before plugging into the power outlet.
  • Take care when removing the jug from the base, emptying the bowl/jug or during fitting and removal of blade system, as blades are extremely sharp.
  • Warn of potential injury from misuse
  • Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

  • Read carefully and save all the instructions provided with an appliance.
  • Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
  • Turn the power off and remove the plug when the appliance is not in use and before cleaning.
  • Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
  • Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The temperature of accessible surfaces may be high when the appliance is operating.
  • Never leave an appliance unattended while in use.
  • Do not use an appliance for any purpose other than its intended use.
  • Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
  • Do not place on top of any other appliance.
  • Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
  • Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
  • For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
  • Do not immerse the appliance in water or any other liquid unless recommended.
  • Appliances are not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

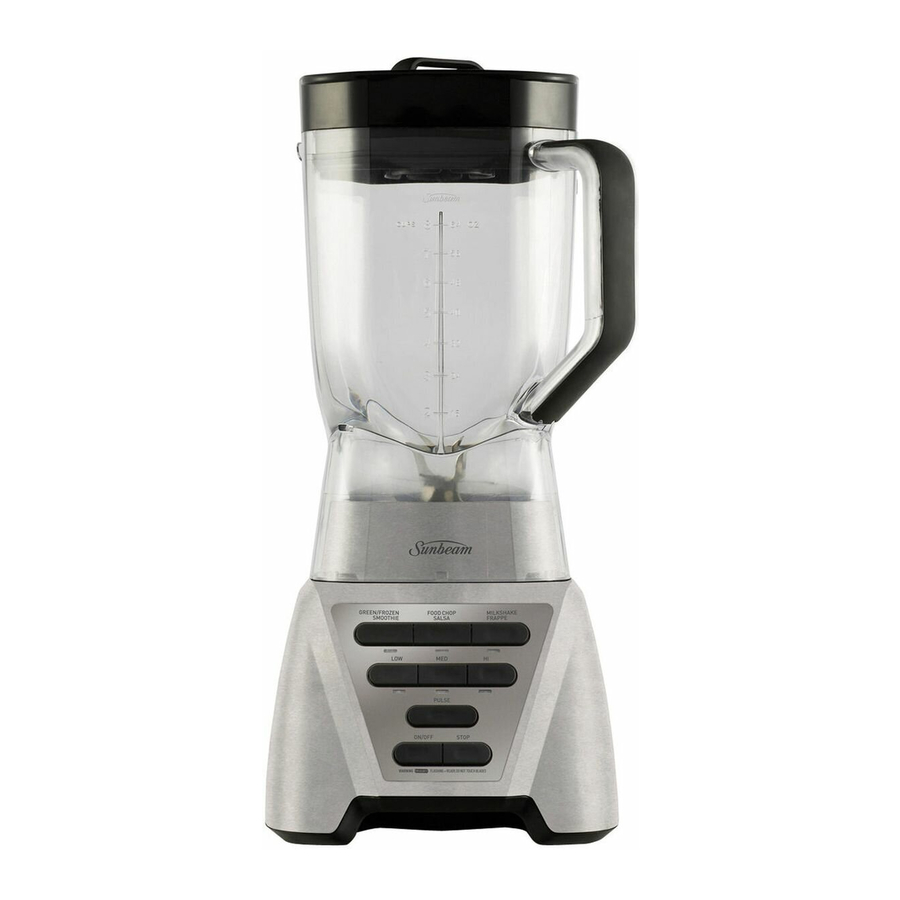

Features Of Your Two-Way Blender

Features Of Your Two-Way Blender

  1. Ingredient Cup
    Handy 50ml ingredient cup. Can also be used to unscrew the blade assembly from the base of the jug.
  2. Jug Lid With Pouring Hole
    Pouring hole allows you to easily add ingredients during blending, without removing the lid.
  3. 2L BPA Free Tritan™ Jug
    The BPA free jug is constructed of Tritan material which is impact resistant and withstands cracking in the dishwasher for hundreds of cycles. It is also heat, stain and scratch resistant and is lightweight for easy use.
  4. Detachable Blade Assembly
    The detachable blade assembly unit unscrews from the Tritan blending jug for convenient and thorough cleaning.
  5. Extra Wide 9cm Reversible Blade System
    Specially designed for extra durability, the heavy-duty, stainless steel blade changes the direction of the blade motion to make sure all food gets drawn into the vortex, so no food gets left behind.
  6. Powerful 1100 Watt Motor
    Powerful motor for the most demanding blending tasks.
  7. 7 Speed Control
    This blender has a speed for every need from LOW to HI to PULSE. It also includes 3 pre-programmed recipes GREEN/FROZEN SMOOTHIE, FOOD CHOP/SALSA and MILKSHAKE/FRAPPE.
  8. Non-Slip Feet

The Control Panel

The Control Panel
PULSE

  • Ice cubes
  • Meat
  • Breadcrumbs
  • Biscuits
  • Finely ground nuts
  • Chocolate
  • Self cleaning the unit

GREEN/FROZEN SMOOTHIE

FOOD CHOP/SALSA

MILKSHAKE/FRAPPE

LOW

  • Whipping cream
  • Pureeing vegetables and fruit

MED

  • Mayonnaise/Salad dressings
  • Cake batters

HI

  • Hummus
  • Soups

Before Using Your Two-Way Blender


Always ensure your blender is unplugged from the power outlet before fitting or removing the blade assembly. Always handle the blade assembly with caution, as the blades are extremely sharp.
Before using your Two-Way Blade Blender, we recommend removing the six-blade system for thorough cleaning.

To Remove The Six Blade System In The Glass Jug

Unscrew the blade system from the jug, using the inner measuring cup from the lid and turning anti-clockwise. Remove the silicone rubber seal from the blade assembly. Wash the lid, jug, silicone rubber seal and the blade assembly in warm soapy water.

Note: When removing the blade assembly from the jug you may need to slightly tilt the blade so that it slides out easily.

Jug Assembly

  1. Install the sealing ring over the blade.
  2. Turn the jug upside down and place it on a flat and stable surface.
  3. Turn the blade with sealing ring upside down and place into the bottom of the jug.
    Jug Assembly
  1. Install the threaded jug bottom over the blade assembly. Turn clockwise to tighten. Be sure the threaded jug bottom is tightened to the jug before using.
  2. Choose a recipe from the recipes provided.
  3. Put the ingredients into the jug.
  4. Secure the lid and filler cap.
  5. Slide the jug onto the base.

Note: The blender jug will leak if the six blade system is not assembled correctly.
Note: Do not attempt to remove the stainless steel blades from the blade assembly.
Note: The appliance will start only if the jug is correctly positioned on the motor base.

Interlock

The unit is supplied with an interlock on the base. This will prevent the motor or the control panel from starting if the blender jug is not properly placed on the base. If the jug is removed from the base during operation the unit will stop, and Med LED and High LED will keep blinking fast. To restart the blender, turn off the blender by pressing ON/OFF button, place the jug on the blender base and select the preferred speed to begin again.

Note: The filler cap can be used as a tool to tighten or remove the threaded jug bottom.
The filler cap can be used as a tool

A Guide To Your Two-Way Blender

Pre-Programmed Functions

  1. Press the ON/OFF button to turn the blender on. The On indicator light will flash. The light will come on, and remain on when the motor is running.
  2. Press the desired function button:
    • GREEN/FROZEN SMOOTHIE
    • FOOD CHOP/SALSA
    • MILKSHAKES/FRAPPE
      The corresponding function light will come on, and remain on until the program is finished.
  3. To change your selection, press the STOP button followed by another function button.
  4. When the program is finished, the motor automatically stops. You can press the Stop button at any time to cancel the program. The On indicator light will flash, showing that the blender is ready to use.

Speed Functions

Your blender has three speeds: LOW, MED and HI (1, 2 and 3). You can use these functions for personal recipes or to continue blending after a pre-programmed function is finished.

  1. Press the ON/OFF button to turn the blender on. The On indicator light will flash. The light will come on, and remain on when the motor is running.
  2. Press the desired speed button to start blending. The corresponding speed light will come on, and remain on until you press the STOP button.
  3. Press the STOP button to cancel processing at any time.

Pulse Function

Use the pulse function to crush ice or chop food.

  1. Press the ON/OFF button. The On indicator light will flash.
  2. Press and hold the PULSE button. The pulse function operates only as long as the PULSE button is held down.
  3. Release the PULSE button to stop.

Note: The appliance will start only if the jug is correctly positioned on the motor base.

Handy Blending Hints

  • Nothing can beat a blender for making smooth purees and sauces or for whipping up frothy drinks - from healthy breakfast shakes to frozen daiquiris.
  • Use your blender for chopping small amounts of food like nuts, bread crumbs and whole spices.
  • Turn any oil-based salad dressing into a creamy style dressing by blending it until slightly thickened.
  • Food items for blending should be cut into cubes (approximately 2-3cm), this will assist in achieving an even result.
  • Ensure the lid is firmly and securely placed on the jug. Do not operate the blender without the lid on, if you wish to add any additional ingredients remove the ingredient cup and add as necessary.
  • Never fill above the maximum level indicator 2L. When blending very liquid substances do not fill the jug above 1.5L to avoid spilling.
  • To ensure efficient mixing when blending dry mixtures, it may be necessary to stop the blender and push ingredients down the sides of the jug with a spatula.
  • When pureeing fruit or vegetables, cooked or raw, cut into small pieces to facilitate blending.
  • When making bread crumbs, use 2 to 3 day old bread, leaving crusts on, to minimise the possibility of clumping. If only fresh bread is available, dry it out for a few minutes in a low heated oven.
  • When blending a variety of ingredients together, blend the liquids first, then add dry ingredients.
  • Always ensure stones are removed from fruit and bones from meat as these can harm the blades.
  • Don't allow a used blender to sit for too long as the food will dry onto the blades, making it very difficult to clean. If you can't clean the blender straight away, pour some warm water in it and allow to soak.
  • Do not process hot/warm liquids in your blender. Allow to cool to room temperature before blending.
  • Select the FOOD CHOP/SALSA function for recipes that require a fine chop.

Care And Cleaning

Quick Cleaning Method

Half fill the blender with warm water and a small amount of detergent. Press the PULSE button for 10-20 seconds. Then remove the jug and rinse it under running water.

For Thorough Cleaning

Turn the blender jug upside down. Unscrew the blade assembly from the jug by placing the open end of the ingredient cap at the base of the blade assembly. Use the grooves on the opening of the ingredient cap to align the cap to the base of the jug. Turn the ingredient cap in an anti-clockwise direction to remove the blade assembly. Remove the rubber seal from the blade assembly. Wash the blender lid, ingredient cup, rubber seal, blade assembly and blender jug in warm soapy water.


Take care when cleaning the blades as they are extremely sharp.
Note: The jug, blade, seal, locking ring, lid and feeder cap may be washed in a dishwasher.

To Clean The Motor Base

Use a damp, soft sponge with mild detergent and wipe over the motor base.
Note: Never immerse the motor base in water.
